1/4" 304SS 9-24V 2 Setup U.S. Solid Motorized Ball Valve- NSF Certified Ball Valve with Full Port, AC/DC and Wire Auto

U.S. Solid Motorized Ball Valve- 1/4" NSF Certified 304SS Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup

1/4" 304SS 9-24V 2 Setup U.S. Solid Motorized Ball Valve- NSF Certified Ball Valve with Full Port, AC/DC and Wire Auto

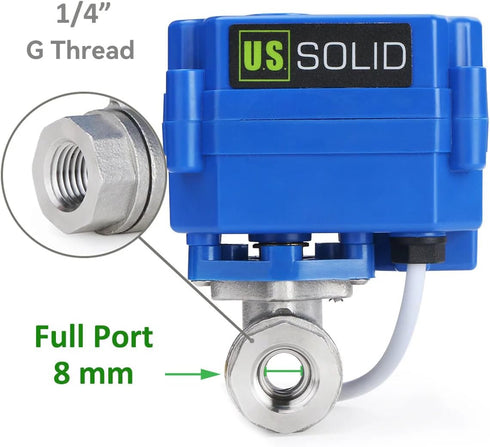

Motorized ball valves offer an energy-efficient alternative to solenoid valves, especially for prolonged positioning. They mainly consume energy during opening and closing, with negligible amounts once fully opened. This allows for permanent connection without the risk of overheating or burning out. This valve comes in stainless steel. It is 1/4 in diameter, and is full port. This means the diameter of the opening in the ball is a full 1/4. If you are using this for a system where pressure is important, or with mixed materials, where restrictions on flow can lead to the separating of the material, a full-bore ball valve is your best option. These valves are not intended for situations where fast action closing or opening is needed, as they do take a few seconds to fully open and close. DC: Connect the yellow wire to the negative pole(-). The valve will open when the red wire is connected to the positive pole(+), and close when the blue wire is connected to the positive pole(+). Disconnecting any wire will maintain the valve's current state. AC: Connect the yellow wire to any pole. The valve will open when the red wire is connected to the other pole, and close when the blue wire is connected to the other pole. Disconnecting any wire will maintain the valve's current state. Meticulously tested and performance-rated parts ensure quality. With a lifespan of up to 100,000 cycles, the valve operates in 3-5 seconds; higher voltage enables quicker opening and closing. The robust 2Nm torque in the stem, often overlooked, is crucial for enduring serious torque without failure. This motorized ball valve features standard NPT threading, commonly used in U.S. piping. The tapered threading enhances connection sealing, requiring pipe thread tape for installation. Meticulously manufactured and tested, ensuring precise threading for straightforward installation. Apply pipe thread tape tightly to the male pipe end to facilitate a secure connection. Screw tightly into the valve to maintain a leak-free connection throughout its lifespan. What is the Waterproof Rating of this valve? The motor's housing is rated at IP65 for ingress protection. If permanently installed outdoors, it is recommended to place it under a shelter or in a protective box to prevent prolonged exposure to rain. For more details, please refer to Picture 1. What is the difference between N.C. (Normally Closed) and N.O. (Normally Open) ? In a N.C. valve, it's closed without power and opens when energized. Conversely, in a N.O. valve, it's open without power and closes when energized, blocking fluid or gas flow. For more details, please refer to Picture 2. What is the difference between Full Port and Standard Port? In a full port valve, the internal diameter of the valve is the same as the pipe it's connected to. In a standard port valve, the internal diameter of the valve is smaller than the pipe size. For more details, please refer to Picture 3. Can this be used for Drinking Water? YES. The motorized ball valve is made of lead-free stainless steel and is NSF certified. For auto return valves, what is the minimum On-Time required for electrical storage to enable closing when power off? To ensure automatic reset functionality when the power is disconnected, it is essential to power the device for approximately one minute to charge the capacitor in 2-wire auto return motorized ball valves. USS-MSV00027 USS-MSV00025 USS-MSV00077 USS-MSV00026 USS-MSV00028 Looking for a professional valve manufacturer? Look no further than U.S. Solid! With a wide range of valves to choose from, we have the perfect solution for all your needs. Our valves are crafted with high quality materials, ensuring durability and reliability. Trust U.S. Solid for all your valve requirements and experience the difference of working with a true industry leader. Visit the Store Founded by four PhD. students, our team combines expertise in spectroscopy, mechanical, and chemical engineering. We recognized the saturation of the market with overpriced, subpar laboratory equipment and decided to redefine excellence. At U.S. Solid, customer is our priority. We provide a 1-year or money-back promise, ensuring that our customers are happy. Trust our team of experts to deliver the quality and affordability you deserve.

Brand: U.S. Solid

fittings, ball valve, setup, port, setup industrial, solid, pneumatics plumbing, certified 304ss, 24v wire, certified, hydraulics pneumatics, scientific hydraulics Industrial & Scientific Hydraulics, Pneumatics & Plumbing Fittings Valves Ball Valves

Key Features

• ✓ SAFE AND RELIABLE Made from SS304 NSF Certified 304SS and NSF certified, this ball valve is safe for drinking water. It has a lifespan of 80,000 to 100,000 cycles.
• ✓ NPT THREADING " NSF Certified 304SS threading, manufactured and measured according to National Pipe Thread (NPT) standards. This standard-port electrical ball valve features a bore slightly less than , minimizing pressure lossideal for home automation projects.
• ✓ 9V-24V AC/DC Operates effectively across the entire voltage range; opens or closes the valve in 3-5 seconds. The limit switch reduces power consumption once the valve is fully open, making it ideal for projects requiring automatic return.
• ✓ 2-WIRE AUTOMATIC RETURN SETUP Simple two-wire connection; the valve largely de-energizes after opening and returns to fully closed if power is removed.
• ✓ ALTERNATIVE TO SOLENOID VALVES Automatically cuts off power once fully open or closed, reducing the risk of overheating. Ideal for projects requiring a valve to remain open for extended periods. OUTDOOR INSTALLATION TIP If permanently installed outdoors, it is recommended to place the valve under a shelter or inside a protective box to prevent prolonged exposure to rain.

Product Details

• ✓ Item Weight: 0.26 Kilograms
• ✓ Model Number: USS-MSV00027
• ✓ Material Type: Stainless Steel
