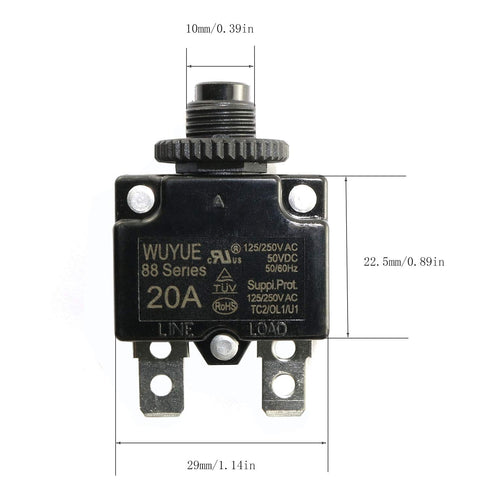

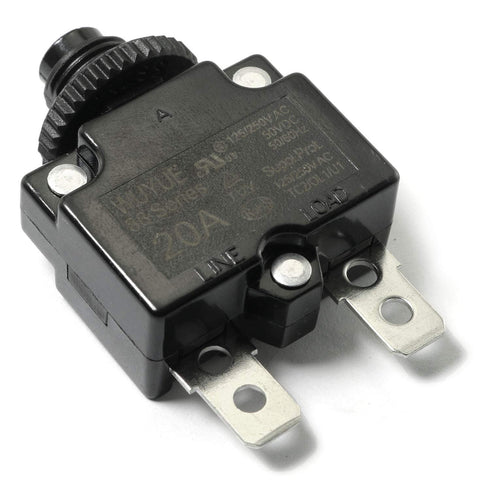

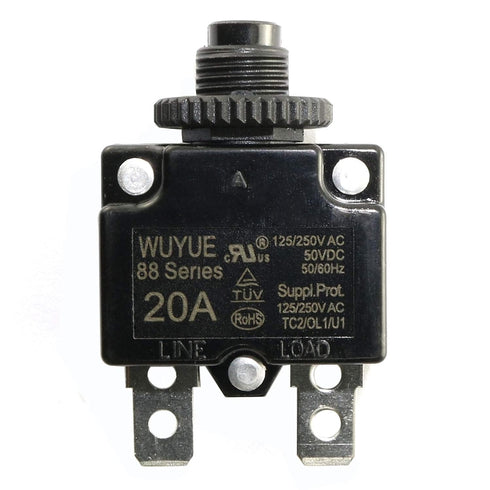

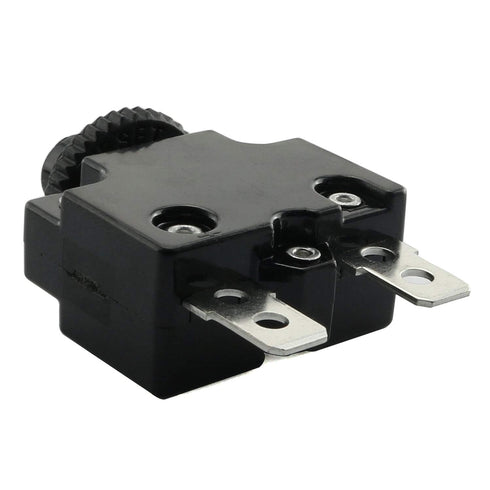

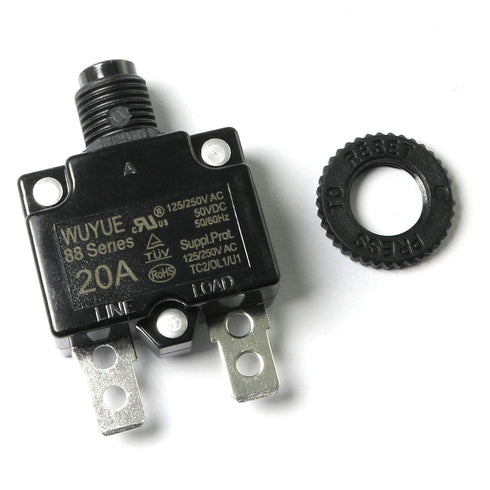

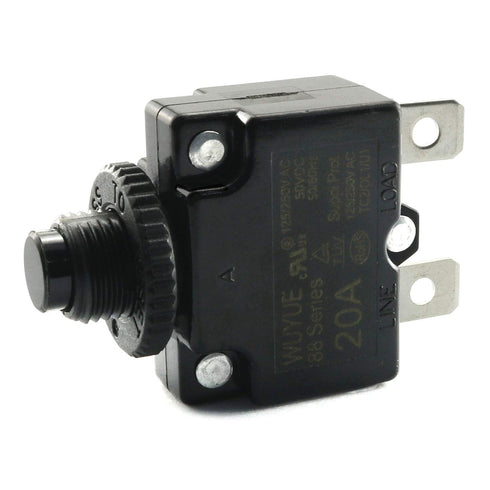

1-Pack Thermal Switch Circuit Breaker Overload Protector, 20A Mini Size Push Reset Button
SKU: PGABL1457561
VENDOR: RuiLing
You Save: $1.52 (10%)
Hurry! Only 10 Left in Stock!
Free Shipping Across the United States
All orders within the United States qualify for 100% free shipping.
Fast Processing & Dispatch
All orders are shipped within 1 business day after purchase.
30-Day Free Returns
Not satisfied? You can return your order for free within 30 days after delivery.
1-Pack Thermal Switch Circuit Breaker Overload Protector 20A Mini Size Push Reset Button Switch
1-Pack Thermal Switch Circuit Breaker Overload Protector, 20A Mini Size Push Reset Button
Specifications: Rated current: 20A Rated voltage: 125/250VAC 50VDC 50~60Hz Hi-Pot test: 1500V/min Overload current: 10 times of rated current Min voltage: less than 0.25V Reset time: in 60 seconds Insulation resistance: above 500VDC x 100mOhm Terminal temperature: 100% test under 25 degrees Celsius Temperature rise: below 25 degrees Celsius Life test: 125VAC x 150% rated current, 500 cycles Test standard(25 degrees Celsius): 100% rated current: No trip off 150% rated current: trip off in 1 hour 200% rated current: 5~25 seconds trip off 300% rated current: 1.6~4.8 seconds trip off Package includes: 1 piece thermal switch circuit breaker overload protector 20A
Key Features
- ✅ Rated current: 20A; Rated voltage: 125/250VAC 50VDC 50~60Hz
- ✅ Test standard(25 degrees Celsius): 100% rated current: No trip off 150% rated current: trip off in 1 hour 200% rated current: 5~25 seconds trip off 300% rated current: 1.6~4.8 seconds trip off
- ✅ Life test: 125VAC x 150% rated current, 500 cycles
- ✅ Overload current: 10 times of rated current
- ✅ Reset time: in 60 seconds
