100 Pcs P100-E2 Spring Test Probe, Brass Dia 1.5mm Contact Spring, Testing Pin Spring Contact Probe

100 Pcs P100-E2 Spring Test Probe, Brass Dia 1.5mm Contact Spring, Testing Pin Spring Contact Probe Conical Head Test Tools

100 Pcs P100-E2 Spring Test Probe, Brass Dia 1.5mm Contact Spring, Testing Pin Spring Contact Probe

Features: Spring test probes are necessary parts for PCB testing to access components on printed circuit assemblies. There are total 100Pcs spring test probes in one set that you can use for a long time. Cone shape head can be used for testing through-hole components. Widely used for testing PCB gold fingers(edge connectors) and pads. They are great replacement probes if you need to change broken or old test probes. Specification: P75-E2: head Shape: Cone Current Rating: 3A Resistance: 50mO Stroke: 6.5mm head Diameter: 1.5mm Probe Tube Diameter: 1.36mm Probe Rod Diameter: 0.99mm Probe Length: 33.3mm Boring Size: 1.7mm Min. Test Interval: 2.54mm Quantity: 100pcs P50-J1: head Shape: Round Current Rating: 3A Resistance: 50mO Stroke: 2.6mm Probe Tube Diameter: 0.68mm Probe Rod Diameter: 0.48mm Probe Length: 16mm Boring Size: 0.9mm Min. Test Interval: 1.27mm Quantity: 100pcs P100-E2: head Shape: Cone Current Rating: 3A Resistance: 50mO Stroke: 6.5mm head Diameter: 1.5mm Probe Tube Diameter: 1.36mm Probe Rod Diameter: 0.99mm Probe Length: 33.3mm Boring Size: 1.7mm Min. Test Interval: 2.54mm Quantity: 100pcs P50-B1: P50-B1 - 16mm Pin Centre: 0.68mm Min test distance: 1.27mm Spring Pressure: 75g Full Stroke: 2.65mm Current Rating: 3A Current Resistance: 50mm Plunger: Heat Treated Copper Barrel: Phosphor Bronze . Gold Plated Spring: stainless steel P75-B1: Specification:spring thimble Needle tube diameter: 1.02mm Needle bar diameter:0.74mm Pin Total Length: 15.8mm Drill size: 1.4mm; Minimum distance between test: 1.91mm Package Included: 100 x Probes

Key Features

• ✅ Test Component: The spring test probe is an essential probe kit for PCB conduction testing, used to contact components on printed circuit assemblies and to test for stability and durability

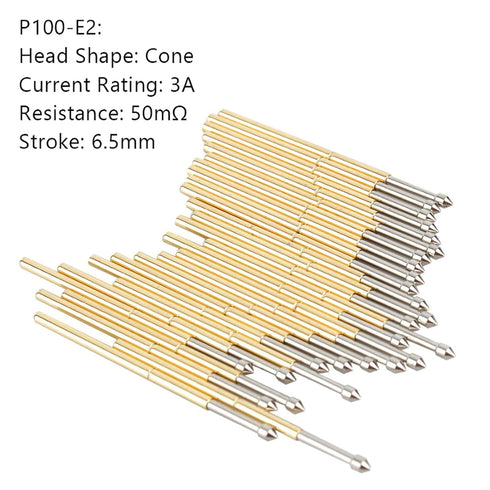

• ✅ Important Parameters: P100-E2 Tapered Head; Head Type: Tapered; Current Rating: 3A; Resistance: 50mO; Stroke: Probe Diameter: 1.5mm; Probe Tube Diameter: 1.36mm; Probe Rod Diameter: 0.99mm; Probe Length: 33.3mm; Bore Size: 1.7mm; Minimum Test Interval: 2.54mm. test interval: 2.54mm

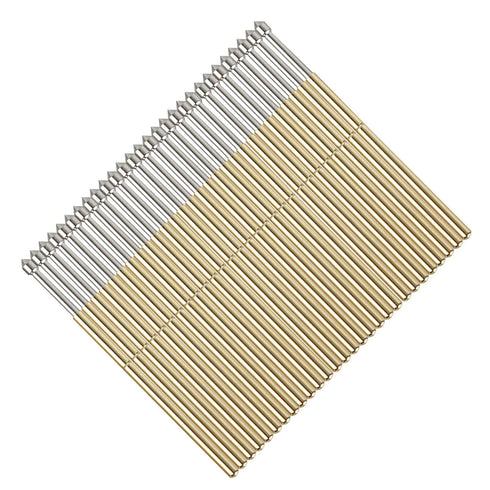

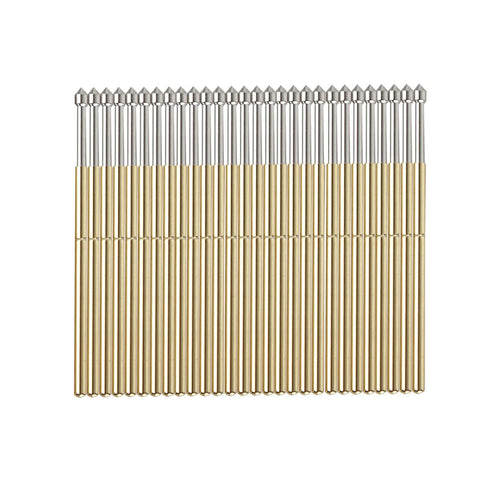

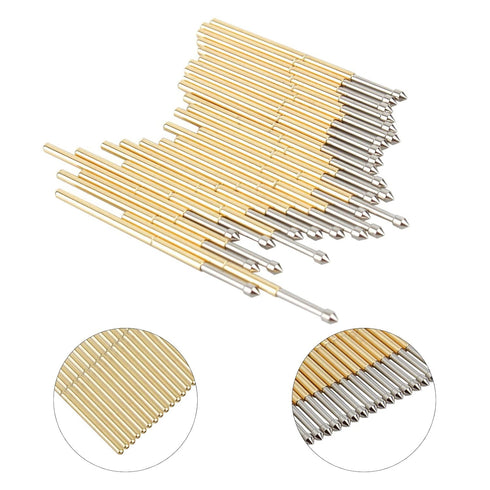

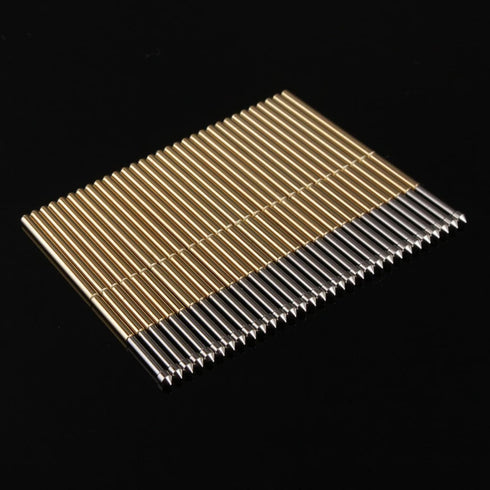

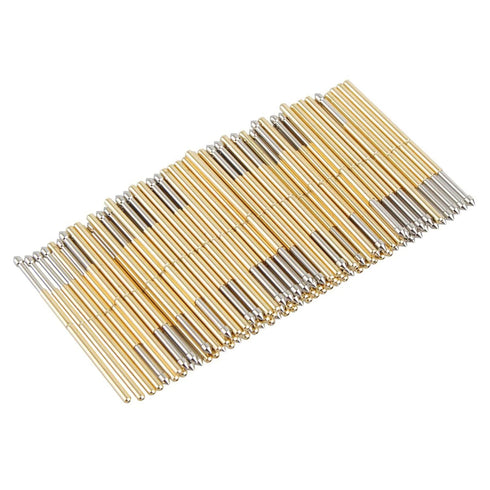

• ✅ Package Contains: 100 P100-E2 Tapered spring test probes. A set of 100 spring test probes for long term use, ideal replacement probes to extend the life of your test station

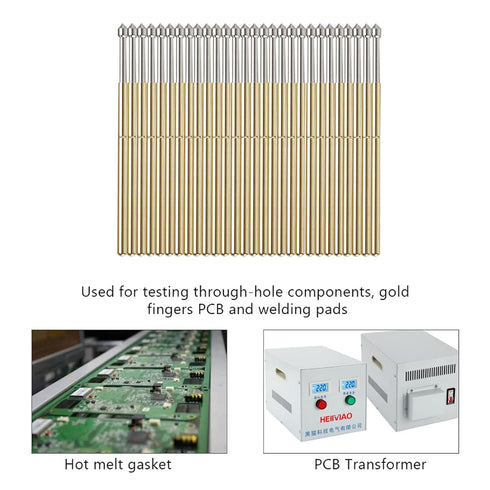

• ✅ Versatile: Contact spring pins are used for testing through-hole components, gold-finger (edge connector) PCBs, and pads
• ✅ Long Service Life: Spring test probes are made of high quality materials, heat-treated copper plungers, gold-plated phosphor bronze barrels and gold-plated stainless steel wire springs for good contact and durability
