10pcs 4 10mm 5050 RGB LED Strip Connector Pin LED Tape Connector LED Ribbon Quick Connector LED Rope Clip Connector

10pcs RGB LED Strip Connector 4 Pin LED Tape Connector LED Ribbon Quick Connector LED Rope Clip Connector Solderless Gapless Adapter Extension for 10mm Wide SMD 5050 Multicolor LED Strip

10pcs 4 10mm 5050 RGB LED Strip Connector Pin LED Tape Connector LED Ribbon Quick Connector LED Rope Clip Connector

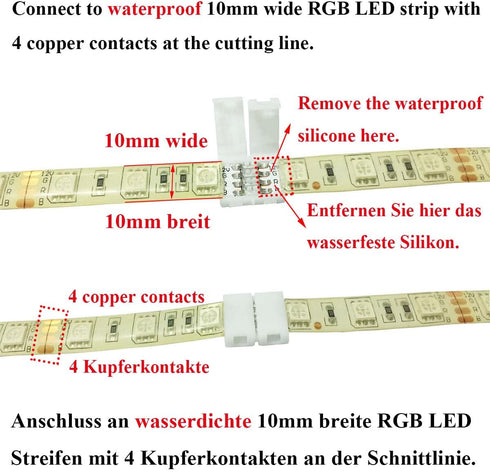

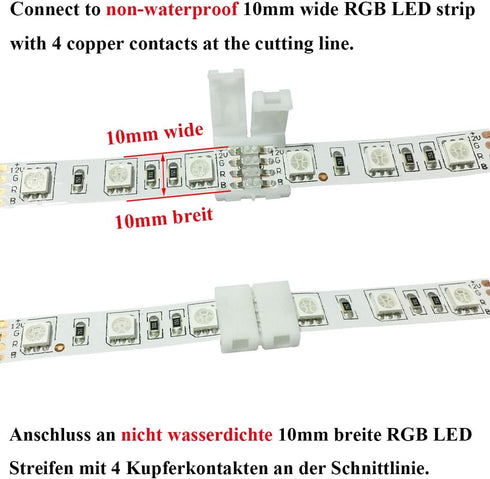

Installation Instructions: 1. Ensure your LED strip is 10mm wide and has 4 copper contacts at the cutting line. 2. Carefully cut your LED strip along the cutting line. Do not tear off the paper on the back of the LED strip before finishing the connection. Just insert the paper and the LED strip together into the connector. This will be easier to insert the LED strip into the connector without bending the LED strip into damage, and the connection will also be more stable. 3. Open the cap of the connector. 4. If you use a non-waterproof LED strip, please insert the LED strip into the connector. Make sure the 4 copper contacts on the LED strip are under the 4 electrical conductors in the connector; If you use a waterproof LED strip, please first remove the waterproof silicone around the cutting line, then insert the LED strip into the connector. Make sure the 4 copper contacts on the LED strip are under the 4 electrical conductors in the connector. 5. Close the cap, and check whether the connector works well. 6. Tear off the paper on the back of the LED strip to stick the LED strip, but please reserve the paper that has already been in the connector. Note: Please make sure that the positive poles of your LED strips at both ends of the connector are on the same one channel. Please make sure the arrow marks on your cable, your LED strip and your controller are on the same one channel. Solutions: If the LED strips flicker or do not light up, please follow these steps: 1. Take off the LED strip from the connector. 2. Open all caps on the connector. 3. Use a thin and hard object to simultaneously press hard on both ends of each electrical conductor in the connector, to bring the electrical conductor down to the lowest position. Make sure the electrical conductor can touch the surface of the bottom of the connector without any pressure. In this way, the 4 electrical conductors in the connector can fully touch the 4 copper contacts on the LED strip, ensuring good electrical conductivity. 4. Insert the LED strip into the connector. Package includes: 10x clasp connectors for 10mm wide SMD 5050 RGB LED strip lights

Brand: LitaElek

rgb led, smd, connector led, smd 5050, 5050, wide, fans ceiling, led ribbon, ribbon, lighting ceiling, extension, extension 10mm Tools & Home Improvement Lighting & Ceiling Fans Ceiling Lights Track Lighting Connectors

Key Features

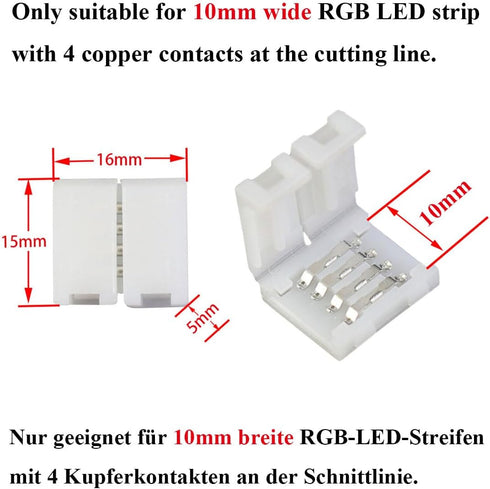

• 4pin RGB LED strip connector for 10mm wide RGB LED strips with 4 copper contacts at the cutting line. For example, SMD 5050 RGB LED strip lights. Please note that these connectors are NOT suitable for 8mm wide SMD 3528 RGB LED strip lights.

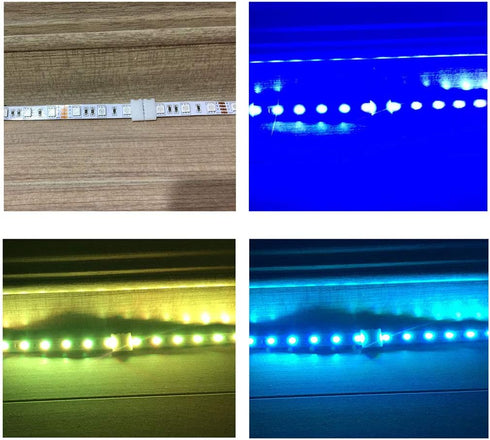

• Function: Connect between two RGB 5050 LED strip sections.
• Easy Installation: No need to solder. Just clasp your prepared LED strip into the connector to get connected.
• Please cut along the suggested line evenly so there is room for a proper connection on each side of the LED strip. Be sure to insert the LED strip under the pins in the connector, not on the top of the pins.

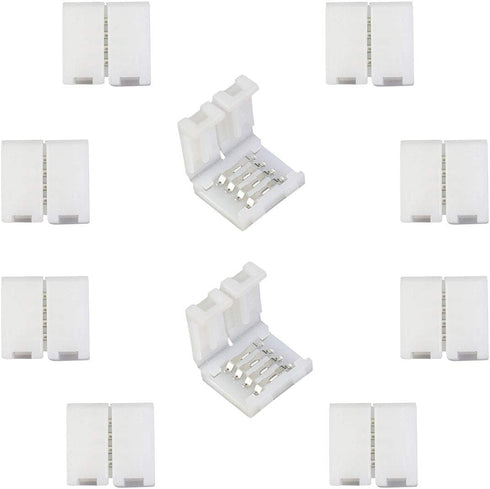

• Package includes:10pcs 4pin connectors for 10mm wide 4-pin RGB LED strip.

Product Details

• Item Weight: 0.01 Kilograms
• Model Number: CBL015
• Color: RGB 10mm, 10pcs
• Wattage: 72 watts
• Power Source: Corded Electric
• Material Type: Copper
• Theme: Indoor
• Included Components: 10x clasp connectors
