10pcs Plastic Reed Switch Normally Open (N/O) Magnetic Induction Switch with 10pcs Small Round Magnets
SKU: PGABL1155845
VENDOR: Gebildet
You Save: $1.80 (11%)
Hurry! Only 10 Left in Stock!
Free Shipping Across the United States
All orders within the United States qualify for 100% free shipping.
Fast Processing & Dispatch
All orders are shipped within 1 business day after purchase.
30-Day Free Returns
Not satisfied? You can return your order for free within 30 days after delivery.

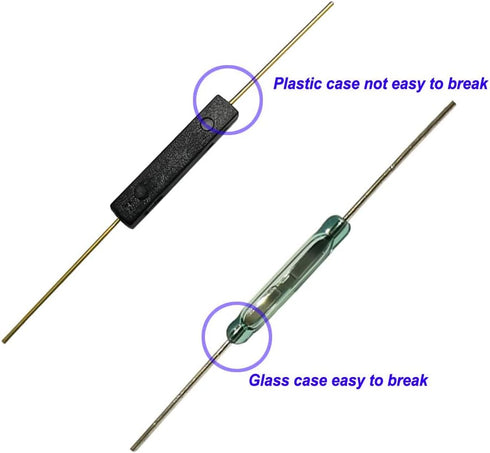

10pcs Plastic Reed Switch Reed Contact Normally Open (N/O) Magnetic Induction Switch (2.5mm×14mm) with 10pcs Small Multi-Use Round Magnets
10pcs Plastic Reed Switch Normally Open (N/O) Magnetic Induction Switch with 10pcs Small Round Magnets

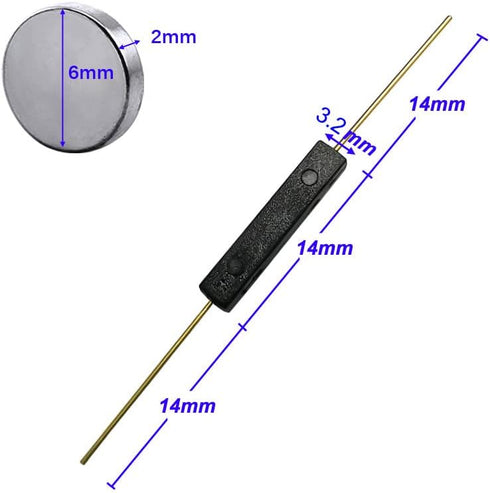

Total Length 44mm Plastic Part Length 14mm Plastic Part Diameter 2.5mm Contact Form A Working temperature: -20 degrees to 80 degrees Maximum power 10W Maximum switching voltage 100VDC Maximum switching current 0.5A Maximum load current 1.0A Maximum contact resistance 100M Minimum insulation resistance 1010 Action time 1.0ms Bounce time 0.6ms Release Time 0.4ms Response frequency 4000Hz Maximum operating frequency 500Hz Sensitive Value 10-15AT Minimum reset Min Value 4FT Maximum contact capacitance 0.7PF Electrical life (load) 108 (5VDC, 10mA) 105 (24VDC, 400mA) Test line circle number / Resistance 870/5000O Package included:10 X Reed Switch+10 X Small Multi-Use Round Magnets
Key Features

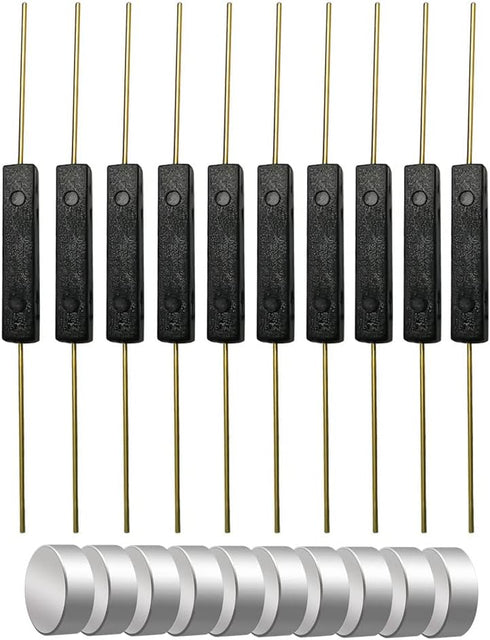

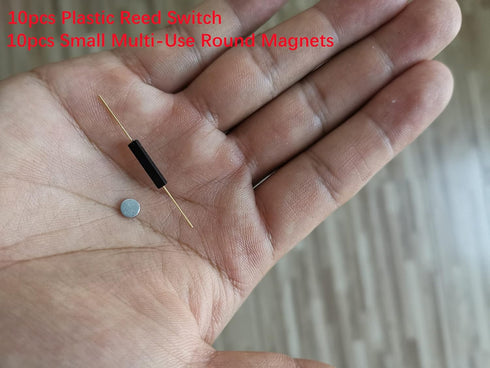

- ✅ Package included: 10 × Reed Switch, 10pcs Small Multi-Use Round Magnets
- ✅ Length of glass: 14 mm;Diameter of plastic part: 2.5 mm
- ✅ Maximum switching voltage 100VDC,Working temperature: -20 degrees to 80 degrees
- ✅ Max. Switch Current: 0.5A;Maxima charging current: 1.0A
- ✅ Maximum contact resistance: 100M;Minimum Insulation Resistance: 1010
