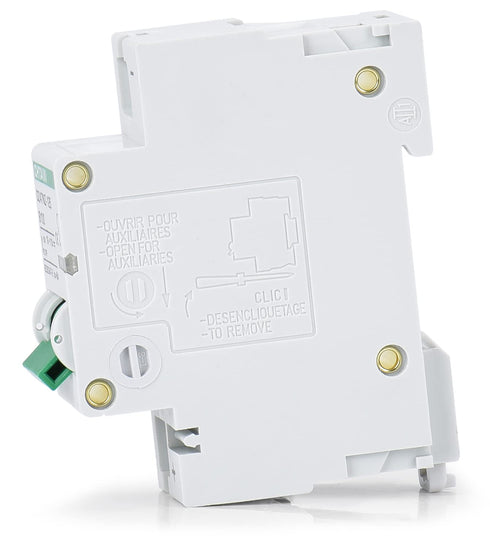

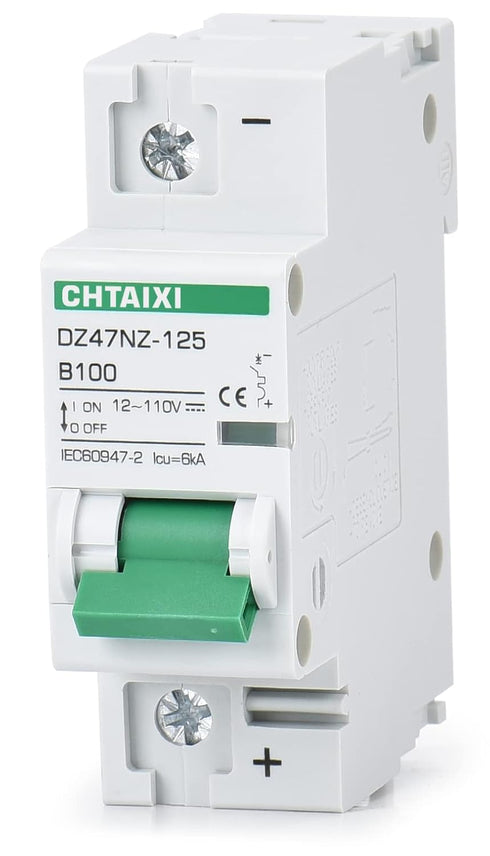

12V-110V 100 1 1P B100 DC Miniature Circuit Breaker, Amp Pole Battery Breaker Protector for Solar PV System and RV

12V-110V DC Miniature Circuit Breaker, 100 Amp 1 Pole Battery Breaker Protector for Solar PV System and RV, Thermal Magnetic Trip, DIN Rail Mount, High Current DC Disconnect Switch MCB 1P B100

12V-110V 100 1 1P B100 DC Miniature Circuit Breaker, Amp Pole Battery Breaker Protector for Solar PV System and RV

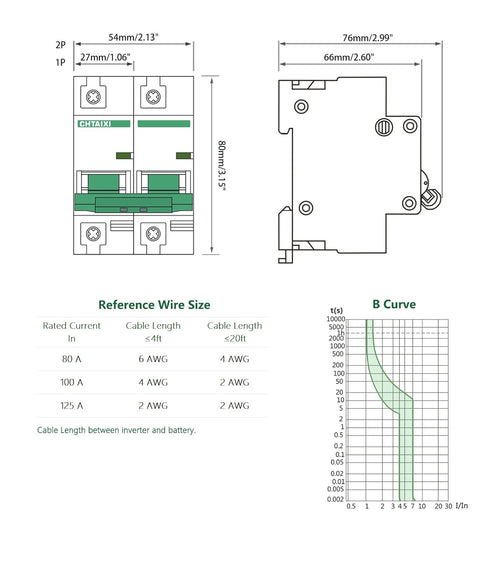

Caution Specifications Product name: DZ47NZ-125 Product type: DC Miniature Circuit Breaker Rated operational voltage: 12V - 110V DC Rated current [In]: 80A / 100 A / 125 A (optional) Poles: 1P / 2P (optional) Trip unit technology: Thermal-magnetic Curve code: B Breaking capacity: 6 kA Ics=Icu Uimp: 6 kV Mechanical durability: 10000 cycles Electrical durability: 4000 cycles Operating temperature: -13F(-25) ~ 140F(60) Mounting support: 35 mm DIN rail Tightening torque: 3.5 N.m Standard: IEC60947-2 Package includes 1 x DC miniature circuit breaker ( 1P NO DIN rail, 2P with 1 x DIN rail and 2 x screws )

Brand: CHTAIXI

110v, b100 tools, high, 100, magnetic, 110v miniature, breakers load, 12v, switch, amp, centers, protector solar Tools & Home Improvement Electrical Breakers, Load Centers & Fuses Circuit Breakers Miniature Circuit Breakers

Key Features

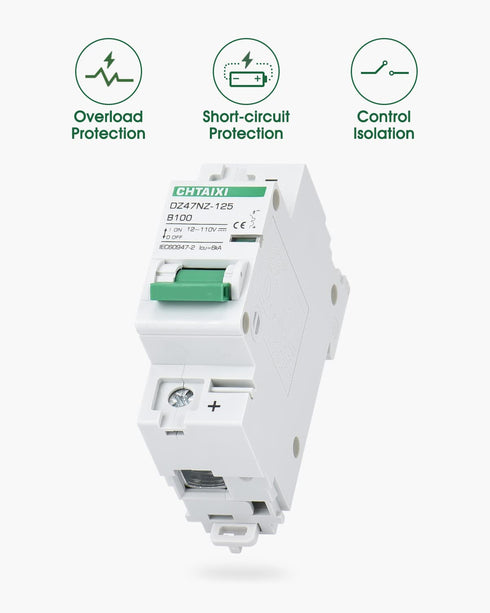

• ✓ FUNCTIONS: Used to protect power distribution facilities from overload and short-circuit damage, and can also be used for control and isolation.

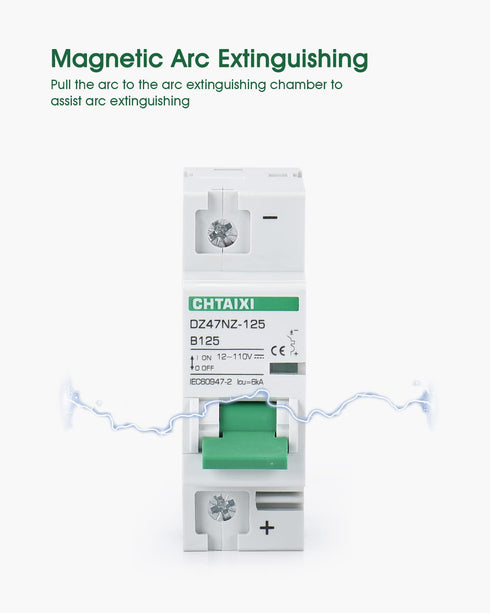

• ✓ ARC EXTINGUISHING: This DC circuit breaker has a magnetic system to assist arc extinguishing.

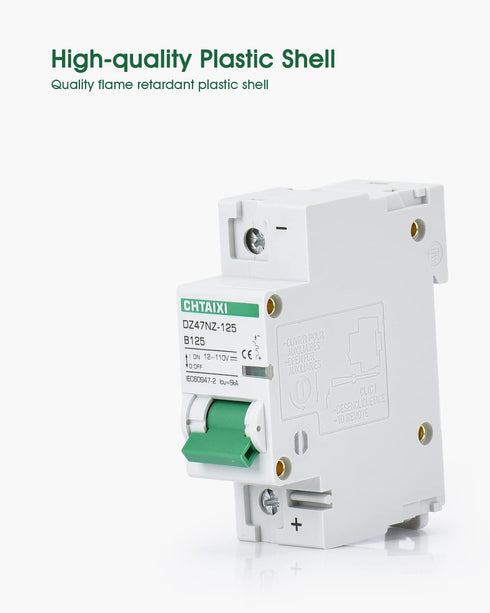

• ✓ QUALITY: Silver alloy contacts, flame retardant material shell, color indicator.
• ✓ APPLICATION: Used in battery power systems, solar photovoltaic systems, RV, electric moped, or other DC systems.
• ✓ INSTALLATION: 35mm DIN rail mount, screw clamp wires(soft silicone wire needs to crimp fixed the wire end with copper crimp first).
