12V-110V DC Miniature Circuit Breaker, 125 Amp 1 Pole Battery Breaker Protector for Solar PV System and RV, DIN Rail
SKU: PGABL1457793
VENDOR: CHTAIXI
You Save: $2.39 (12%)
Hurry! Only 10 Left in Stock!
Free Shipping Across the United States
All orders within the United States qualify for 100% free shipping.
Fast Processing & Dispatch
All orders are shipped within 1 business day after purchase.
30-Day Free Returns
Not satisfied? You can return your order for free within 30 days after delivery.

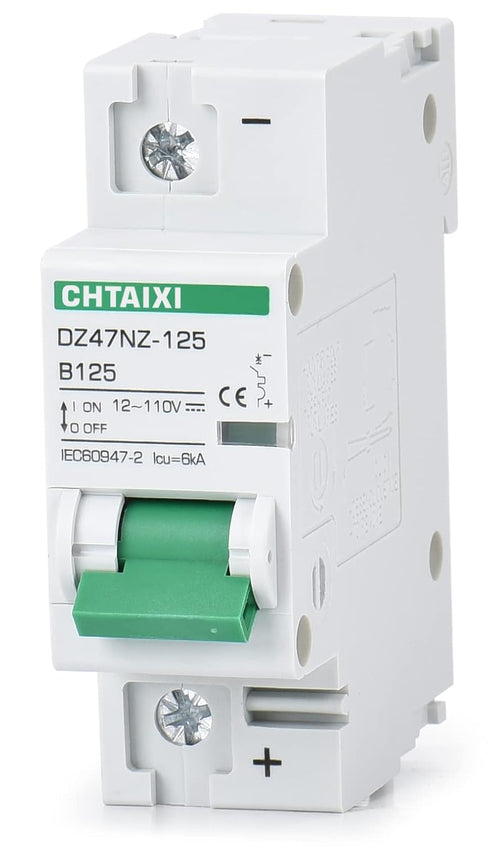

12V-110V DC Miniature Circuit Breaker, 125 Amp 1 Pole Battery Breaker Protector for Solar PV System and RV, Thermal Magnetic Trip, DIN Rail Mount, High Current DC Disconnect Switch MCB 1P B125
12V-110V DC Miniature Circuit Breaker, 125 Amp 1 Pole Battery Breaker Protector for Solar PV System and RV, DIN Rail
Specifications Product name: DZ47NZ-125 Product type: DC Miniature Circuit Breaker Rated operational voltage: 12V - 110V DC Rated current [In]: 80A / 100 A / 125 A (optional) Poles: 1P / 2P (optional) Trip unit technology: Thermal-magnetic Curve code: B Breaking capacity: 6 kA Ics=Icu Uimp: 6 kV Mechanical durability: 10000 cycles Electrical durability: 4000 cycles Operating temperature: -13 F(-25 ) ~ 140 F(60 ) Mounting support: 35 mm DIN rail Tightening torque: 3.5 N.m Standard: IEC60947-2 Package includes 1 x DC miniature circuit breaker ( 1P NO DIN rail, 2P with 1 x DIN rail and 2 x screws )
Key Features

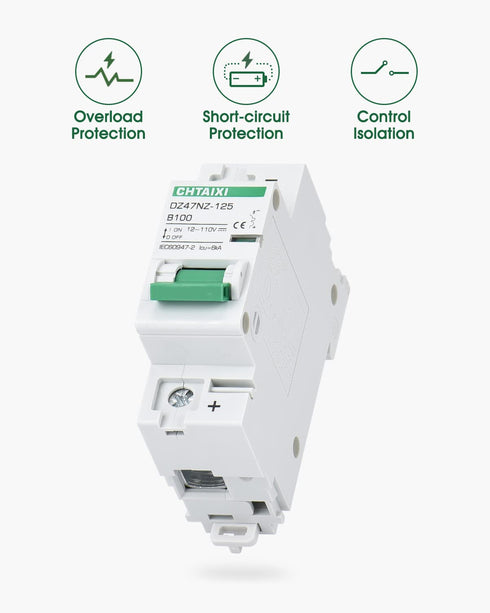

- ✅ FUNCTIONS: Used to protect power distribution facilities from overload and short-circuit damage, and can also be used for control and isolation.

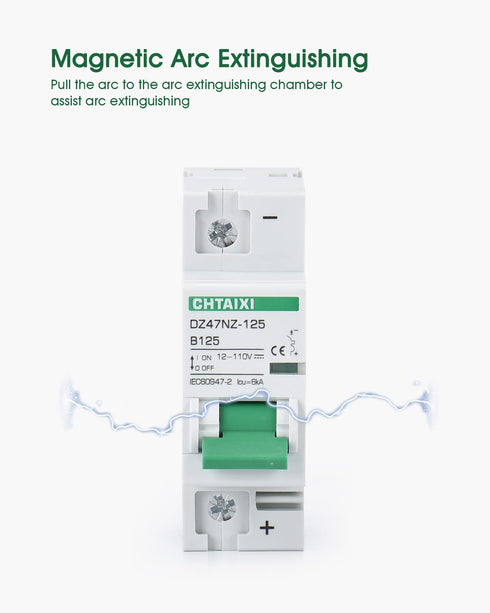

- ✅ ARC EXTINGUISHING: This DC circuit breaker has a magnetic system to assist arc extinguishing.

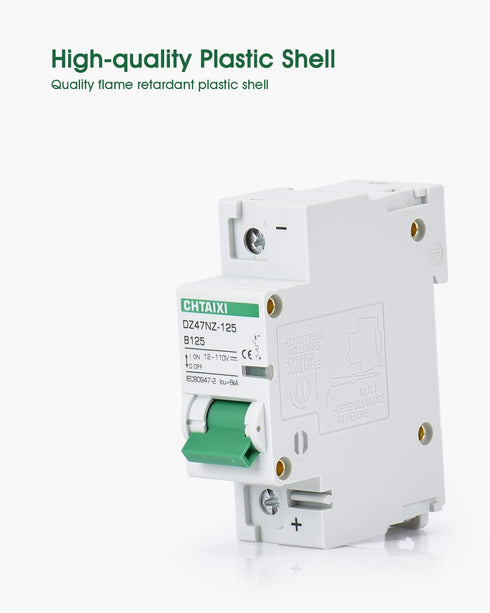

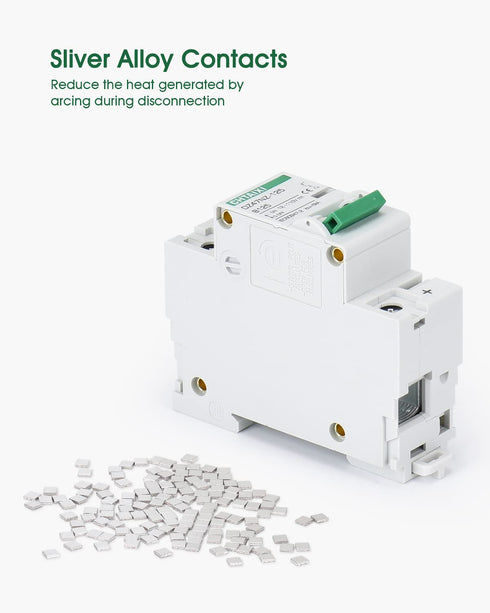

- ✅ QUALITY: Silver alloy contacts, flame retardant material shell, color indicator.
- ✅ APPLICATION: Used in battery power systems, solar photovoltaic systems, RV, electric moped, or other DC systems.
- ✅ INSTALLATION: Screw clamp wires, 35mm DIN rail mount.

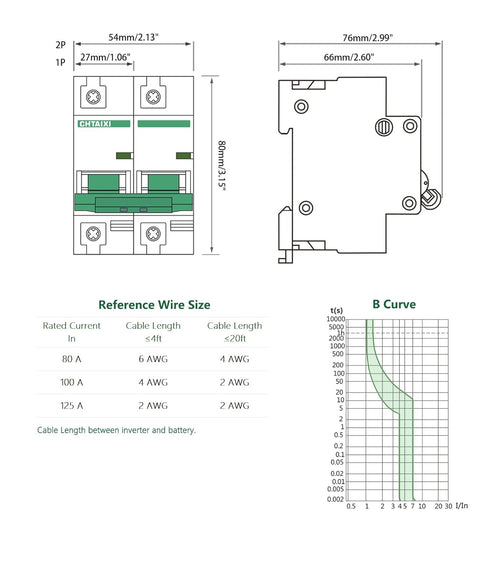

✅ Product Dimensions: 3 x 1.06 x 3.15 inches; 5.29 ounces
