12V-110V DC Miniature Circuit Breaker, 15 Amp 2 Pole Battery Breaker Protector for Solar PV System and RV
SKU: PGABL1457722
VENDOR: CHTAIXI
You Save: $2.72 (12%)
Hurry! Only 10 Left in Stock!
Free Shipping Across the United States
All orders within the United States qualify for 100% free shipping.
Fast Processing & Dispatch
All orders are shipped within 1 business day after purchase.
30-Day Free Returns
Not satisfied? You can return your order for free within 30 days after delivery.
12V-110V DC Miniature Circuit Breaker, 15 Amp 2 Pole Battery Breaker Protector for Solar PV System and RV, Thermal Magnetic Trip, DIN Rail Mount, Chtaixi DC Disconnect Switch B15
12V-110V DC Miniature Circuit Breaker, 15 Amp 2 Pole Battery Breaker Protector for Solar PV System and RV

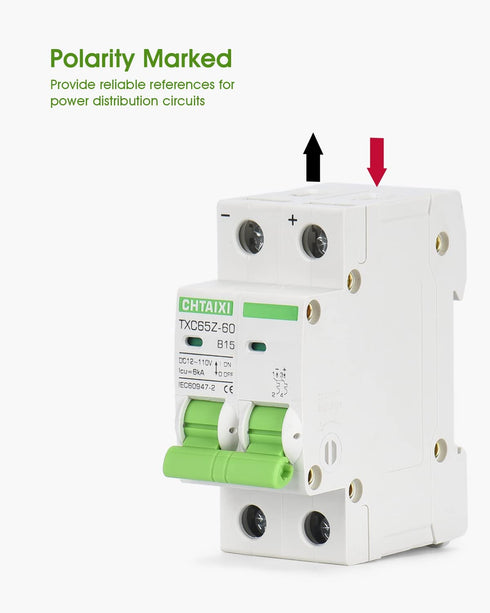

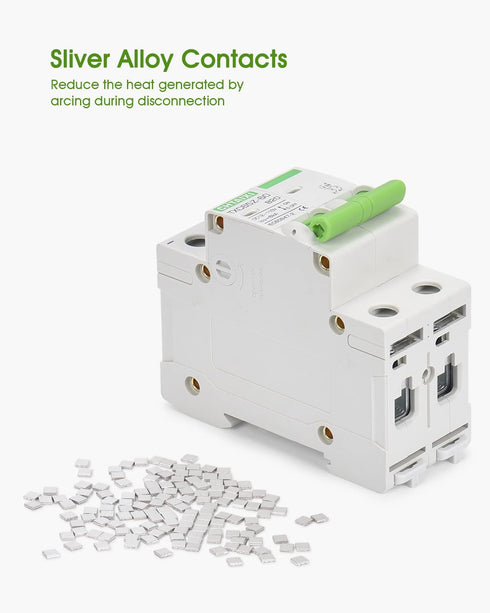

Contacts are very important to circuit breakers, especially for DC distribution with high arc extinguishing requirements. Good contacts can reduce the heat generated by arcing during disconnection and reduce the wear of the contacts. This DC MCB uses silver alloy contacts, which improves electrical durability, and protects your electricity safety for a long time. This DC mini circuit breaker has no polarity requirement in use, and the positive and negative poles can be inverted. However, the installation, use, and maintenance of DC circuits are based on polarity. So, in order to provide reliable indication and reference for the distribution, we highly recommend that you wire according to the marked polarity.
Key Features

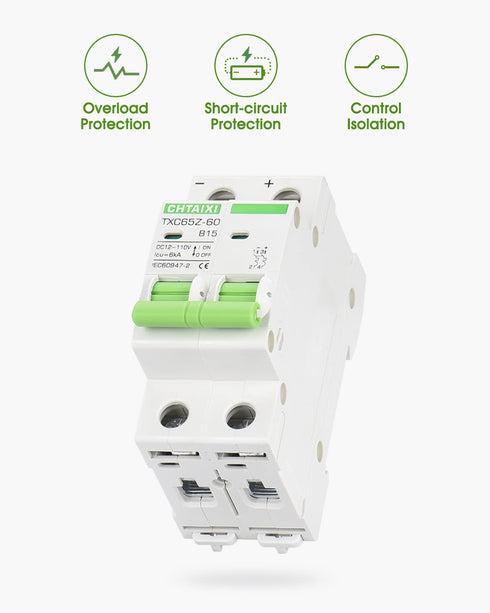

- ✅ FUNCTIONS: Used to protect 12V 24V 36V 48V 60V 100V DC circuit from overload and short circuit damage, and can also be used for control and isolation.
- ✅ FAST TRIP: The electromagnetic trip system can trip immediately when short-circuited.

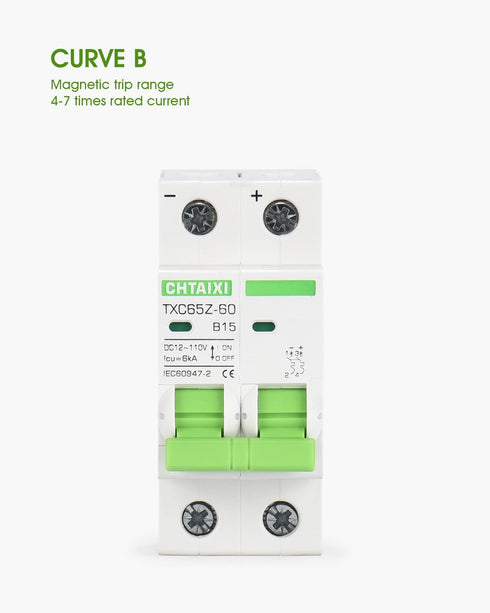

- ✅ CURVE B: Magnetic trip range 4-7 times rated current.
- ✅ APPLICATION: Used in battery power systems, solar photovoltaic systems, RV, electric moped, or other DC systems.

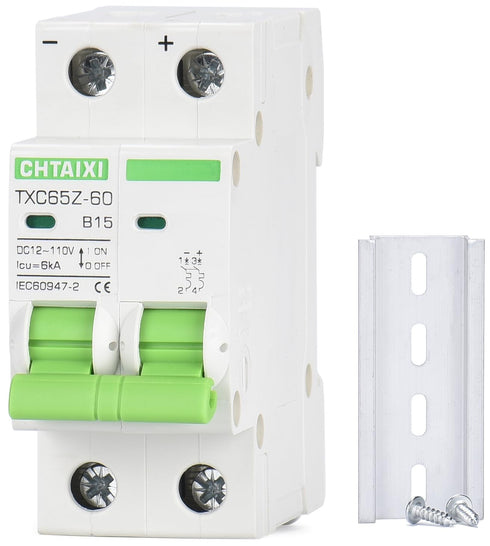

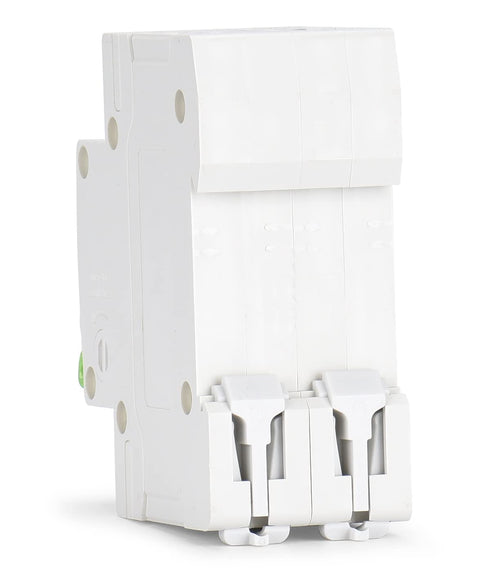

- ✅ INSTALLATION: Screw clamps wire or M5 wire lug (size fits), 35 mm DIN rail mount.

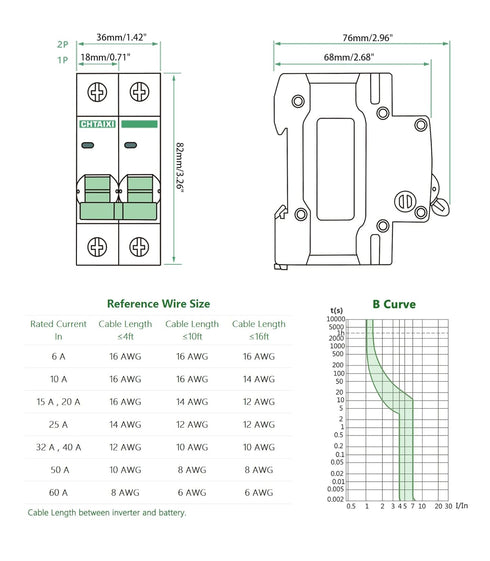

✅ Product Dimensions: 2.96 x 1.41 x 3.26 inches; 6.88 ounces
