12V 1CH 433Mhz Light,Solonoid(2 QIACHIP DC RF Wireless Relay Remote Control Momentary Toggle Delay Switch Transmitter

QIACHIP DC 12V 1CH 433Mhz RF Wireless Relay Remote Control Momentary Toggle Delay Switch Transmitter with Receiver for Access Control,Car Light,Solonoid(2 Relays)

12V 1CH 433Mhz Light,Solonoid(2 QIACHIP DC RF Wireless Relay Remote Control Momentary Toggle Delay Switch Transmitter

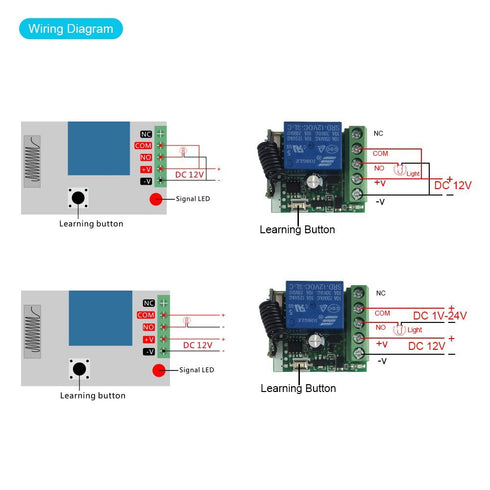

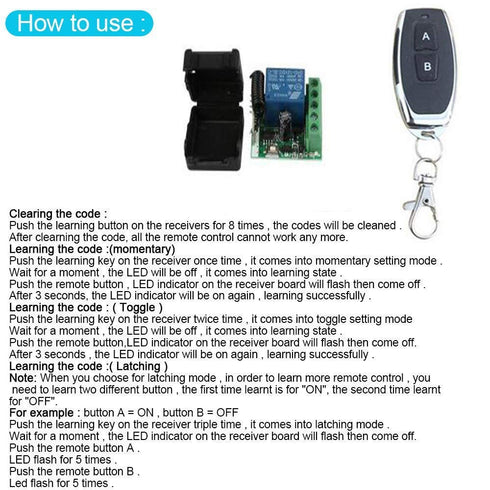

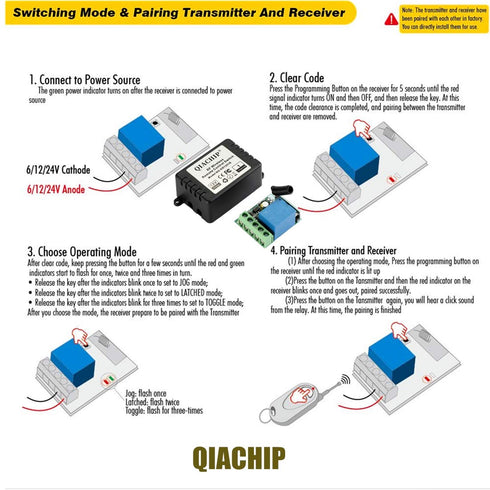

Supply voltage: 12V. RF frequency: 433MHz. RF working mode: superheterodyne. Receive sensitivity: > 97 dBm. Transmission distance: 50m (open space). Remote storage: 15 units. Remote Control Type: Learning Code EV1527 Working mode: momentary, toggle, close, time delay (5s, 10s, 15s). Output terminal: NC, COMNO PCB Dimension: 35 x 30 x 18mm (L x W x H) Operating Frequency: 433MHz Powered by 3V button battery (battery included). Operating Current: 12mA Transmission Power: 10mW Modulation mode: ASK (AM). Coding type: learning code. Transfer Distance: 50m Size: 59*28*8mm. Decoding mode: MCU software decoding. This RF433 receiver is powered by DC 12V input and features dry contact (passive switch) output. For the 12V 10A 1CH receiver unit, we recommend using a 12V regulated DC power supply to ensure long-term stable operationdry batteries are only suitable for temporary emergency or testing use! press and hold the remote button, the relay connects, release the remote button, the relay disconnects. How to Set? press the remote button once, the relay connects, press the remote button again, the relay disconnects. How to Set? Press remote button A, the relay connects, press remote button B, the relay disconnects. How to Set? This mode can be achieved using two single-button remote controls, or directly using a remote control with two or more buttons. press the remote control button, the relay connects, from when you release the remote button, after 5 seconds, 10 seconds, 15 seconds or 20 seconds, the relay automatically disconnects. How to Set?

Brand: QIACHIP

improvement, relays tools, receiver, 433mhz, qiachip 12v, access, building supplies, momentary, receiver access, qiachip, solonoid relays, delay switch Tools & Home Improvement Building Supplies Building Materials Doors Garage Doors, Openers & Parts

Key Features

• The volume is small and the performance is stable and reliable, high receive sensitivity, Signal can pass through walls, floors and doors. Max range is up to 164ft/50m with no obstacle.
• DC 12V 1-Channel Wireless Remote Control Relay Switch .The receiving module provides high signal sensitivity at lower cost and resist interference for excellent stability.
• The rf relay adopts non-directional wireless encoding technology, allowing independent control without mutual interference.
• The programmable rf transmitter and receivers can be flexibly configured in quantity and in operating modes.
• It is widely used in industrial control and security fields, such as light, motor, remote controller, wireless security alarm, wireless door alarm, wireless controller, etc.

Product Details

• Wattage: 120 watts
