12V 4 433Mhz 10A EV1527 Channels Wireless Remote Control Switch with Industrial watterproof Transmitter Relay Module

12V 4 Channels 433Mhz Wireless Remote Control Switch with Industrial watterproof Transmitter 10A Relay Module Receiver EV1527 Relay Output with NO COM NC for Drop-Proof, for Light,Access Control

12V 4 433Mhz 10A EV1527 Channels Wireless Remote Control Switch with Industrial watterproof Transmitter Relay Module

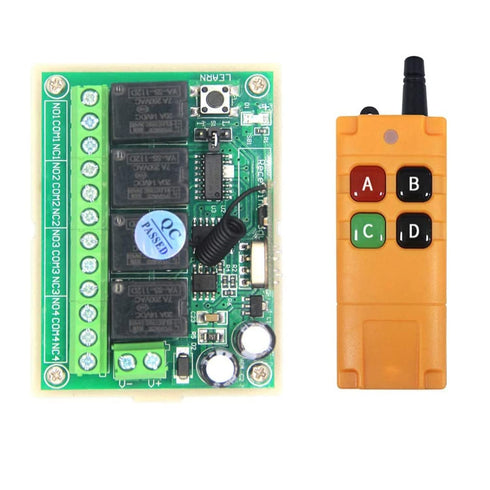

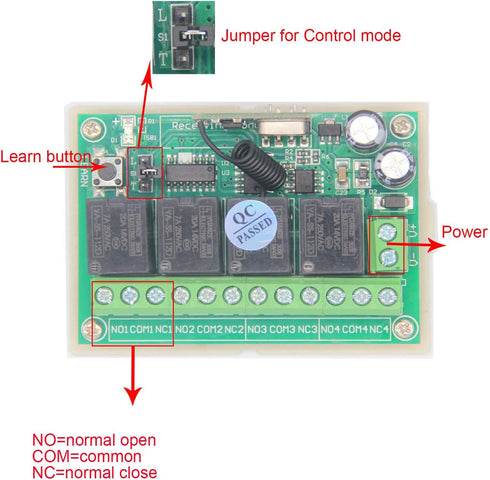

delivery 1 x receiver 1x remote control with battery (If you need more remotes, please let us know/ or You can directly purchase the remote control ASIN: B0BZ76HJDB ) Parameter Power Supply (Operating Voltage): DC 12V Relay: 10A Relay Output current: Less than 3A Current:<7ma Sensitivity:-107 dBm Operating Temperature:-40C ~ 80C Size:74 mm x 55 mm x 28 mm Frequency: 433 MHz Work mode adjust Toggle: jumper in S1+T Momentary: jumper in S1 Latch: jumper in S1+L Receiver work mode Toggle/Self-Lock: Press->On; Press again->Off Press one button for one time is working/ON .press the same button again is stop/OFF. (press 1 ,1 relay works,press 1 again,1 relay stops working,2-4 works like this) Latched/Inter-Lock: Press->On; Press other button->Off Press one button is working/ON ,press another button is stop/OFF.(press 1,1 relay works,press 2,1 relay stops working,2 relay works,3-4 works like this) Momentary/Jog: Press and hold->On; Release->Off Keep pressing one button is working /ON. loosen your finger is stop/OFF.(press 1 and hold,1 relay works,release key 1,1 relay stops working,2-4 works like this) Learn code and Remove Code 1. Learning code:Press the learning button, the indicator flashes, loosen your finger, press any button of the transmitter, the indicator flashes 2 times and off, it means you learn it successfully . 2. It can learn more than 12 PCS PT2262 or EV1527 chip with the different code wireless remote control. 3. Clear code: Press the learning button about 8 seconds , the indicator turns on to off, it means the codes have been removed successfully.

Brand: Kaleinavi

433mhz, supplies, relay, receiver, light, module receiver, transmitter, 12v, switch, access control, proof light, control switch Tools & Home Improvement Building Supplies Building Materials Doors Garage Doors, Openers & Parts

Key Features

• ✓ Input voltage: DC 12V, channel:4 channels, coding method: Learning code, remote distance: 300m in the free field, wireless control, easy to install. The range is about 300m in the open air, it can simply pass through walls and so on. But please note: trees, walls or other obstacles will shorten the range.
• ✓ Signal stability and range: RF remote control uses RF technology and stable signal. The signal from the wireless RF switch can be routed to walls, floors and doors, and continuously control the receiver from any position with a reliable distance.The product has 3 working modes, you can adjust according to your own needs. The product is a relay output that can control devices with different voltages.

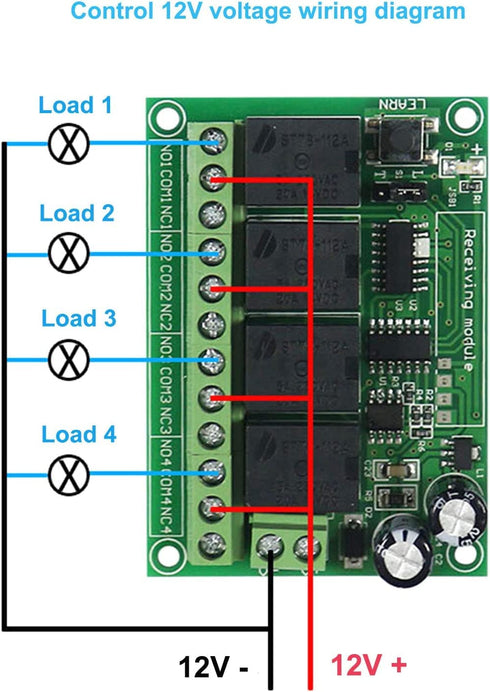

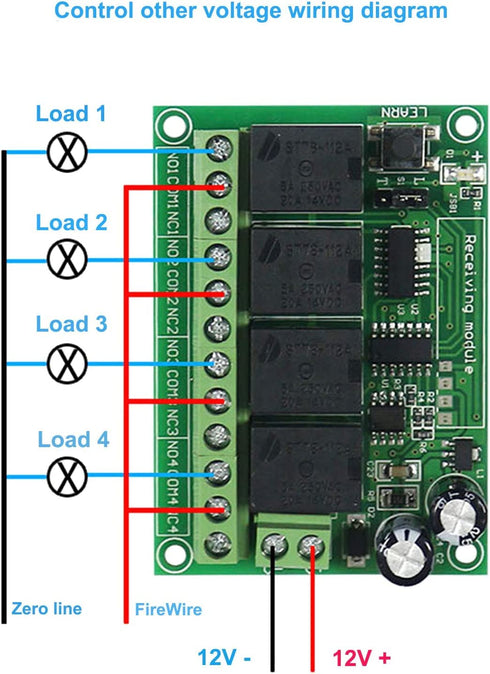

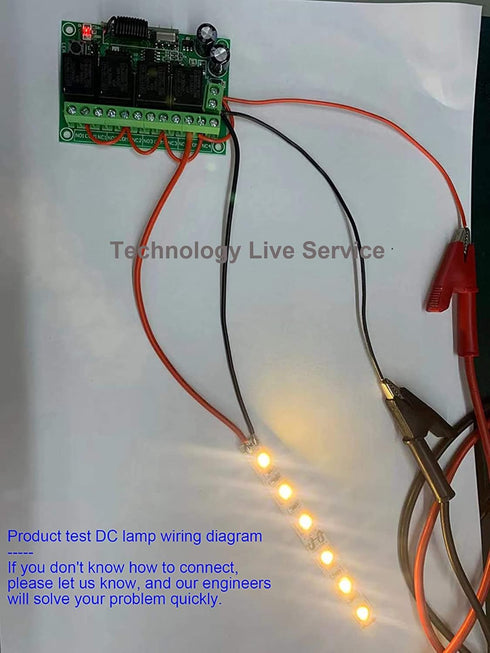

• ✓ Pairing and testing: Before delivery, our technicians have paired and tested the remote control and receiver. When you receive it, you don't need to perform any other operations, just install it through the Wiring diagram. We provide you with 1 year warranty and technical service.
• ✓ Easy to control+Dry contact signal: You can learn multiple remote controls, and multiple remote can control one receiver. No interference: Using digital coding, the products will not interfere with each other in the same environment where multiple groups of products of the same model are used. The radio receiver is a relay output/potential free, with NO, NC, COM, Normally open+Normally closed+Common terminal.

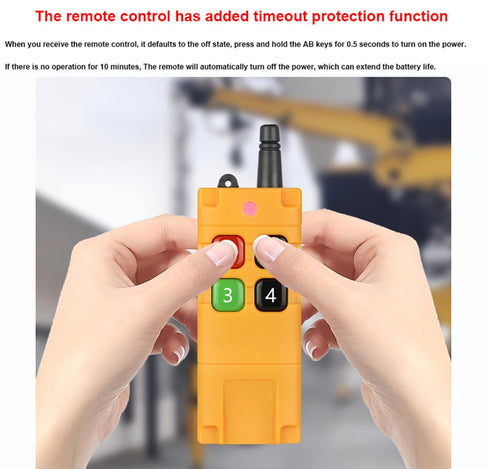

• ✓ Application+New anti trigger remote control: The product has stable performance, small size and high receiving sensitivity.It has a wide range of uses, especially suitable for wired door and window control systems and anti-theft alarms to realize the switch from wired to wireless systems.Used in industrial control and security fields: such as lamps, electric doors, winches, motors, lifters, gates, remote controls, etc.When you receive remote control, it defaults to the off state, press and hold the AB keys for 0.5 seconds to turn on the power.If there is no operation for 10 minutes.The remote will automatically turn off the power, which can extend the battery life.Can prevent triggering.

Product Details

• ✓ Wattage: 36 watts
