12V 5V~24V 1A DieseRC Mini Wireless DC Motor Remote Control Switch, Micro DC Receiver Controller, Radio Control Motor

DieseRC Mini Wireless 12V DC Motor Remote Control Switch, Micro DC 5V~24V 1A Receiver Controller, Radio Control Motor Move Forward and Reverse for Micro DC Motor Electric Lock DIY Science Toys RC Boat

12V 5V~24V 1A DieseRC Mini Wireless DC Motor Remote Control Switch, Micro DC Receiver Controller, Radio Control Motor

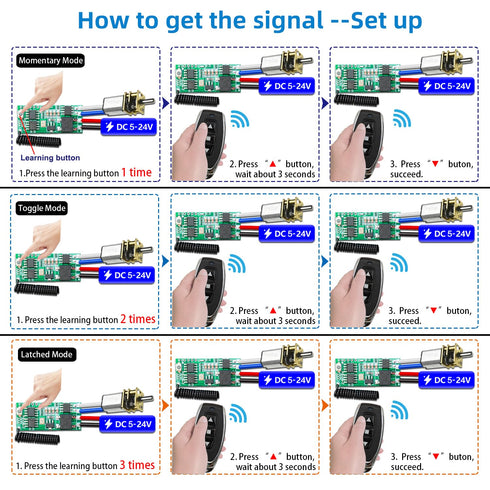

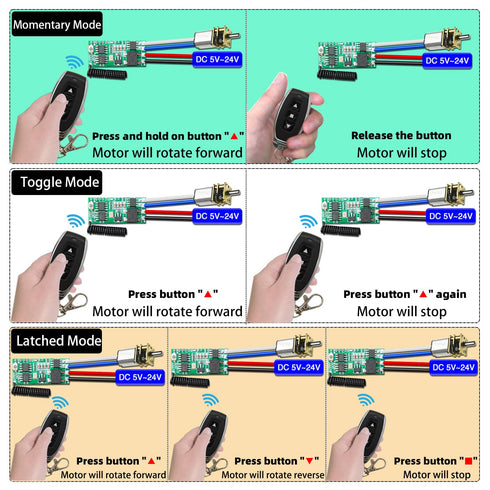

Package include: 1x Relay Receiver board 2x Transmitters (contain battery) 1x Product manual Parameter: -Receiver Working voltage: DC 5V~24V -Quiescent Current: <10MA -Max current: 1A -RF frequency: 433MHz -Working temperature: -30~+80 -Receiving Sensitivity: >107dbm -Amount of storage remote controls: 15 pieces -Support encoding: 1527 Leaning code -RF Operating mode: ASK superheterodyne wireless reception -Receiving range: Open space is about 30~50 meters - Operating mode: Momentary /Toggle/ Latched Mode -Battery: 2x CR2016(included) Usage(Operation Mode): Momentary Mode: 1. Press and hold on button "", the motor will rotate forward; 2. Release the button, this motor will turn off. Toggle Mode: 1. Press button "", the motor will rotate forward; 2. Press button "" again, this motor will turn off. Latched mode: 1. Press button "", the motor will rotate forward; 2. Press button "", this motor will rotate reverse. 3. Press button "", this motor will turn off. Reset: Press the learning button (on the Receiver) 8 times. succeed. Note: After reset, all the remote controls cannot work any more. Setup 1. Press the learning button (Pressing 1 time for Momentary mode, Pressing 2 times for Toggle mode, Pressing 3 times for Latched mode). Wait for 3 seconds; 2. Press button . Wait for 3 seconds. 3. Press button . Succeed. Note: All the product are set up in toggle mode before shipping. If you want to change the operation mode please reset firstly.

Brand: DieseRC

micro, improvement, dieserc, control motor, receiver, controller, radio, control switch, boat tools, mini wireless, building supplies, science Tools & Home Improvement Building Supplies Building Materials Doors Garage Doors, Openers & Parts

Key Features

• Excellent Design433Mhz RF wireless remote control switch. It can wireless control DC motor rotate forward and reverse. Stable and reliable performance with high reception sensitivity (> - 107dBm). Strong signal can pass walls, floors, doors.It can be controlled within about 30~50 meters distance.You can remotely operate the the DC motor through the remote control.
• Easy to useExtremely easy to set up and reset. There are 3 operating mode(momentary/toggle/latched mode) can be chose.You can easily set up by yourself depends on your needs. The operating mode of the product is adjustable.These product are tested before shipping, and programed in latched mode. Press button , the motor will rotate forward; Press button , this motor will rotate reverse.Press button , this motor will stop.

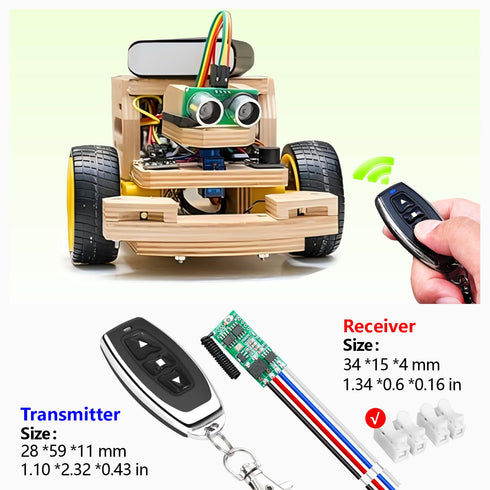

• More Flexibility This receiver can connect with the DC motor easily. Each receiver can store about 15 transmitters. This receiver module is in mini size. The length width height is 35mm*15mm*4mm. Which make this product more easy to DIY.
• Quality AssuranceHigh-quality relay that can be used over 100,000 times.Let this product is more long-lasting and stable to use.The rate resistive load of the relay is 1A (the inductive load is 0.5A). So that this product can have a good effect even when the current is unstable. The receiver is suitable for DC 5V~24V voltage, it is more flexible to use. fitable for 5V 12V 24V.
• Wide ApplicationYou can remotely operate the DC motor going forward and reverse through the remote control. Such as lock, motorized curtains, rolling shutters, door grilles, small equipment battery powered on and off, magnetic coils, motors, motors, electromagnets, positive and negative conversion device, etc.

Product Details

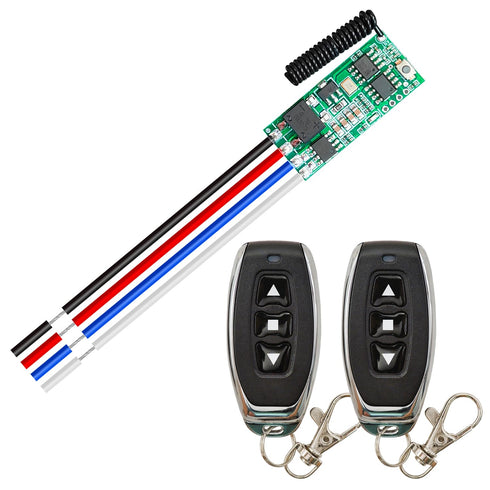

• Included Components: 1 Receiver with 2 Transmitters
