16Amp AC/DC 2x12 Position Terminal Block Distribution Module
SKU: PGABL1877303
VENDOR: CZH-LABS
You Save: $2.20 (11%)
Hurry! Only 10 Left in Stock!
Free Shipping Across the United States
All orders within the United States qualify for 100% free shipping.
Fast Processing & Dispatch
All orders are shipped within 1 business day after purchase.
30-Day Free Returns
Not satisfied? You can return your order for free within 30 days after delivery.

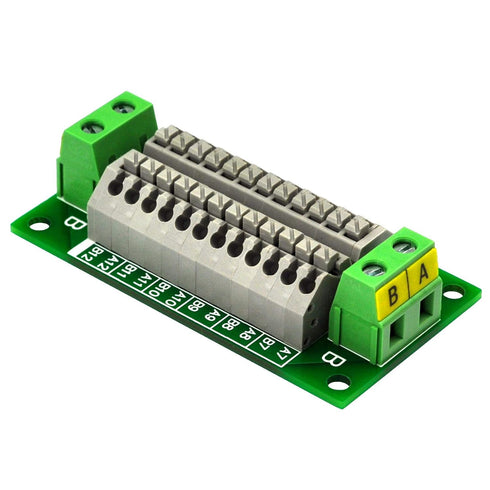

16Amp AC/DC 2x12 Position Terminal Block Distribution Module
16Amp AC/DC 2x12 Position Terminal Block Distribution Module
Key Features

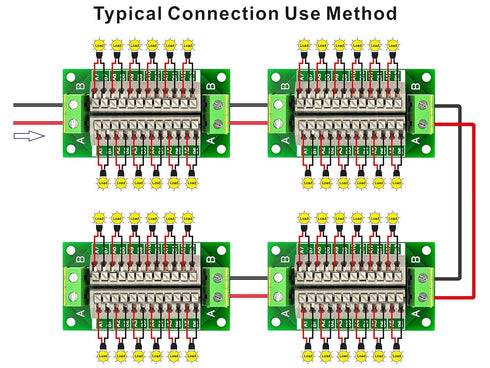

- ✅ 16Amp 48V 2x12 position terminal block distribution module. Support for multiple module extension connections.
- ✅ Rated current 16 Amp(total input or output), Maximum voltage 48V AC or DC.

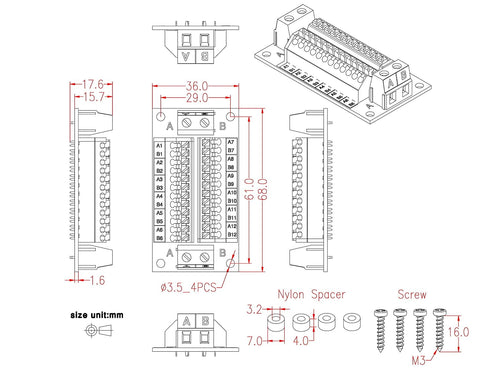

- ✅ A / B Screw terminal blocks, Pitch 7.5mm/0.295", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16 Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.

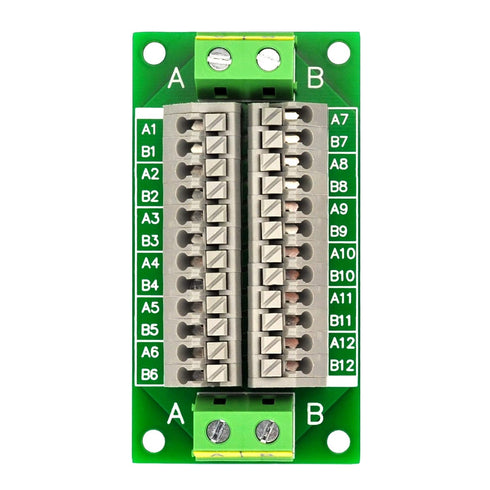

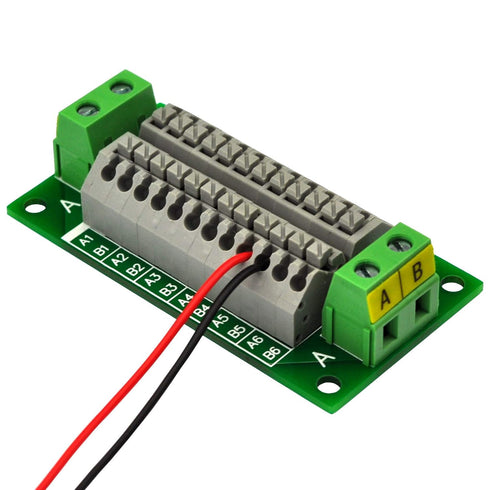

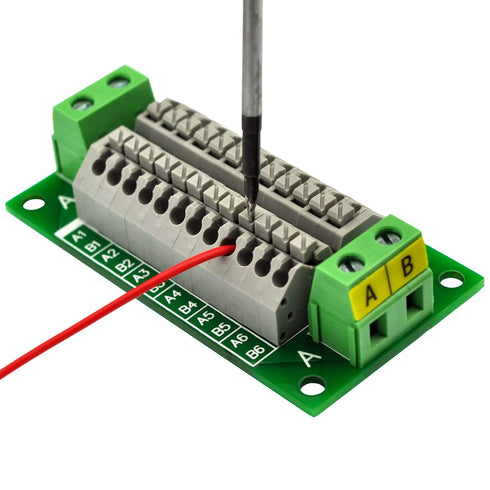

- ✅ A1~B6 / A7~B12 Screwless terminal blocks, Pitch 3.5mm/0.138", Wire range 26AWG ~ 20AWG / 0.75mm square. Rated current 2 Amp(for each positon). Strip length 8mm. For the screwless terminals, you can use your fingers or a screwdriver to press the top button, then fill the wire conductor into the hole and release the button, which is very convenient.

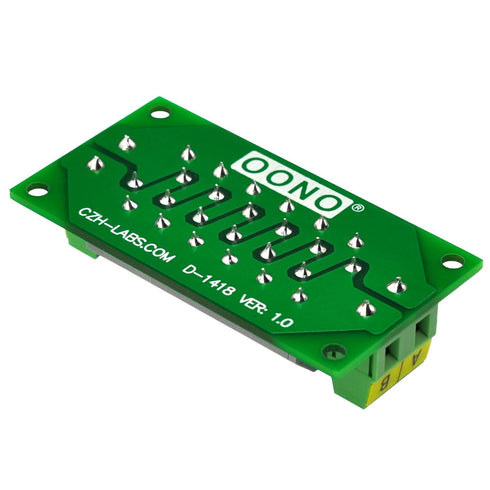

- ✅ UL CE CQC certified terminal blocks, FR-4 glass fiber PCB.
Shipping & Guarantees
- ✅ FREE standard shipping within the United States (3–6 business days)
- ✅ 100% money-back guarantee for lost or damaged items
- ✅ Secure checkout with encrypted payment processing
- ✅ Shipping via UPS, FedEx, and USPS
- ✅ Ships to lower 48 states only (no PO Boxes / APO / FPO)
Returns
- ✅ 30-day hassle-free returns
- ✅ Items must be unused and in original packaging
- ✅ Full refund if item is not delivered
- ✅ Guaranteed delivery within 6–7 business days
Payment Methods
✅ Credit Cards, PayPal, Shop Pay, Apple Pay, Google Pay, Amazon Pay, Meta Pay
Customer Support
✅ Questions? Contact us at Support@GiftAbay.com
We respond within 24 hours on business days.
SEO Title:
Keywords:
Category: Industrial & Scientific
Subcategories: Industrial Electrical, Wiring & Connecting, Terminal Blocks, Ground Circuit Terminal Blocks
