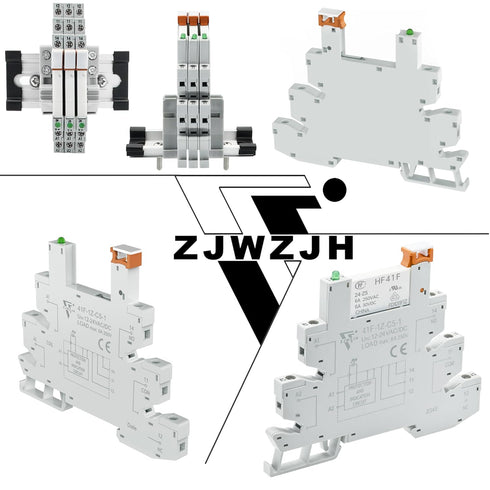

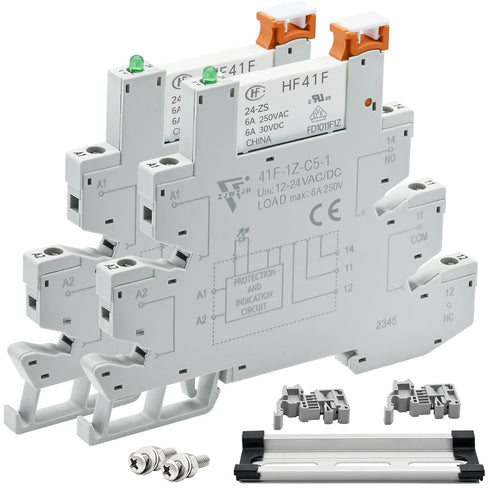

(2 Pcs) Electromechanical Relays, 6Amp Miniature 24VDC 24V AC HF41F/24-ZS, 1NO 1NC SPDT with Socket Base

(2 Pcs) Electromechanical Relays 6Amp Miniature 24VDC 24V AC HF41F/24-ZS 1NO 1NC SPDT with Socket Base Screw Terminal, with DIN Rail, UL/VDE Certification

(2 Pcs) Electromechanical Relays, 6Amp Miniature 24VDC 24V AC HF41F/24-ZS, 1NO 1NC SPDT with Socket Base

Package include : 3 x Power Relay ,3× Socket Base ,1 x Rail Slotted Aluminum , 2 x Screw Relay Features 1.Slim size: width 5mm(0.2'') 2.Switching capacity: 6A 3.High breakdown voltage 4kV(between coil and contacts) 4.Surge voltage up to 6kV (between coil and contacts) 5.Meeting VDE0700/0631 reinforce insulation 6.High sensitive: Approx.170mW 7.Sockets available 8.Environmental friendly product (RoHS compliant) 9.Outline Dimensions: (28.0x5.0x1 5.0)mm Relay Contact Data 1.Contact arrangement: 1H,1Z 2.Contact resistance: 100mQ(1A 6VDC) 3.Contact material: AgSnO2, AgNi 4.Contact rating (Res.load): 6A 250VAC/30VDC 5.Max. switching voltage: 400VAC/125VDC 6.Max. switching current: 6A 7.Max. switching power: 1 500VA/180W 8.Mechanical endurance: 1x 10? 9.Electrical endurance: H:6x 10° (AgNi, 6A 250VAC/30VDC85°C,1s9s )Z:3x10*(NO, AgNi, 6A 250VAC/30VDCElectrical endurance85°C,1s9s )1x10*(NO, AgNi, 6A 250VAC/30VDC .85°C,1s9s ) Relay Characteristics 1. Insulation resistance: 1000M 2( at 500VDC) 2. Dielectric Between coil & contacts: 4000VAC 1Min Strength Between open contacts: 1000VAC 1 Min 3. Operate time(at nomi.volt.): =8ms max. 4. Release time(at nomi.volt.): =4ms max. 5. Shock Functional: 49m/s2 Resistance Destructive: 980m/s? 6. Vibration resistance: 10~ 55Hz 1mm 7. Humidity: 5%~85%RH 8. Ambient temperature: -40°C~+85C 9. Termination: PCB 10. Unit Weight: Approx. 5g 11. Construction: Plastic sealed, Flux proofed

Key Features

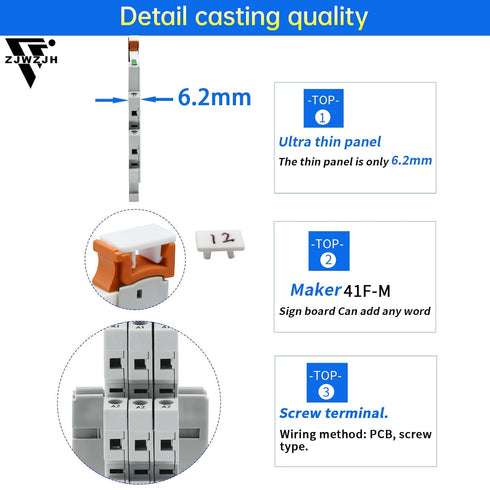

• ✅ ?Certifications? Power Relay through UL and VDE certification, Socket through CE certification.Product Name: Subminiature Power Relay,The thickness is only 0.24 "/6.2mm.
• ✅ Coil Voltage:AC/DC 24V; Contact : 1 Form C(1NO 1NC); Number of Terminals : 5 Pin; Contact Rating: 6A 250VAC / 30VDC, Construction: Plastic seaied.

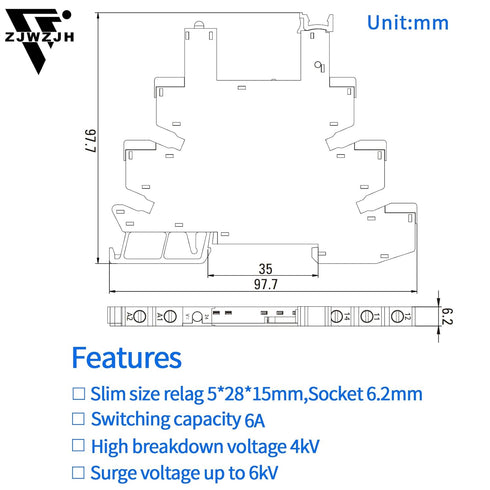

• ✅ Relay Model:HF41F/24-ZS , Relay Slim size (width 5mm), Outline size:28×5×15mm; Socket Model: 41F-1Z-C2, Size : 70.9 x 88.3 x 6.3mm / 2.798"x3.48"x 0.25"(H*L*W)
• ✅ Mount Rail Type : 35mm (1.38") DIN Rail; DIN Rail length :78mm (3.07").

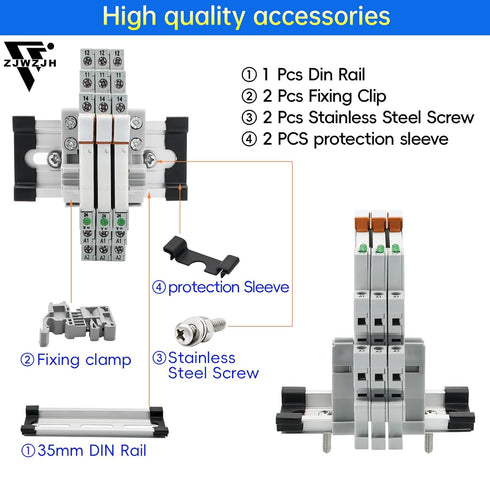

• ✅ ?Package?Package Content : 2× Power Relay; 2× Relay Socket Base; 1× DIN Rail;2×Fixing Clip;2×Screw.Ambient temperature: -40? ~ 70?. After sales service: if you have any question, please be free to contact us. We offer free replacement or full refund.

✅ Product Dimensions: 3.85 x 0.24 x 3.85 inches; 1.12 ounces
