25mm 20N Mini Electric Linear Actuator, 12V Actuator with Brackets for Robotics and Automation

25mm 20N Mini Electric Linear Actuator 1 Inch Linear Motion Actuator 12V Actuators with Brackets for Cabinets, Robotics, Home Automation, Window Opener

25mm 20N Mini Electric Linear Actuator, 12V Actuator with Brackets for Robotics and Automation

The interior of the aircraft adopts powder metallurgy technology for a longer lifespan. ? How to select a push rod: ? 1: Confirm if the installation space is sufficient; 2: How long does it take to travel (retract range); 3: Choose the appropriate speed based on the weight of the object being pushed.

Key Features

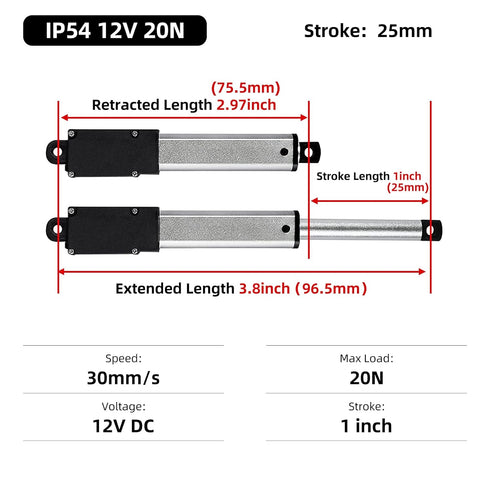

• ✅ ?Micro Linear Actuator Specifications?: 12 Volt Electric Linear Actuator Stroke length = 25mm(1"); Retracted length =75.5mm(2.97"); Extended Length= 96.5mm(3.8"); Travel speed =1.2 inches/sec (30mm/s);Maximum current draw = 2.5Amps; Maximum Load = 4.5lbs(20N).

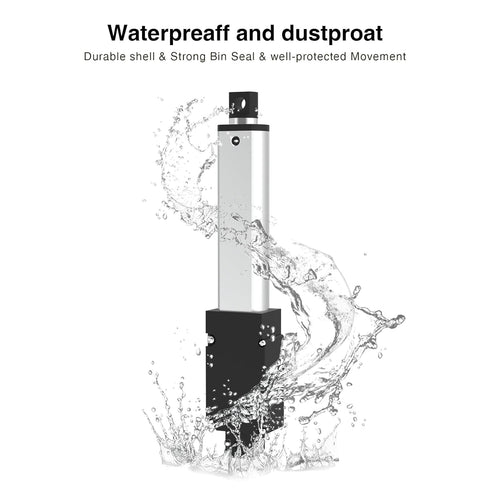

• ✅ ?Material Of Electric Actuator? The linear actuator is made of high quality aluminum alloy material and equipped with high-performance motor; Built in limit switch, stop at any position, automatically stop at the top, with IP54 protection, short circuit protection, Durable and reliable, long life for use.
• ✅ [Compact Design] 12v mini linear actuator with Over-current protection, Short circuit protection, Overload protection, Over-voltage protection design. High frequency of use, geared motor,waterproof, light weight, compact and exquisite, guaranteed.
• ✅ [Wide range of applications] : Motion linear actuators are suitable for DIY project, home automation, cabinet door, fan blades, robot grippers, toys, lawn mowers, drawer locks, shutters, 3D printers,intelligent range hood, fan blades, cabinets, window opener, obotics, etc. Widely used in electric lifting systems, medical chairs, electric equipment, camera racks, electric sofas, cameras, etc.

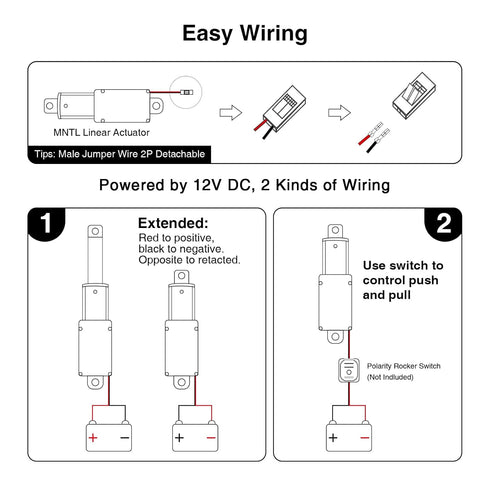

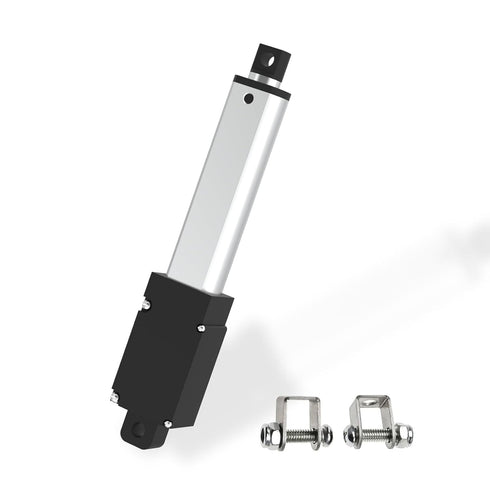

• ✅ ?Safe & Easy set up ?Use the bracket to quickly install and easily connect the actuator to a 12 volt safe power supply. The package includes 1 mini linear actuator and 2 bracket kits.
