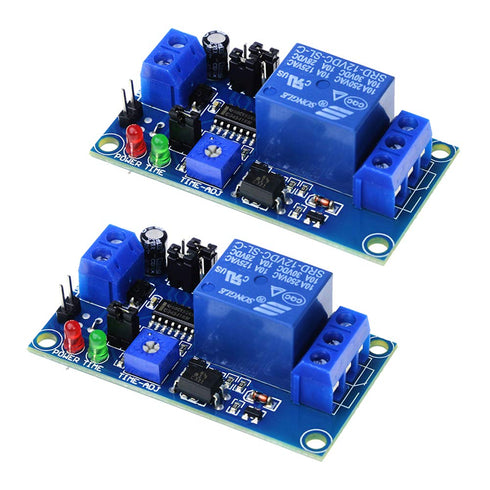

2PCS DC 12V Delay Relay Switch, Adjustable Timing Module with LED Indicator Display

2PCS DC 12v Delay Relay Switch Turn On Off Switch Module with Time Timer Timing Adjustable Potentiometer LED Indicator Display

2PCS DC 12V Delay Relay Switch, Adjustable Timing Module with LED Indicator Display

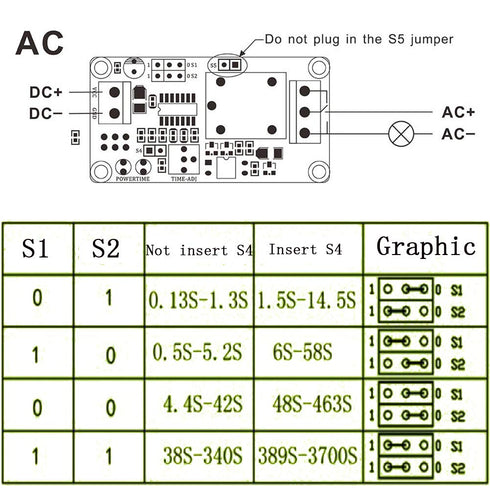

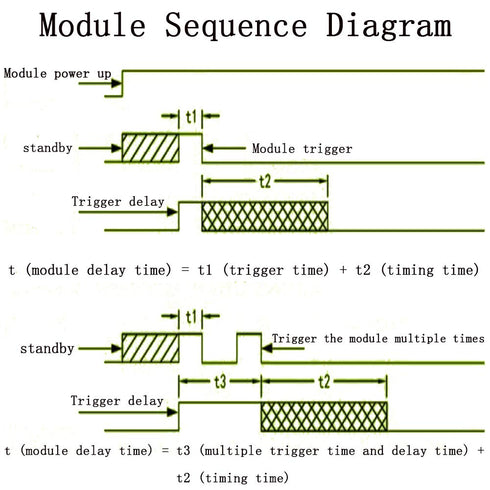

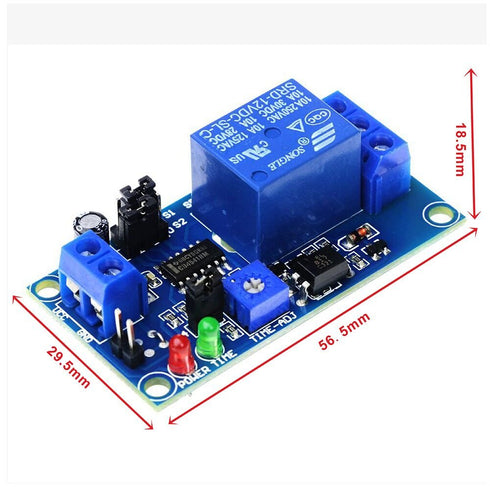

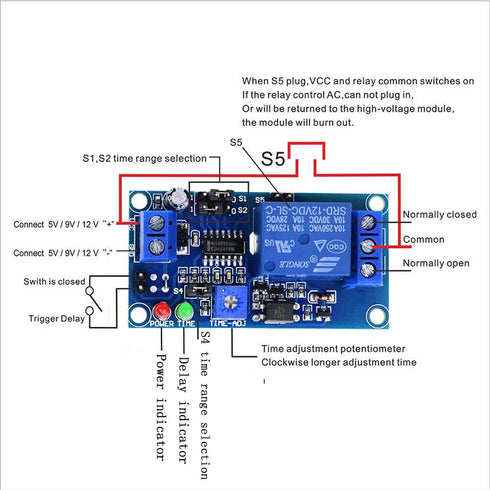

Protect your equipments with this tiny 12V time delay relay circuit. The SMPS based power supply of these modern electronic devices is vulnerable to spikes in the mains line so it gives a time delay of one minute before applying power to the device. This prevents deleterious effects due to inrush current and spurious spikes at power on. Technical Specifications: Operating voltage:12V Trigger: When the trigger end of the module senses that there is a switch closing trigger, the module starts the delay function, and the relay draws in. At the end of the delay, the relay is disconnected Output capacity:can control the DC 30v/10A or AC 250v/10A equipment Quiescent current:20mA Service life:more than 100,000 times Operating temperature:-40-85 Delay Time Range: switch S1, S2, S4 to different positions, potentiometer can adjust different time range. The specific adjustment method is shown in the picture. Module size: 56.5mm X29.5mm X 18.5mm / 2.22 1.16 0.73 inch(L * W * H) Operating Method: 1. Put S1, S2, S4 in the proper position, adjust the potentiometer to adjust to the time you need. 2. When the trigger end of the module senses that there is a momentary closing of the switch, the module starts the delay function, and at the same time the relay pulls in and the delay ends and the relay recovers. 3. When the module is triggered for delay, if a trigger signal is received again, the module will re-time until the delay ends. Package Includes: 2 X DC 12v Delay Relay Switch Quality Assurance: Professional manufacturer. The product undergoes rigorous inspection before leaving the factory. If you are not satisfied with the product, please feel free to contact us and we will provide a full refund.

Key Features

• ✅ With 8 time ranges selected shortest 0.1s most up to 1 hour. Protection against power reversal protection diode, better protection module.
• ✅ With optocoupler isolation, enhanced anti-jamming capability, industrial-grade circuit board, parameter permanent memory after power off.
• ✅ With delay adjustment potentiometer clockwise adjustment time longer. The time adjustment range is 0.13s ~ 3700s.

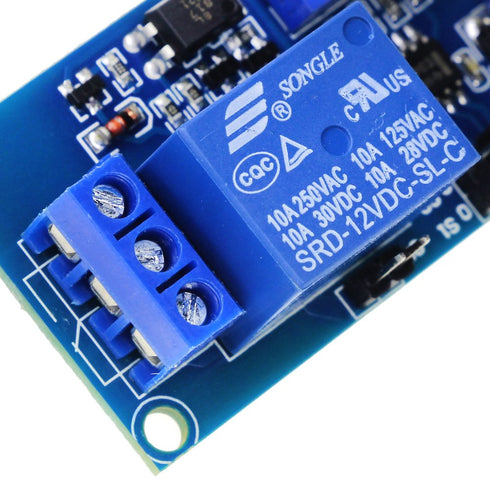

• ✅ Can be accessed by a large current load (250V ac 10A or 30V dc 10A).
• ✅ APPLICATIONS: widely used in home intelligent system, anti-theft alarm system, door control system, automation equipment control, PLC industrial control, electronic development, etc.
