2PCS Digital Load Cell Weight Sensor 1kg 5kg 10kg 20kg High Precision Miniature Load Cells for Arduino

2PCS Digital Load Cell Weight Sensor 1kg 5kg 10kg 20kg High Precision Miniature Load Cells for Arduino DIY Electronic Portable Kitchen Scale Sensors

2PCS Digital Load Cell Weight Sensor 1kg 5kg 10kg 20kg High Precision Miniature Load Cells for Arduino

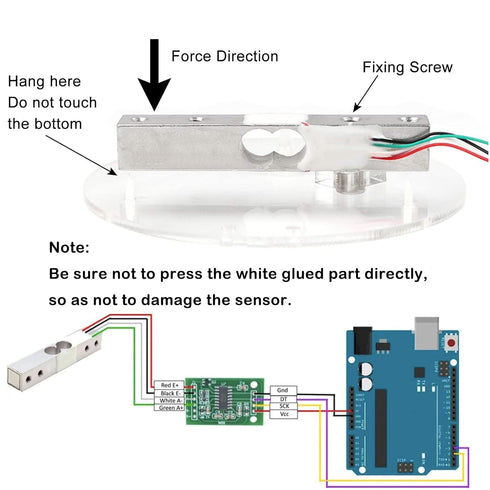

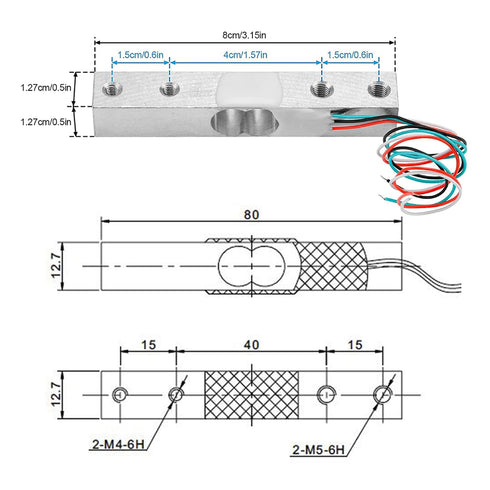

Description Four leads, easy to use,5-10V drive voltage applied, the force is directly output as a voltage change signal. Dimensions: 12.7mm * 12.7mm * 80mm Sensor through the screw hole at one end fixed and the other end to keep floating state, applying gravity following the direction indicated by label. Particular attention must not directly push the white plastic cover part, so as not to damage the sensor. Application: Kitchen scale Module: YZC-133 Capacity: 1?5?10?20 Rated Output: 1.0±0.15mV/V Nolinearity: 0.0005 Repeatability: 0.0003 Hysteresis: 0.0003 Creep(5Min): 0.001 Temperature Effect On Sensitivity: 0.003%RO/°C Temperature Effect On Zero: 0.02%RO/°C Zero Balance: ±0.1%RO Input Resistance: 1066±20O Output Resistance: 1000±20O Insulation Resistance: 2000MO(50V) Recommended Excitation Voltage: 5V Compensated Temperature Voltage: -10~+50°C Operating Temperature Range: -20~+65°C Safe Overload: 120%RO Ultimate Overload: 150%RO Load Cell Material: Aluminium Connecting Cable: ?0.8X180mm Connection: Red to E+ Black to E- Green to A+ White to A- Package included 2 X Weight Sensor

Key Features

• ✅ Weight options: 1kg 5kg 10kg 20kg
• ✅ Connection:Red to E+ / Black to E- / Green to A+ / White to A-
• ✅ Four leads, easy to use,5-10V drive voltage applied, the force is directly output as a voltage change signal.
• ✅ Made of high quality aluminium alloy, parallel beam structure, suitable for electronic kitchen scales, small appliances force measurement, pet feeders and other intelligent weighing equipment.
• ✅ You will get 2pcs load cell weight sensor. Please feel free to ask any questions you may have and will respond within 24 hours.
