2Pcs PCT2075 11 Bit Higher Accuracy ADC Measurement I2C Temperature Sensor, Compatible with QT/Qwiic

2Pcs PCT2075 11 Bit Higher Accuracy ADC Measurement I2C Temperature Sensor, Compatible with QT/Qwiic + pins

2Pcs PCT2075 11 Bit Higher Accuracy ADC Measurement I2C Temperature Sensor, Compatible with QT/Qwiic

Features: Outgoing line: Power pin The sensors on the breakout require a voltage between 2.7V and 5.5V, and can be easily used with most microcontrollers, from Arduino to Feather or something else. Vcc - This is the power pin. To power the circuit board, provide it with a power supply that is the same as the logic level of the microcontroller - for example, for a 5V micro like Arduino, use 5V GND - Common ground for power and logic I2C logic pin SCL - This is the I2C clock pin connected to the I2C clock line of the microcontroller. SDA - This is the I2C data pin connected to the I2C data cable of the microcontroller STEMA QT - These connectors allow you to connect to the development board using STEMA QT connectors or to connect to other things using various related accessories Other pins INT - This is the interrupt pin. You can set PCT2075 to activate this pin when the temperature threshold is reached or exceeded. A0, A1, A2- I2C address pins. Please refer to the "I2C Address Selection" section below I2C address selection One improvement of PCT2075 compared to its replaceable LM75 is its ability to have three times the number of I2C addresses. Interestingly, they achieve this by allowing three address pins A0, A1, and A2 to be in one of three states, low (0), high (1), or floating (F). This means there are 33 (27) possible addresses. Connect the address pin to the low level, connect the logical level of the device to the high level, or suspend the pin. The PCT2075 temperature sensor is a 'code compatible' embedded alternative to the very common 12C temperature sensor LM75. However, compared to the LM75, the 11-bit ADC in the PCT207 five provides better measurements than the LM75's 9-bit ADC. Package included: 2Pcs PCT2075 Temperature Sensor 11 Bit Higher Accuracy ADC Measurement I2C Temperature Sensor Compatible to QT/Qwiic with Pins

Key Features

• ✅ The PCT2075 temperature sensor is a "code compatible" embedded alternative to the very common 12C temperature sensor LM75. However, compared to the LM75, the 11-bit ADC in the PCT207 five provides better measurements than the LM75's 9-bit ADC. In addition, since PCT2075 allows the address pin to operate in three states (high, low, and floating), it is the same total There are 27 PCT2075s online and only 8 LM75s.
• ✅ Power pin. The sensors on the breakout require a voltage between 2.7V and 5.5V, and can be easily used with most microcontrollers, from Arduino to Feather or something else. Vcc - This is the power pin. To power the circuit board, provide it with a power supply that is the same as the logic level of the microcontroller - for example, for a 5V micro like Arduino, use 5V.
• ✅ GND - Common ground for power and logic. I2C logic pin. SCL - This is the I2C clock pin connected to the I2C clock line of the microcontroller. SDA - This is the I2C data pin connected to the I2C data cable of the microcontroller. STEMA QT - These connectors allow you to connect to the development board using STEMA QT connectors or to connect to other things using various related accessories
• ✅ INT - This is the interrupt pin. You can set PCT2075 to activate this pin when the temperature threshold is reached or exceeded. A0, A1, A2- I2C address pins. Please refer to the 'I2C Address Selection' section below. I2C address selection

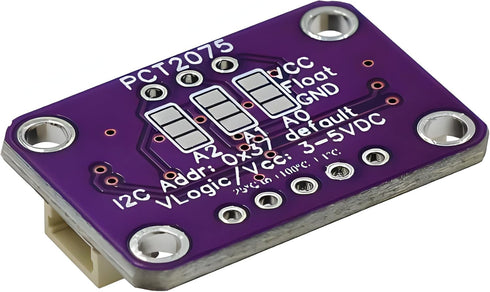

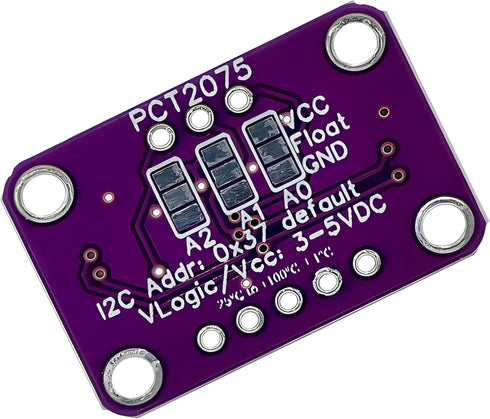

• ✅ One improvement of PCT2075 compared to its replaceable LM75 is its ability to have three times the number of I2C addresses. Interestingly, they achieve this by allowing three address pins A0, A1, and A2 to be in one of three states, low (0), high (1), or floating (F). This means there are 33 (27) possible addresses. Connect the address pin to the low level, connect the logical level of the device to the high level, or suspend the pin.
