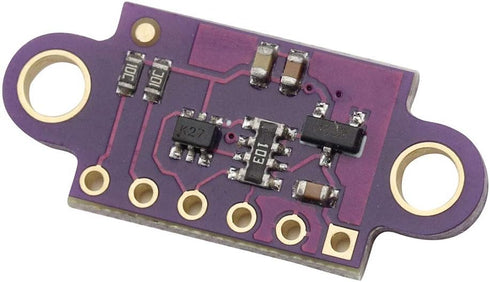

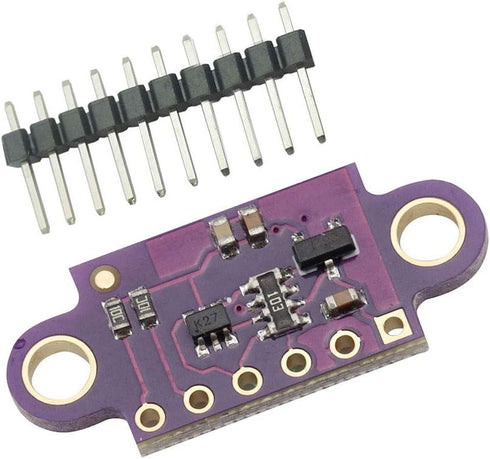

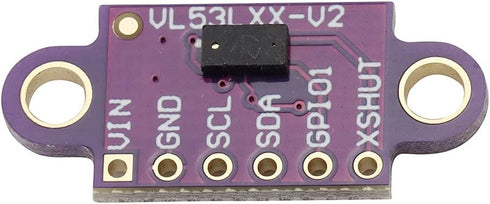

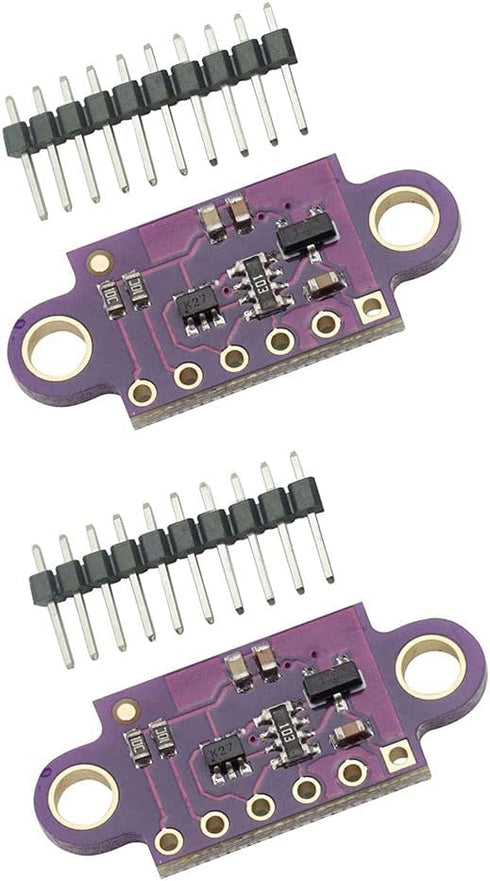

2PCS VL53L0X Time of Flight Ranging Sensor Breakout 940nm Laser Accurate Distance Module I2C IIC

2PCS VL53L0X Time of Flight(TOF) Ranging Measurements Sensor Breakout 940nm Laser Fast Accurate Distance Ranging Module I2C IIC

2PCS VL53L0X Time of Flight Ranging Sensor Breakout 940nm Laser Accurate Distance Module I2C IIC

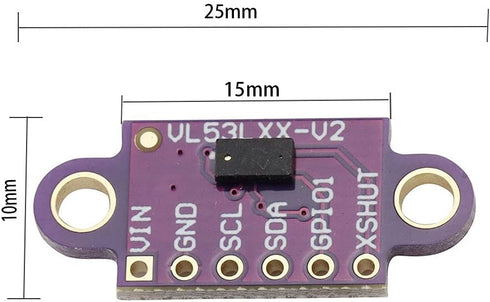

Features: Model: GY-VL53L0X Use chip: VL53L0X Power supply: 2.8-5v Ranging sensor with advanced embedded micro controller Communication method: IIC communication protocol (fully compatible with 3-5v system) Module size: 10mm*15mm, mounting hole 3mm Ultra-small size makes it easy to install in narrow spaces Description The VL53L0X is a new generation Time-of-Flight (ToF) laser-ranging module housed in the smallest package on the market today, providing accurate distance measurement whatever the target reflectances unlike conventional technologies. It can measure absolute distances up to 2m, setting a new benchmark in ranging performance levels, opening the door to various new applications. Ranging measurements are available through the sensor s I C (TWI) interface, which is also used to configure sensor settings, and the sensor provides two additional pins: a shutdown input and an interrupt output. The VL53L0X s 940nm emitter (Vertical Cavity Surface-Emitting Laser), is totally invisible to the human eye, coupled with internal physical infrared filters, it enables longer ranging distance, higher immunity to ambient light and better robustness to cover-glass optical cross-talk. Package include: 2x VL53L0X Laser ranging sensor module

Key Features

• ✅ Name: Fully integrated miniature VL53L0X Laser ranging sensor module
• ✅ Power supply: 2.8-5V
• ✅ Easy integration:Single reflowable component,No additional optics,Single power supply,I2C interface for device control and data transfer,Reset and interrupt GPIO, Programmable I2C address
• ✅ Fast, accurate distance ranging: Measures absolute range up to 2m, Reported range is independent of the target reflectance,Operates in high infrared ambient light levels, Advanced embedded optical cross-talk compensation to simplify cover glass selection,opening the door to various new applications.
• ✅ Widely Applications 1.User detection for Personal Computers/ Laptops/Tablets and IoT (Energy saving); 2. Robotics (obstacle detection); 3. White goods (hand detection in automatic faucets, soap dispensers etc...); 4. Laser assisted Auto-Focus. Enhances and speeds-up camera AF system performance, especially in difficult scenes (low light levels, low contrast) or fast moving video mode.

✅ Product Dimensions: 0.98 x 0.39 x 0.16 inches

✅ Color: White
