3-Pin 12mm COB LED Strip Connector Kit, Pack of 25 for Solderless Strip-to-Wire and Strip-to-Strip Joints

3-Pin 12mm COB LED Strip Connector Kit for Solderless Strip-to-Wire and Strip-to-Strip Joints on 5V 12V 24V DC COB LED Light Strips (Pack of 25)

3-Pin 12mm COB LED Strip Connector Kit, Pack of 25 for Solderless Strip-to-Wire and Strip-to-Strip Joints

Biantie La - Simply connect and illuminate! 12mm 3-pin COB LED Strip Connector Kit This 12mm COB LED strip connector kit provides everything needed for a professional DIY installation. Featuring a range of 25 compact connectors to join strips end-to-end or attach to power supply and controllers, you can easily configure custom lighting for residential, retail or commercial spaces. Featuring an innovative clamp-on design, these 3-pin connectors simply snap onto the copper pads of your LED strip to create a permanent joint. Slowly clamping down the connectors with a pair of pliers (not included) presses the contacts together, allowing power to flow freely through the connection. Once secured, the connectors cannot be detached. Only works with 12mm wide COB LED strip lights with 3 soldering pads. Not compatible with 10mm 8mm or 5mm LED strips. What's Included: 5 Strip-to-Strip Connectors - For end-to-end jointing of 12mm LED strips. Simply snap strips into the connectors and clamp down with pliers (not included) to create a secure bond. 20 Strip-to-Wire Connectors (10 reverse compatible for wire-to-strip) - For connecting 12mm LED strips to 22 AWG power wires or controllers. How to Use the LED Strip Splicing Connectors 1. Select the appropriate length of 22 AWG wire without stripping the insulation. 2. Insert the wires into the wire slot on the connectors. Use pliers to gently clamp down and secure the wires in place. 3. Insert your LED strip into the strip holder end of the connectors, aligning the solder pads on your strip with the 3 pin needles in the connectors. 4. Use pliers to firmly press on the pin needles of the connectors slowly to ensure they fully pierce the wires and LED strip. 5. The connection is now complete.

Key Features

• ✅ 12mm 3-Pin COB LED Strip Connector Kit: This 25-piece connector set is customized for 12mm wide COB LED strips with 3 solder pads. It is not compatible with 3mm, 5mm, 8mm, 10mm or other COB LED strip types.

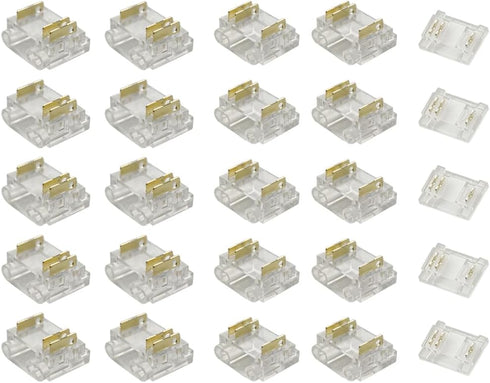

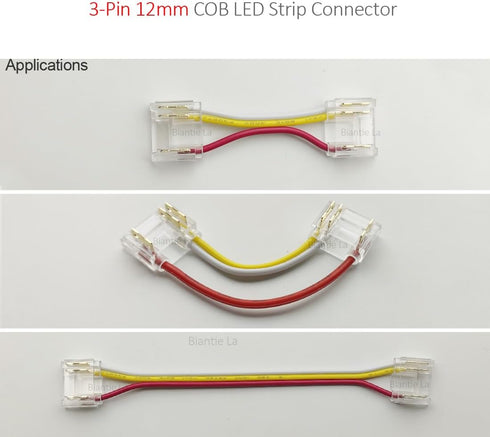

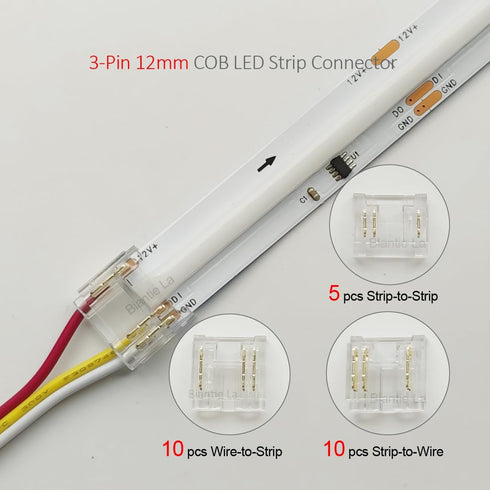

• ✅ 3pin Connectivity Solution: This kit includes 5 strip-to-strip gapless connectors and 20 strip-to-wire connectors (10 of which are reverse, for wire-to-strip joints) to provide connectivity to power supply or controllers. Easily create jumper connections or 90-degree angled corner connection and seamlessly join LED strips.

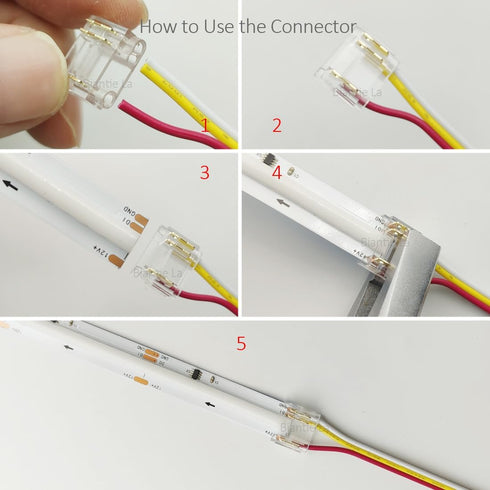

• ✅ Transparent Solderless Design: These 3-pin splices do not require any soldering. Use pliers (not included) to firmly press down and secure the copper tabs to pierce the strips and wires for conductivity. Press down slowly until the copper tabs are level with the surface of the connectors. Once secured, the clips cannot be detached or reused.
• ✅ 3-PIN COB Strip Polarity for Proper Operation: For 3-PIN COB LED strip installations, ensure the negative GND wire, positive +12V/+24V wire and remaining data signal wire (DO/DI/DAT) are correctly matched. The data signal line does not connect to power. Incorrect installation can prevent lighting or only display white color.
• ✅ Made for Standard 22 AWG Wire: These COB LED strip connectors are designed for standard 22 AWG wire. Non-standard or other gauge wires such as 20 AWG or 18 AWG may not fit securely into the connectors.
