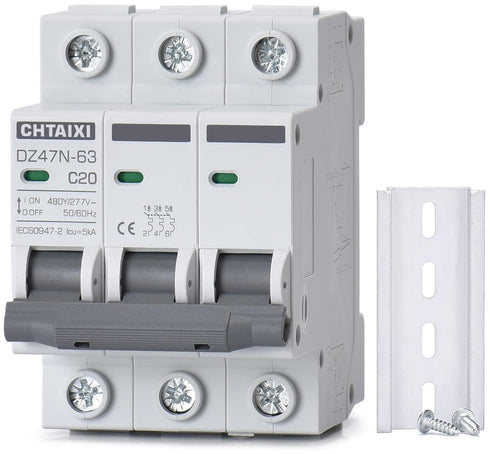

3 Pole DIN Rail Mount Circuit Breaker, 20 Amp 480V AC Miniature Circuit Breaker, Thermal Magnetic Trip
SKU: PGABL1457879
VENDOR: CHTAIXI
You Save: $3.28 (13%)
Hurry! Only 10 Left in Stock!
Free Shipping Across the United States
All orders within the United States qualify for 100% free shipping.
Fast Processing & Dispatch
All orders are shipped within 1 business day after purchase.
30-Day Free Returns
Not satisfied? You can return your order for free within 30 days after delivery.
3 Pole DIN Rail Mount Circuit Breaker, 20 Amp 480V AC Miniature Circuit Breaker, Thermal Magnetic Trip AC Disconnect Switch MCB C20
3 Pole DIN Rail Mount Circuit Breaker, 20 Amp 480V AC Miniature Circuit Breaker, Thermal Magnetic Trip

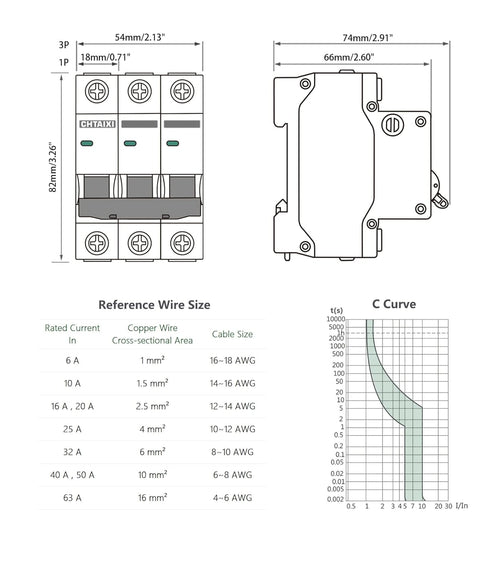

Specifications Product type: AC Miniature Circuit Breaker Rated operational voltage: 240V / 480V AC (optional) Rated current [In]: 10 A / 16 A / 20 A / 25 A / 32 A / 40 A / 50 A / 63 A (optional) Poles: 3P Trip unit technology: Thermal-magnetic Curve code: C Breaking capacity: 6 kA (240V) / 5 kA (480V) Ics=Icu Uimp: 4 kV Mechanical durability: 10000 cycles Electrical durability: 4000 cycles Operating temperature: -13 F(-25 ) ~ 140 F(60 ) Mounting support: 35 mm DIN rail Tightening torque: 2.5 N.m Standard: IEC60947-2 Package includes 1 x AC miniature circuit breaker 1 x DIN rail 2 x Screws
Key Features

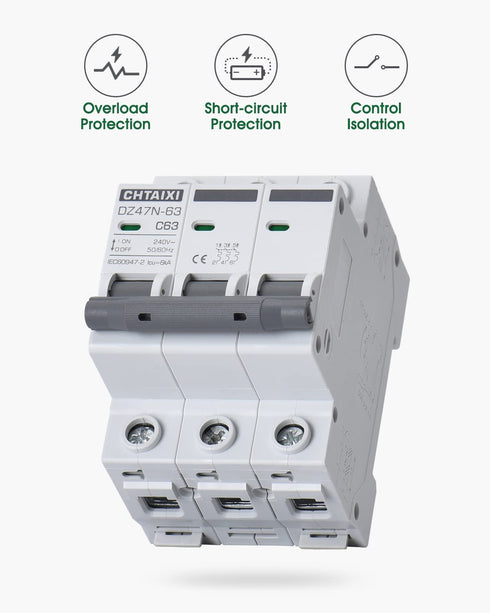

- ✅ FUNCTIONS: Used to protect 480Y/277V AC circuit from overload and short circuit damage, and can also be used for control and isolation.
- ✅ CURVE C: Magnetic trip range 5-10 times rated current.

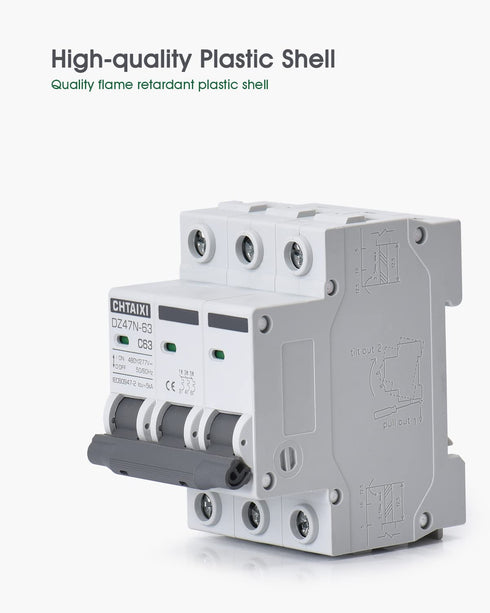

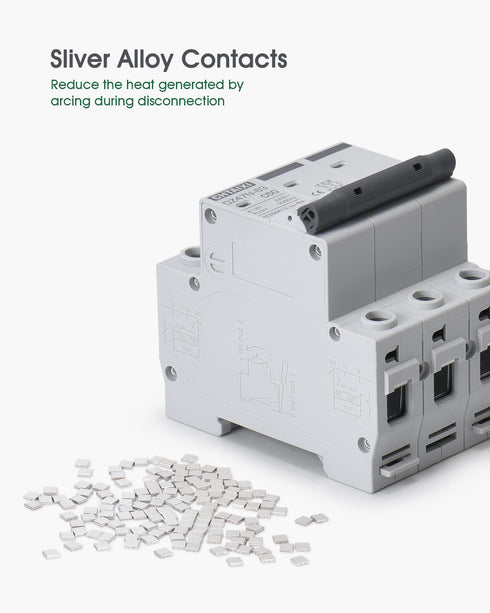

- ✅ QUALITY: Silver alloy contacts, flame retardant material shell, color indicator.
- ✅ APPLICATION: Can be used in home circuits, high power circuit, or other 50/60Hz AC systems.
- ✅ INSTALLATION: 35mm DIN rail mount, Screw clamp wires (Soft silicone wire needs to crimp fixed the wire end with copper crimp first).
Shipping & Guarantees
- ✅ FREE standard shipping within the United States (3 6 business days)
- ✅ 100% money-back guarantee for lost or damaged items
- ✅ Secure checkout with encrypted payment processing
- ✅ Shipping via UPS, FedEx, and USPS
- ✅ Ships to lower 48 states only (no PO Boxes / APO / FPO)
Returns
- ✅ 30-day hassle-free returns
- ✅ Items must be unused and in original packaging
- ✅ Full refund if item is not delivered
- ✅ Guaranteed delivery within 6 7 business days
Payment Methods
✅ Credit Cards, PayPal, Shop Pay, Apple Pay, Google Pay, Amazon Pay, Meta Pay
Customer Support
✅ Questions? Contact us at Support@GiftAbay.com
We respond within 24 hours on business days.
SEO Title: 3 Pole DIN Rail Mount Circuit Breaker, 20 Amp 480V AC Miniature Circuit Breaker, Thermal Magnetic Trip AC Disconnect Switch MCB C20
Keywords: pole, rail, mount, circuit, breaker, 480v, miniature, toolshomeimprovement, electrical, breakers, loadcentersfuses, circuitbreakers
Category: Tools & Home Improvement
Subcategories: Electrical, Breakers, Load Centers & Fuses, Circuit Breakers, Miniature Circuit Breakers
