32 Amp Dual-Pole Circuit Breaker Switch, Din Rail Mounted Home Use Circuit Breaker for Household Appliance Circuit Security Protection (DZ47-63 C32)

32 Amp Dual-Pole Circuit Breaker Switch for Household Appliance Circuit Security Protection, Din Rail Mounted (DZ47-63

Selection Guide: The single-pole circuit breaker individually controls the on-off of the live wire, which is suitable for 220V lighting circuit. The double-pole circuit breaker can simultaneously control the on-off of the live wire and the neutral wire, which is suitable for 220V socket circuit with leakage protection. The three-pole circuit breaker can simultaneously control the three-phase 380V three-phase live wire in the circuit. The four-pole circuit breaker can simultaneously control three-phase 380V three-phase live wire and a set of neutral wires, which is suitable for controlling industrial power plant circuits. The single-pole + N does not disconnect the neutral line and only disconnects the live line, which is suitable for situations where the neutral line cannot be disconnected. Instruction: DZ47 series miniature circuit breakers are mainly used for AC 50-60Hz. The rated voltage is 400V, which can protect against overload and short circuit in the corresponding current range. The electrical devices and lighting circuits can be switched on and off infrequently under normal conditions. It is not suitable for direct protection of high inductive and high capacitive loads (such as motors, capacitors and or electric heating equipment). The wire diameter and the rated current of the circuit breaker need to be selected according to the actual power used. Since there's no manual, professional installation is highly recommended or you can refer to the universal wiring diagram.

Key Features

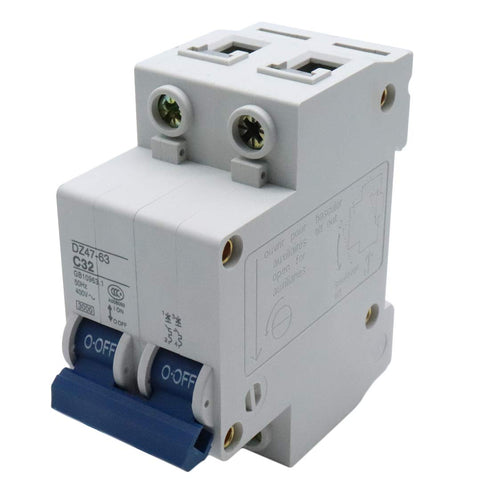

• ✅ FUNCTION - This DZ47-63 C32 double-pole circuit breaker is a circuit breaker dedicated to 32Amp AC 50Hz power circuit for circuit security protection.
• ✅ APPLICATION - DZ47-63 series miniature circuit breakers are suitable for residential building lighting distribution system (type C) or motor power distribution system (type D).

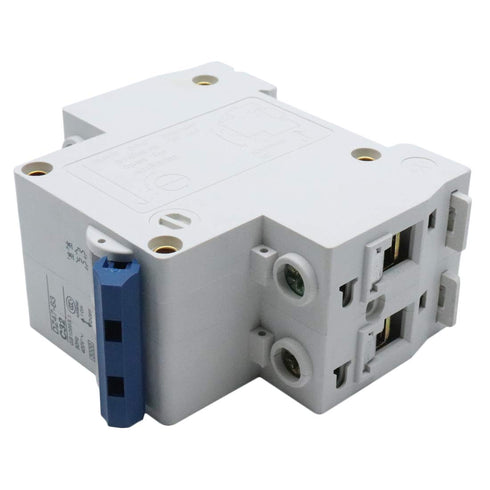

• ✅ INSTALLATION - The backside is a standard DIN rail installation, with track fixing buckle, can be easily installed on the DIN standard guide rail in distribution box, bistable locking clip, the installation more convenient.
• ✅ CONSTRUCTION - With rapid arc extinguishing system and circuit protection electromagnetic trip device; With thermoplastic shell, which is cured under heat or other environments or has the characteristics of insolubility and insulation.
• ✅ DIFFERENCE NOTICE - Please allow 1-3mm measurement difference due to manual measurement and a certain degree of color difference caused by camera lenses, different phone screens, and different monitors.
