4 Way Pneumatic Manifold Air Distribution Block, G1/2 Supply Port, G1/4-Inch Output Port, Aluminum Alloy

4 Way Pneumatic Manifold Air Distribution Block, G1/2 Supply Port, G1/4-Inch Output Port,Pneumatic Air Compressor Manifold Fitting,Aluminum Alloy,Medium Flow (30x30mm)

4 Way Pneumatic Manifold Air Distribution Block, G1/2 Supply Port, G1/4-Inch Output Port, Aluminum Alloy

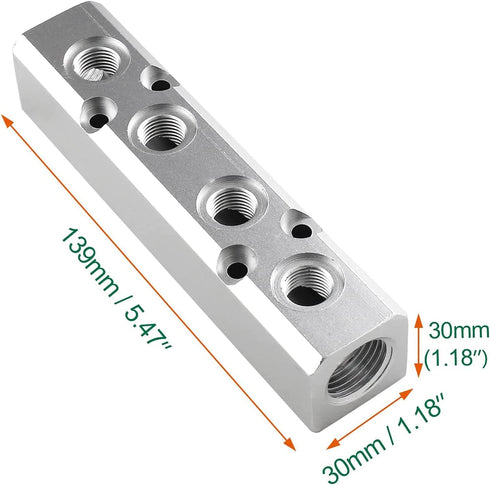

Size:AL-4-M Product Specifications: Material:Aluminum. Size:AL-4-M Type:30mmx30mm,4Way. Outlet Inner Diameter:12mm(G 1/4inch) Inlet Inner Diameter:19mm(G 1/2inch) Outlet Port Center Distance: 32mm Mounting Port Center Distance: 20.5mm Mounting Port Diameter: 5.2mm Total Length: 138mm Application: It is suitable for air compressors or gas storage equipment to branch out, or used as a supporting part of machine equipment. Notes: All dimensions are measured manually and there may be small deviations. Please do not use it for other purposes besides fast fluids. Do not exceed the maximum use pressure when using. When connecting the pipe joint and the air pipe, please insert the air pipe into the end. Do not use it in places such as metal powder or dust to prevent malfunction or leakage. Package Content: 1 x Manifold Block.

Key Features

• ✅ Product Name: Air Manifold Block.
• ✅ Good Fuction: Air manifold for distributing pneumatic power to multiple locations from a single source.
• ✅ High pressure resistance and strong sealing.Efficient and stable performance, easy to install and sustainable.
• ✅ It takes one line of air from a air cylinder, compressor, vacuum engine, or other such system and splits it into many of them.
• ✅ Two G1/2inch inlet ports and two G1/4inch outlet ports.Medium Flow,30mm x 30mm

✅ Color: 30x30mm
