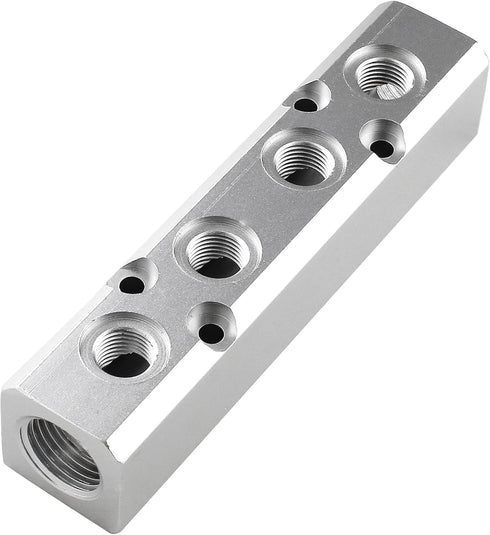

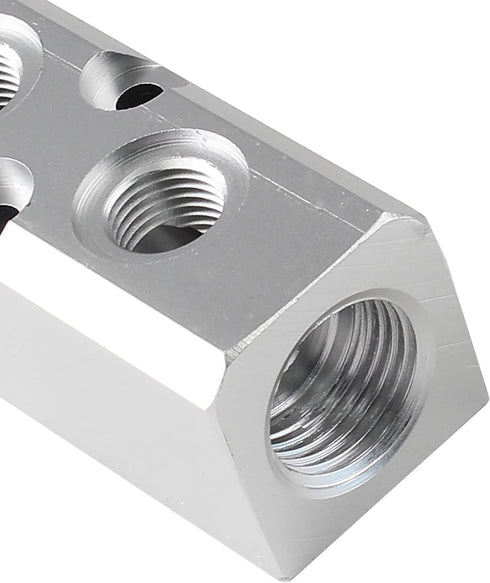

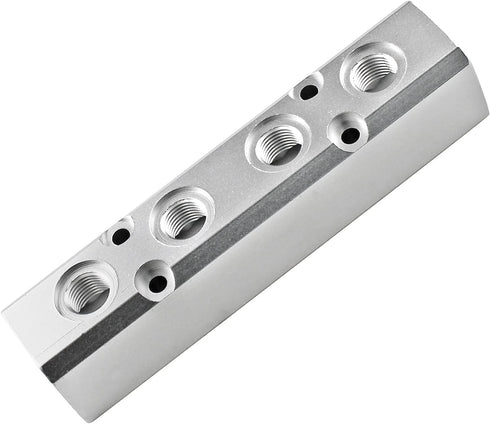

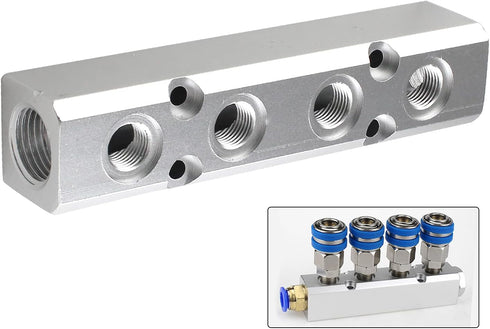

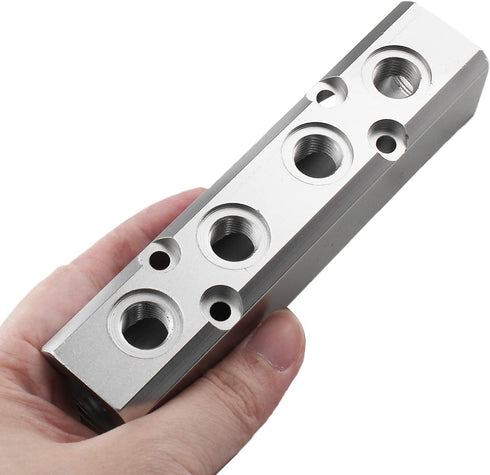

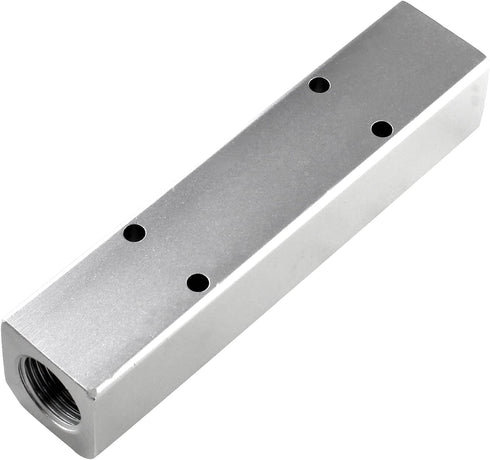

4 Way Pneumatic Manifold Air Distribution Block, Silver Compressed Air Coupler Fast Connector for Compressor

4 Way Pneumatic Manifold Air Distribution Block, Compressed Air Manifold Pneumatic Block, Air Coupler Fast Connector for Pneumatic Air Compressor, Silver

4 Way Pneumatic Manifold Air Distribution Block, Silver Compressed Air Coupler Fast Connector for Compressor

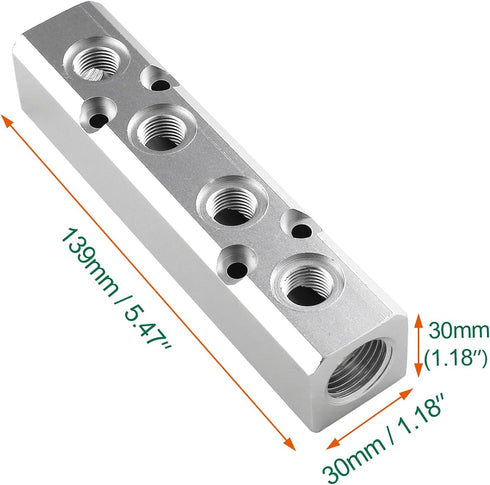

Features: The design of knurled sleeve gives a better grip when connecting and disconnecting these fittings. Quick connect: Coupler is designed for easy- to- operate push type since they are usually used with air compressors. Wide application: This kit can be widely used on different air tools such as air compressors, air blow guns, air nailers etc. Aluminum alloy, high hardness, good sealing. Surface oxidation treatment, not easy to rust. Durable, sturdy, give you long terms use. Thread clear do manual work is delicate, sealing a good long service life. Compatible with most products. Specifications: Material: Metal Type: 4 Ways Outlet Inner Diameter: 12mm/0.47" Inlet Inner Diameter: 18mm/0.7" Mounting Hole Diameter: 5mm/0.2" Total Size: 139x30x30mm/5.47"x1.18"x1.18"(L*W*H) Working pressure: 0 to 1 MPa/145 PSI Guaranteed pressure resistance: 1.2 MPa/175 PSI Working temperature: 32-140 Fahrenheit/0-60 centigrade Package Content: 1 x Manifold Block Notes: Do not exceed the maximum use pressure when using. Please do not use it for other purposes besides fast fluids. When connecting the pipe joint and the air pipe, please insert the air pipe into the end. Do not use it in places such as metal powder or dust to prevent malfunction or leakage. Do not use outside the operating temperature range to prevent the seal material from being worn or leaking. Warm Tips: 1. Due to manual measurement, please allow 1-2mm difference, thanks! 2. Our digital images are as accurate as possible. Because of the difference between the display and the light, the color is slightly different.

Key Features

• ✅ High Quality Material: Mainfold Pneumatic Block made of durable aluminum material with high hardness, oxidation resistance, pressure resistance and abrasion resistance.

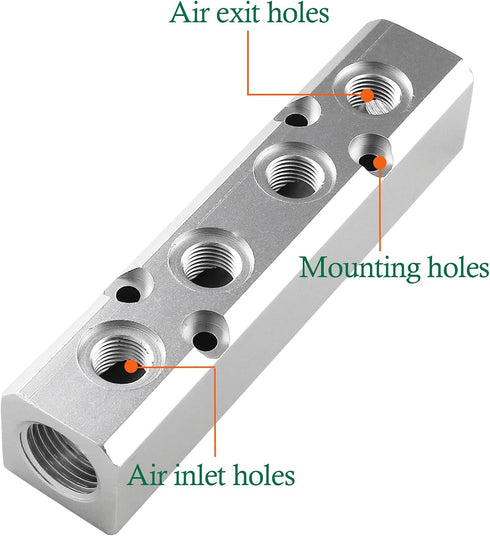

• ✅ Two 0.71" (18mm) inlet ports and four 0.47" (12mm) outlet ports. Installation diameter: 5mm
• ✅ Air manifold for distributing pneumatic power to multiple locations from a single source. Efficient and durable, stable performance, easy installation and sustainable use.
• ✅ Widely Use: Manifold Block suitable for air compressor or storage gas equipment branch outlet, or used as supporting parts of machine equipment, generally installed in the gas terminal branch interface or engineering wiring pipeline branch.
• ✅ Package Content: 1 x Air Distribution Block

✅ Color: Silver Tone
