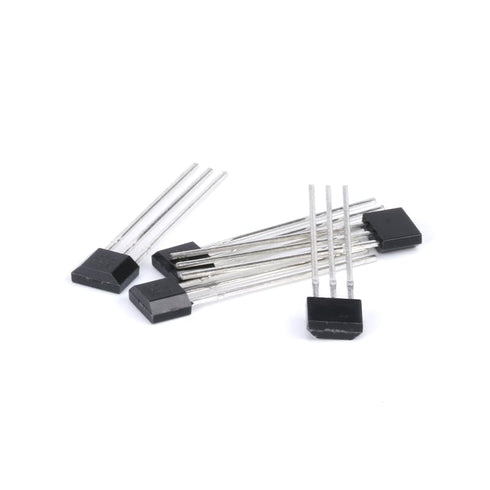

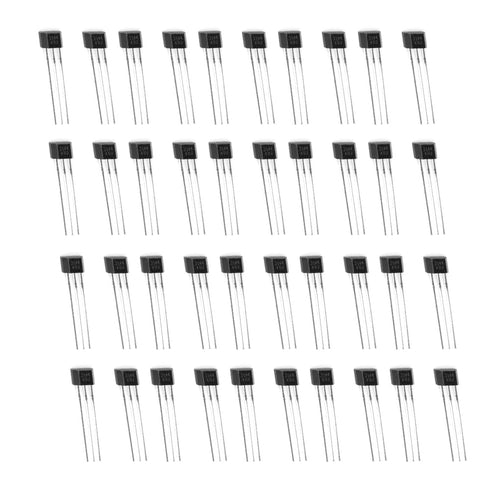

40PCS A3144 Hall Effect Sensor Magnetic Detector 3Pins A3144 TO-92UA for Arduino

40PCS A3144 3144 Hall Effect Sensor Magnetic Detector 3Pins A3144 TO-92UA Hall Sensor for Arduino

40PCS A3144 Hall Effect Sensor Magnetic Detector 3Pins A3144 TO-92UA for Arduino

FEATURES and BENEFITS Superior Temp. Stability for Automotive or Industrial Applications 4.5 V to 24 V Operation … Needs Only An Unregulated Supply Open-Collector 25 mA Output … Compatible with Digital Logic Reverse Battery Protection Activate with Small, Commercially Available Permanent Magnets Solid-State Reliability Small Size Resistant to Physical Stress

Key Features

• ✅ These Hall-effect switches are monolithic integrated circuits with tighter magnetic specifications, designed to operate continuously over extended temperatures to +150°C, and are more stable with both temperature and supply voltage changes.
• ✅ The unipolar switching characteristic makes these devices ideal for use with a simple bar or rod magnet. The four basic devices (3141, 3142, 3143, and 3144) are identical except for magnetic switch points.
• ✅ Each device includes a voltage regulator for operation with supply voltages of 4.5 to 24 volts, reverse battery protection diode, quadratic Hall-voltage generator, temperature compensation circuitry, small signal amplifier, Schmitt trigger, and an open-collector output to sink up to 25 mA.
• ✅ With suitable output pull up, they can be used with bipolar or CMOS logic circuits. The A3141– and A3142– are improved replacements for the UGN/UGS3140–; the A3144– is the improved replacement for the UGN/UGS3120–
• ✅ Superior Temp. Stability for Automotive or Industrial Applications
