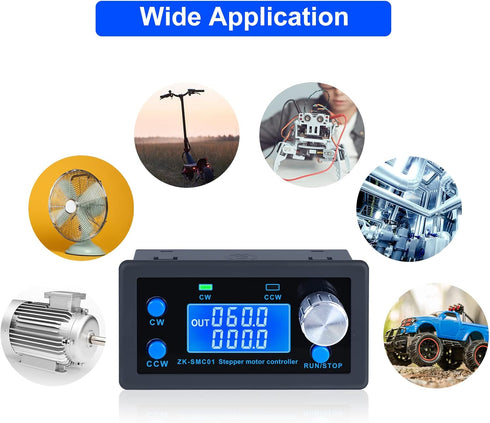

5-30V, 1/128 17/23 CNC Stepper Motor Controller (Driver Needed), PEMENOL DC Microstep Resolution, Adjustable Speed

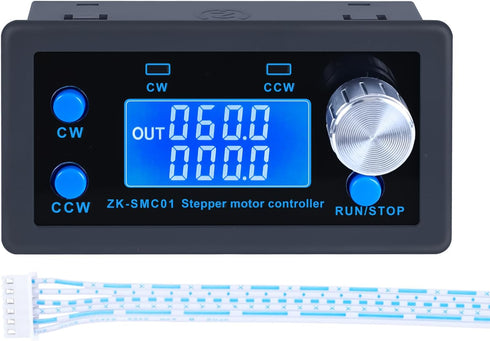

CNC Stepper Motor Controller (Driver Needed), PEMENOL DC 5-30V, 1/128 Microstep Resolution, Adjustable Speed, Angle, Delay & Direction, LCD Display Compatible with NEMA 17/23 Motors

5-30V, 1/128 17/23 CNC Stepper Motor Controller (Driver Needed), PEMENOL DC Microstep Resolution, Adjustable Speed

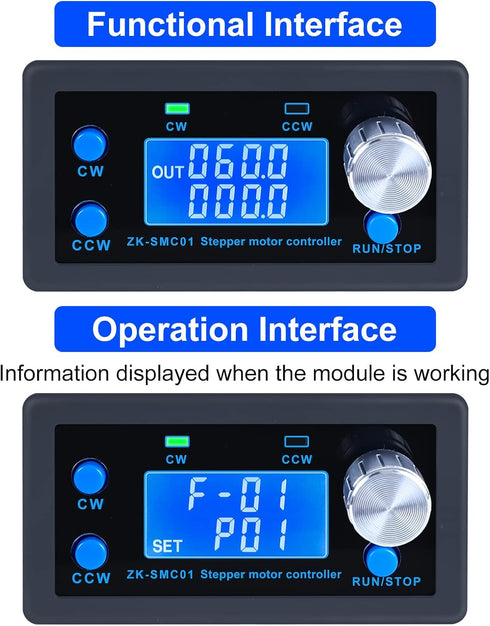

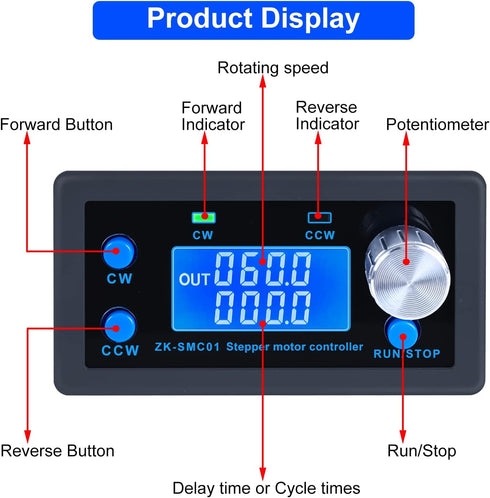

1. On the operation interface, rotate the encoder to adjust the speed, CW key -- forward rotation, CCW key -- reverse rotation, RUN/STOP key -- operation stop exit. 2. Press and hold the encoder to enter the menu setting. 1. On the menu setting interface, rotate the encoder to adjust and change the parameter codes F-01~F-13. 2. Long press the encoder, save the parameters and exit to enter the operation interface. 1. On the menu setting interface, briefly press the encoder to enter the parameter setting state of F-XX corresponding menu, the parameter flashes, and then briefly press Shift to rotate the encoder to adjust the parameter. 2. Press the RUN/STOP key briefly to exit the parameter setting and return to the number adjustment interface of the main menu.

Brand: PEMENOL

motor, cnc, resolution, stepper, speed, motors, controller driver, needed pemenol, nema motors, direction, driver needed, needed Industrial & Scientific Industrial Electrical Controls & Indicators Controllers Motor Speed Controllers

Key Features

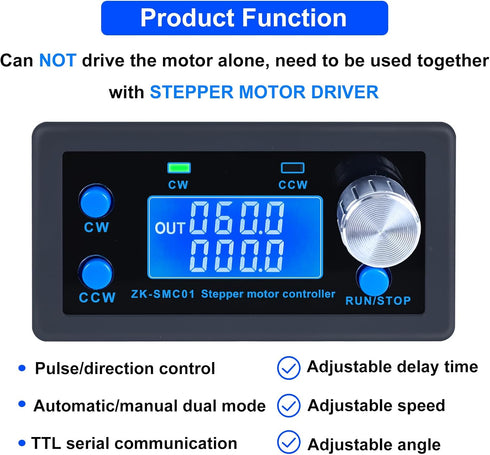

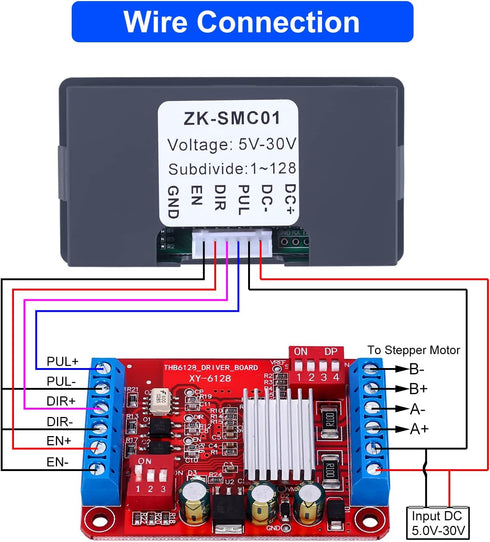

• ✓ Extra Driver NeededSupports fine-tuning of speed, angle, direction, and delay time. With a 1/128 microstep resolution, the module enables detailed and consistent stepper motor control. Use with an external driver (not included).
• ✓ 9 Predefined Operating ModesFeatures 9 selectable modes, including forward/reverse rotation, looped cycles, and timed delays. Easily switch between modes using onboard buttons or external signal input.
• ✓ Manual or Automatic Rotation DirectionChoose from automatic or manual direction control based on your system needs. Directional changes are made through simple interface inputs for streamlined control of motor behavior.
• ✓ Adjustable Menu Settings with Knob EncoderOffers 13 parameter settings, such as pulse count, rotation cycles, delay duration, and speed levels. Setup is efficient with a combination of interface buttons and a built-in rotary encoder.
• ✓ Clear LCD Display with Memory RetentionIncludes an integrated LCD screen to display real-time parameters for easy configuration. Built-in power-off memory stores your last settings for future use without manual reset.

Product Details

• ✓ Item Weight: 0.01 Kilograms
• ✓ Color: Blue
• ✓ Material Type: iron
• ✓ Included Components: No
