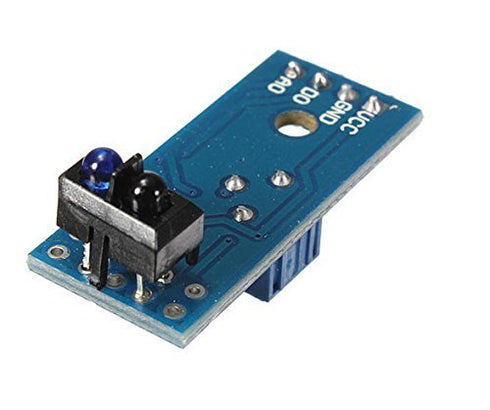

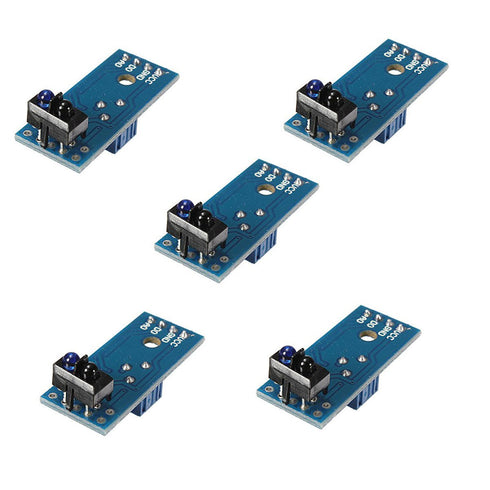

5 PCS TCRT5000 Infrared Reflective Sensor IR Photoelectric Switch for Arduino - Obstacle Avoidance Module

5 PCS TCRT5000 Infrared Reflective Sensor IR Photoelectric Switch Barrier Line Obstacle Avoidance Module Lines Follow Occupation Avoiding Module for Arduino

5 PCS TCRT5000 Infrared Reflective Sensor IR Photoelectric Switch for Arduino - Obstacle Avoidance Module

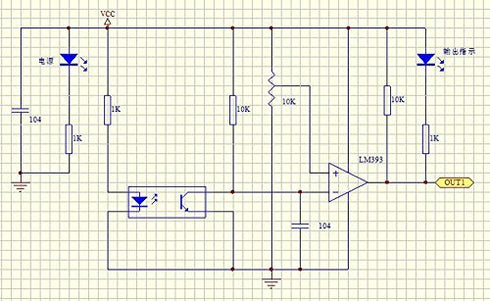

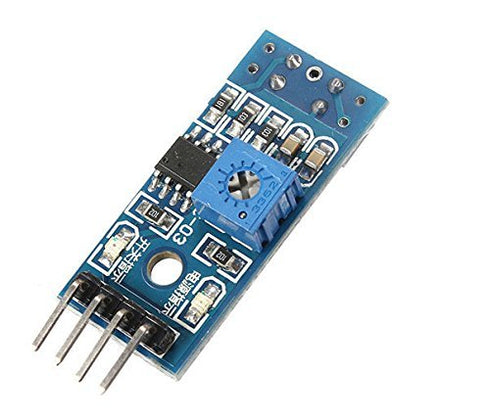

Description: TCRT5000 infrared sensor emits infrared emitting diode continuously, when no infrared rays are emitted or reflected back, but the strength is not large enough - the phototransistor has been turned into the off state and the output terminal of the module is high, indicating that the diode has been turned in the off state; in the object can be detected within the detection range - and the intensity of the reflected infrared rays is large enough - phototransistor is saturated - and the output terminal of the module is low the indicator LED lights up. Characteristic: Using TCRT5000 infrared reflection sensor The detection range: 1mm ~ 8mm apply focal length of 2.5mm The comparator output signal clean - good waveform - driving ability - more than 15mA With a multi-turn precision potentiometer adjustable sensitivity adjustment The working voltage of 3.3V ~ 5V The output format: digital switching outputs (0 and 1) Fixed screw holes for easy installation Small board size: 32 x 14 mm/ 12.6 x 5.5 inch Using an LM393 wide voltage comparator widely used: Counter pulse data acquisition Fax paper shredder detection Obstacle detection Black and white line detection Package included: 5 x TCRT5000 Infrared Reflection Sensor Module IR Barrier Line Athletics Photoelectric Sensor

Key Features

• ✅ ?Parametric?Uses LM393 wide voltage comparator; Uses the TCRT5000 infrared reflectance sensor; The working voltage of 3.3V ~ 5V; The detection range: 1mm ~ 8mm apply focal length of 2.5mm.
• ✅ ?Adjustable Sensitivity?Using infrared reflective sensor TCRT5000, designed with many adjustable precision potentiometer to adjust sensitivity.
• ✅ ?Advantage?The comparator output signal is clean - good waveform - driving ability - more than 15mA
• ✅ ?Connection method?VCC-pin: Connect the positive pole of the power supply (3-5V); GND-pin: Connect the negative pole of the power supply; DO-pin: switch signal output; AO-pin: analog signal output.
• ✅ ?Wide Application?For obstacle detection, Watt meter pulse data sampling, Detecting black and white line, Detecting Fax machine and shredder paper, for limits of movement on robotic arm.
