5 Set 360 Degree Rotary Encoder Code Switch - Push Button EC11 Digital Potentiometer with 20mm Handle Length

5 Set 360 Degree Rotary Encoder Code Switch Push Button EC11 Digital Potentiometer with Switch 5 Pin Handle Length 20mm and Knob Cap for Arduino Electronics Projects

5 Set 360 Degree Rotary Encoder Code Switch - Push Button EC11 Digital Potentiometer with 20mm Handle Length

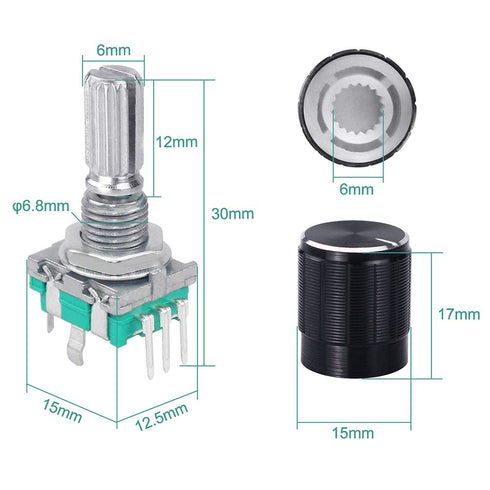

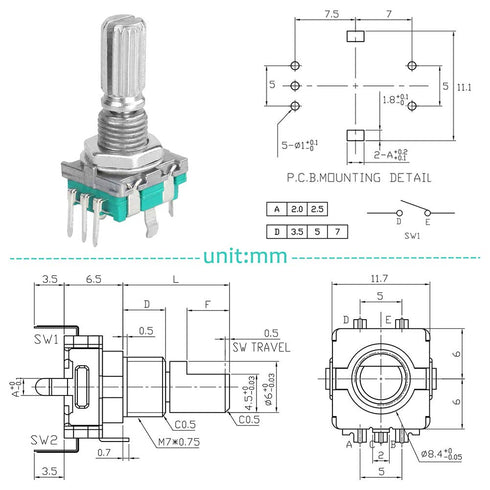

WayinTop: Your Top Way to Inspiration. Why are rotary encoders so cool? Unlike a variable resistor/potentiometer they have infinite travel in any direction and because they produce a digital "Gray code" you can scale their readings to whatever range you like. The dual direction makes them useful for increasing or decreasing a value within a variable or navigating menus. Finally, many of these rotary encoders come with a centre push button, which can be used to select menu items, reset a counter or do anything you can think of that might suit a momentary push button. Specifications: Rotary Shaft Length: Approx. 12mm Shaft Overall Length: Approx. 20mm Shaft Diameter: Approx. 6mm Dimension (LxW): Approx. 15x12mm Rated voltage: DC 5V Max. rated current (Impedance load): Each phase conductor: 0.5mA, Min. 0.5mA General conductor: 1mA (MAX. 10mA, MIN. 0.5mA) Position: 20 Pulse: 20 360-degree rotation Rotational life: Min. 50000 cycles Switch life: Min. 20000 cycles Package Included: 5 x 360 Degree Rotary Encoder Code Switch Digital Potentiometer with Switch 5 x Knob Cap

Key Features

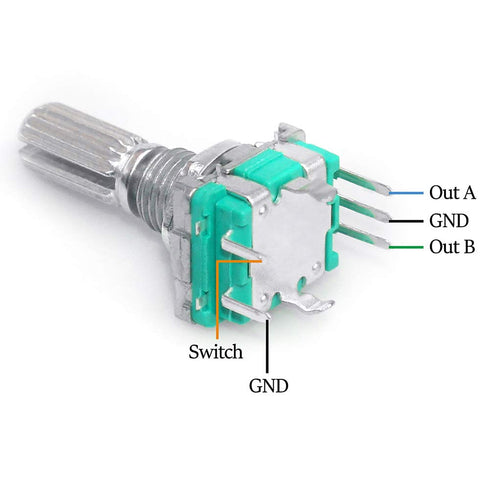

• ✅ ?Rotary Encoder?These are continuous rotary encoder switch; Type: Encoder code with Switch; Adjustment method: 360 Degree Rotary; Number of digits: 20 digits; Pins: 5.
• ✅ ?Encoder Specification?Shaft Diameter: 6mm/0.24inch; Shaft Length: 20mm/0.79inch; With built in push button switch (push to operate).
• ✅ ?Widely Application?Can be used for data entry as with modern in car CD players, for volume & on/off control or data selection via LED or LCD display; perfect for use with PIC or ATMEL microcontrollers.

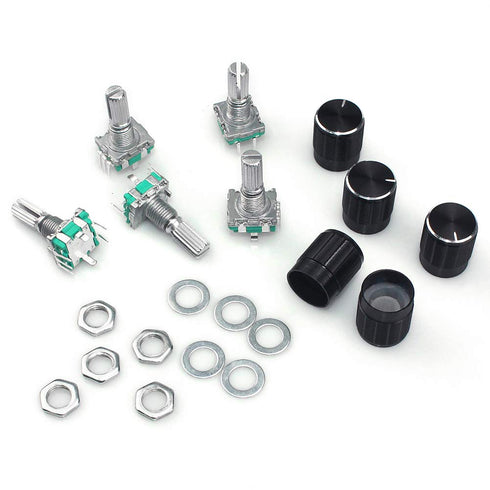

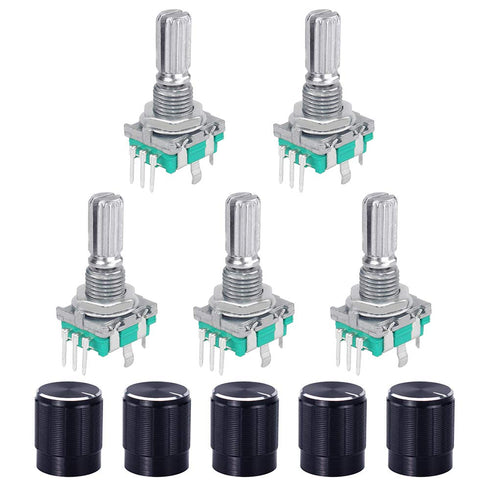

• ✅ ?Package Included?5 x 360 Degree Rotary Encoder Code Switch Push Button EC11 Digital Potentiometer + 5 x Knob Cap
