5dBi 1090MHz 978MHz NooElec ADS-B Discovery (High Gain) Antenna Bundle - & Antenna Bundle for SMA and MCX-Connected

NooElec ADS-B Discovery 5dBi (High Gain) Antenna Bundle - 1090MHz & 978MHz Antenna Bundle for SMA and MCX-Connected Software Defined Radios (SDRs)

5dBi 1090MHz 978MHz NooElec ADS-B Discovery (High Gain) Antenna Bundle - & Antenna Bundle for SMA and MCX-Connected

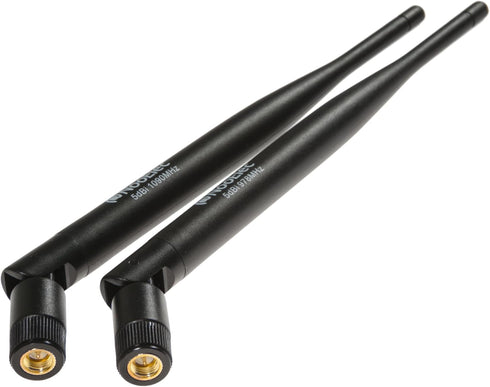

A pair of 5dBi, medium-sized, lightweight antennas with 978MHz and 1090MHz center frequencies, respectively, designed for portable ADS-B applications. Also included are a pair of 15cm (6") male MCX to female SMA pigtail cables, made from RG316 cable for low loss. As such, these antennas can be used with MCX-input or SMA-input devices without further purchase. Each antenna is only 20g and 19cm (7.5") long, 5dBi, with a VSWR of 1.5:1 or better at their respective center frequencies. A handy flexible antenna elbow facilitates a wide range of mounting options.

Brand: NooElec

nooelec ads, antenna, software, defined, high, antenna bundle, bundle 1090mhz, electronics television, radios, defined radios, bundle, radios sdrs Electronics Television & Video Accessories Antennas Radio Antennas

Key Features

• ✓ Kit contains a 1090MHz SMA antenna, a 978MHz SMA antenna, and 2 male MCX to female SMA pigtail cables
• ✓ Perfect for embedded, portable or ground ADS-B applications where weight, size and range are all concerns.
• ✓ Antennas have foldable hinges for a multitude of mounting options
• ✓ Compatible with any SDR with SMA or MCX input connector
• ✓ Pigtail cables are made from quality RG316 and kept to 6" in length to minimize loss

Product Details

• ✓ Package Dimensions: 7.87 x 1.97 x 0.67 inches
• ✓ Item Weight: 1.41 ounces
