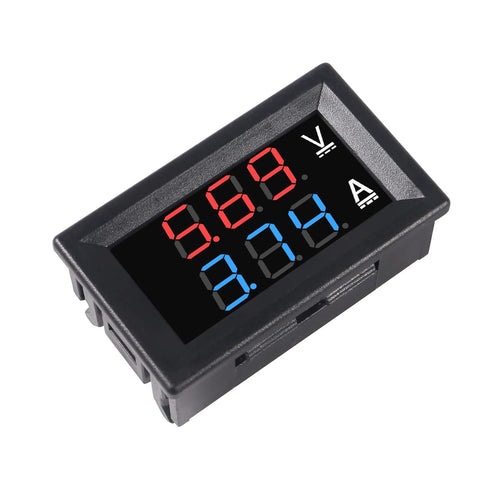

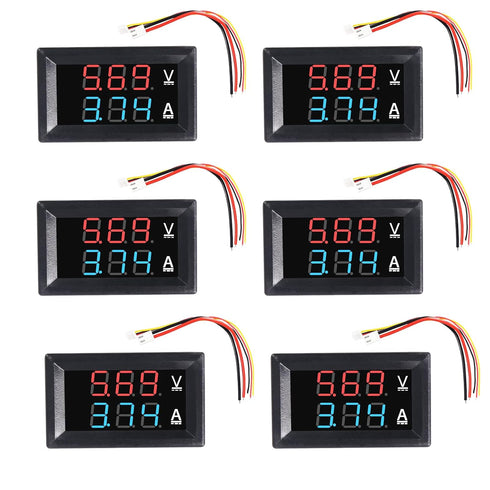

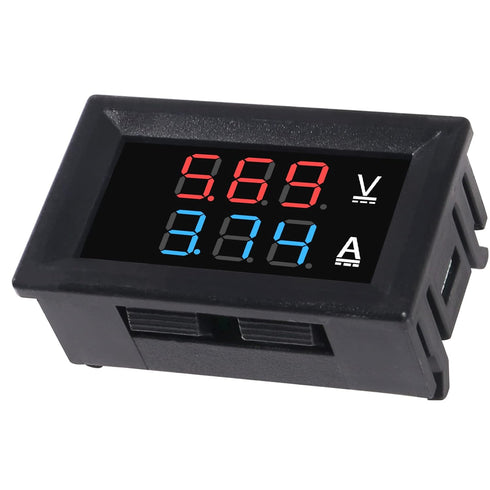

6pcs Digital Voltmeter Ammeter DC 100V 10A, Voltage Current Volt Amp Meter Tester, Dual LED Display Panel with Connect

6pcs Digital Voltmeter Ammeter DC 100V 10A Amp Voltage Current Volt Amp Meter Tester 3 Bits Dual LED Display Panel(Red-Blue) Amp Volt Multimeter 0.28" with Connect Wires

6pcs Digital Voltmeter Ammeter DC 100V 10A, Voltage Current Volt Amp Meter Tester, Dual LED Display Panel with Connect

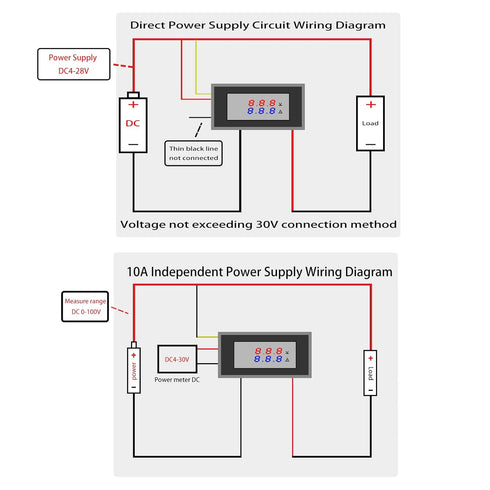

Features: Operating voltage:DC 4.5 ~ 30V Measure voltage: DC 0 ~ 100V Minimum resolution(V): 0.1V Minimum resolution(A): 0.01A Operating current: <20mA Display: three 0.28" LED digital tube Display color: Red and Blue (two-color display) Dimensions: 48 x 29 x 21mm Mounting cutout: 45.5 x 26.5mm Refresh rate: about 500mS / times Measure accuracy: 1% Operating temperature: -10 to 65 c Operating Humidity: 10 to 80% (non-condensing) Working pressure: 80 to 106 kPa Applications:Suitable for automotive/electric cars/motorcycles battery monitoring or other products voltage current measurement Wiring: Black line (thin): vacant or buck circuit (module) negative Red line (thin): power supply+ Black line (thick): COM, common measuring Red line (thick): PW+, measuring terminal voltage input positive Yellow line (thick): IN+, current input+ (Please refer to the wiring diagrams for more details) Note: The voltage between the thin red and thin black lines must be within DC 4.5-30V The ammeter can only be connected to the negative of the device under test 10A below ammeter (include 10A), built-in shunt, does not require external shunt When the black thin line vacant, it is better to use insulating tape around the exposed part of the wire, to prevent short circuits If just be used as a voltmeter, it is recommended that the yellow line and the black line were connected together, to prevent the ammeter digital flashing Package Include: 6 x Digital Volt Ampere Meter 12Pcs Cable

Key Features

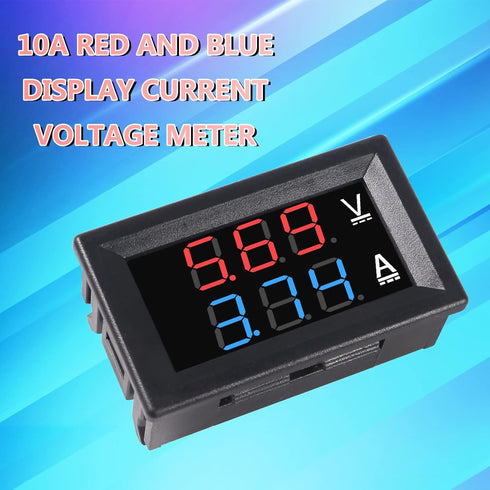

• ✅ Dual LED Display Panel : 0.28" digital tube, Two color red and blue. Display Voltage and current simultaneously in different colors, red for Voltage, Blue for current (the current is Measured in the negative rail)
• ✅ High Quality : We have been committed to providing high-quality products and services. Each of our products undergoes very strict testing and calibration during production to ensure the high quality of the products
• ✅ Applications : Alinan dc voltmeter ammeter has handy connection and wide application, Suitable for automotive/electric cars/motorcycles battery monitoring or other products voltage current measurement, and monitoring storage battery, DC adjustable power supply, or voltage and current changing state of other device
• ✅ This Digital Volt Ampere Meter Specification : Working voltage of Meter itself:DC 4 - 30V(The maximum input voltage can not exceed 30V. Otherwise the meter will be burned), Small size, fast response
• ✅ High Precision : Wide measuring range (dc 0-100v; 0-10A) and high accuracy percent ( 1 digit)
