8020, 14011, 10 and 25 Series 2 Hole Flexible Pivot Joint Connector Fittings for Aluminum Extrusion Profile

8020, 14011, 10 and 25 Series 2 Hole Flexible Pivot Joint Connector Fittings for Aluminum Extrusion Profile 180 Degree Adjustable Pivot Joint 1" 25mm T-Slot Accessory 80/20 (1)

8020, 14011, 10 and 25 Series 2 Hole Flexible Pivot Joint Connector Fittings for Aluminum Extrusion Profile

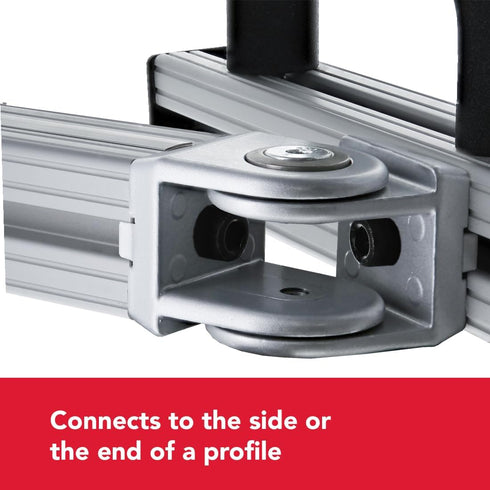

The 2 hole - pivot joint is an external fastening method that is lightweight yet sturdy. This connector can either mount to the end of a profile, which would require an end tap, or the slot tabs can be removed for mounting directly to the T-slot without any required machining services (no mounting hardware is included). The screws on the arms can be adjusted for movement or fixed in one position.

Key Features

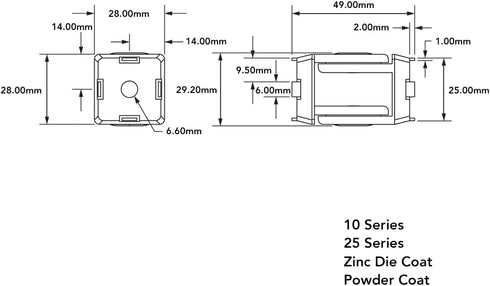

• ✅ This flexible pivot measures 28mm x 28mm x 49mm long with two 6.6mm thru holes to mount to your 1" or 25mm based t-slotted aluminum extrusion.
• ✅ Compatible with 80/20 10 Series 1" x 1" and 25 Series 25mm x 25mm t-slot aluminum extrusion profiles. This joint connector features break away tabs to mount directly to the t-slot channel.

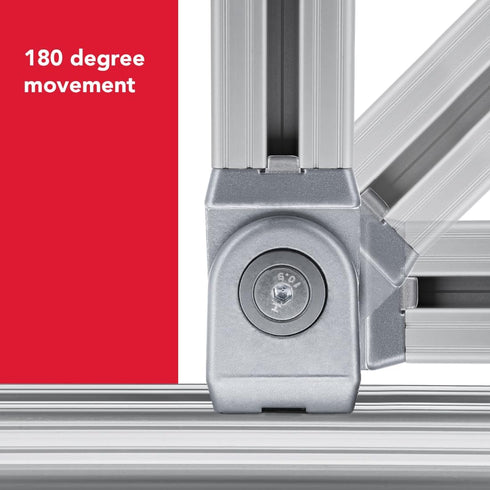

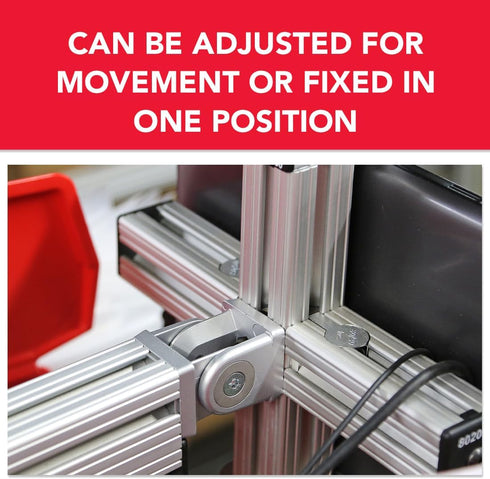

• ✅ Provides 0 - 180 degrees of flexibility to your DIY project with screws on the arms that can be adjusted for movement or fixed in one position.
• ✅ Made out of high quality die-cast zinc alloy with a powder coated finish, this pivot connector provides versatility and adjustability to your 80/20 extrusion project. Works great on the ends of 1010 and 25-2525 profiles and many more 1 inch or 25mm based profiles in the slot.
• ✅ Suggested Hardware (not included): For 10 Series, used #3491 x2 and #3064 x2. For 25 Series, use #75-3592 x2 and 11-6518 x2. Mating profile REQUIRES a tap if attaching to the end of an extrusion.
• ✅ This pivot joint can be used in a wide variety of applications including 3d printers, cnc machine, building industrial aluminum frame structures, CNC laser cutters, Robotics Projects and more.
