8x8 3D RP2040 VL53L7CX 64-Pixel 3.5m 60 I2C/UART/USB-C ESP32 Matrix ToF Distance Sensor | Onboard & | Depth Imaging |

8x8 Matrix ToF 3D Distance Sensor | Onboard RP2040 & VL53L7CX | 64-Pixel Depth Imaging | 3.5m Range & 60 FOV | I2C/UART/USB-C | Compatible with Arduino, Raspberry Pi, ESP32

8x8 3D RP2040 VL53L7CX 64-Pixel 3.5m 60 I2C/UART/USB-C ESP32 Matrix ToF Distance Sensor | Onboard & | Depth Imaging |

Introduction The 8*8 64-Pixel Matrix Time-of-Flight (ToF) Sensor is a compact and efficient 3D depth-sensing solution that bridges the gap between simple distance sensors and complex depth cameras. Powered by onboard firmware running on an RP2040 microcontroller, it delivers real-time depth data across an 88 matrix of 64 points within a 60 field of view, with a detection range of up to 3.5 meters. Featuring low power consumption and plug-and-play compatibility, it is well-suited for robotics, interactive art, gesture recognition, and smart automation. Specification Sensor Parameters Sensor Model: VL53L7CX Algorithm Processing MCU: RP2040 Number of Matrices: 88, totaling 64 ranging points Ranging Mode: Continuous Ranging Ranging Speed: 15Hz - 60Hz Ranging Range: 20mm - 3500mm Ranging Accuracy: Within the range of 20 - 200mm: 11mm for white targets, 12mm for light gray targets, and 12mm for gray targets; Within the range of 200 - 3500mm: 5% for white targets, 6% for light gray targets, and 6% for gray targets. Ranging Angle: 60 horizontal, 60 vertical, 90 diagonal Laser Safety Class: Compliant with Class 1 laser safety standards Power Supply Parameters Operating Voltage: 3.3V - 5V Operating Current: Less than 80mA Data Interface Data Interface: I2C/UART/USB Interface Type: PH2.0-4P (Gravity Pinout) I2C Address: 4 adjustable options: 0x30/0x31/0x32/0x33 UART Baud Rate: 115200bps (fixed value, non-modifiable) Firmware Update: TYPE-C, USB flash drive mode Shipping List Matrix Laser Ranging Sensor 1 PH2.0-4P Connection Cable 1 Aluminum Alloy Mounting Bracket 1 Aluminum Alloy Support Bracket 1 M3 Thumb Screw 4 M3 Sensor Fixing Screw 2 M335 Mounting Copper Spacer 2

Brand: DFROBOT

distance sensor, raspberry, i2c, compatible arduino, arduino raspberry, range, tof, usb, sensor onboard, matrix, depth, 8x8 Industrial & Scientific Robotics Robot Parts & Accessories Robot Parts

Key Features

• ✅ [8x8 Matrix Depth Vision] Powered by the VL53L7CX Time-of-Flight sensor, this module provides 64 independent ranging pixels. Unlike single-point sensors, it captures object contours within a 60 FOV for true 3D spatial awareness and depth mapping.

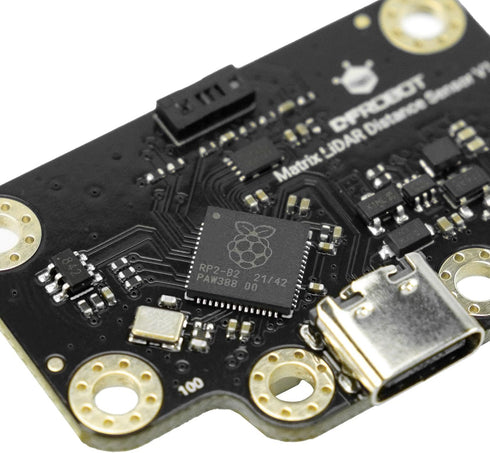

• ✅ [Onboard RP2040 MCU] Features an integrated RP2040 processor to handle complex firmware algorithms. This offloads heavy computation from main controller (like Arduino or ESP32) and allows direct plug-and-play debugging via USB-C.
• ✅ [Maker-Friendly Connectivity] Equipped with a Gravity 4-Pin connector supporting both I2C and UART. Fully compatible with Arduino, Raspberry Pi, ESP32, and LattePanda. Supports Python, C++, and graphical programming like Mind+.

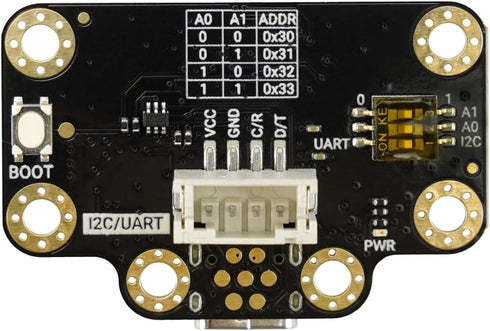

• ✅ [Scalable Design] Supports 4 switchable I2C addresses, allowing users to daisy-chain multiple sensors for expanded FOV. With a detection range of 20mm to 3500mm and up to 60Hz refresh rate, its perfect for high-speed dynamic sensing.
• ✅ [Ideal for DIY Projects] The ultimate solution for intelligent obstacle avoidance, cliff detection, contactless gesture control, and people counting. Transform the creative ideas into professional-grade 3D sensing applications.

Product Details

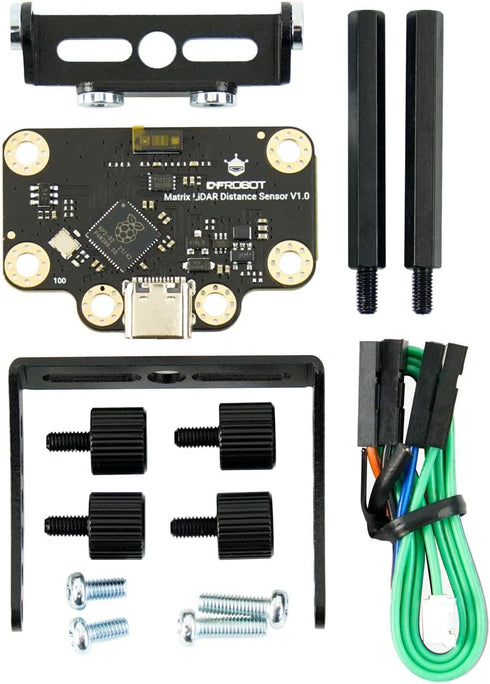

• ✅ Included Components: Aluminum Alloy Mounting Bracket & Supportx1, M3 Thumb Screw x4 & M3 Sensor Fixing Screw x2, M335 Mounting Copper Spacer x2, Matrix Laser Ranging Sensor x1, PH2.0-4P Connection Cable x1
