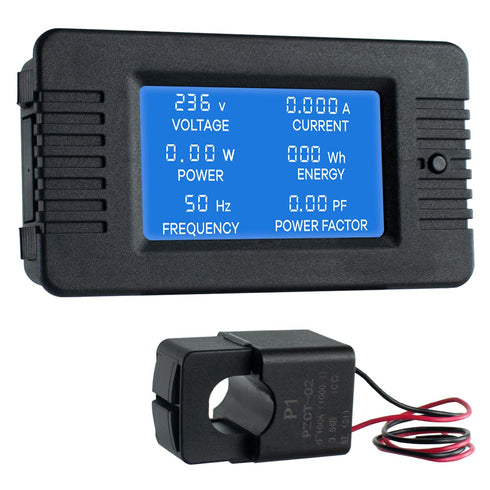

AC 80-260V 100A LCD Digital Display Multi-Function Power Monitor, Ammeter Voltmeter with Split Core Transformer

AC 80-260V 100A LCD Digital Display Multi-Function Power Monitor Voltage Current Frequency Power Factor Energy Meter Ammeter Voltmeter with Split Core Current Transformer

AC 80-260V 100A LCD Digital Display Multi-Function Power Monitor, Ammeter Voltmeter with Split Core Transformer

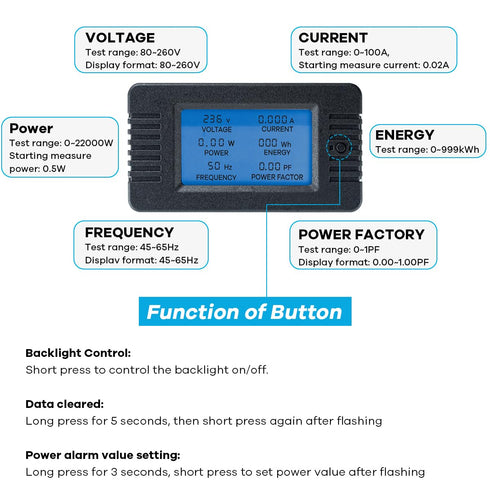

Main Function 1. Electrical parameter measurement function (voltage, current, active power, energy, frequency, power factor) 2. Overload alarm function (over power alarm threshold, backlight and power flashing to alarm). 3. Power alarm threshold preset function (can set power alarm threshold). 4. The energy can be reset use the key. 5. Store data when power off. 6. Large-screen LCD display 7. Backlight function(Short press the button to turn on or off) Specification parameters: 1. Working voltage: 80 ~ 260VAC 2. Test voltage: 80 ~ 260VAC 3. Rated power: 100A/22000W 4. Operating frequency: 45-65Hz 5. Measurement accuracy: 1.0 grade Large-screen LCD, which can display six parameters at the same time. 1. Power: test range: 0~22000W, Starting measure power: 0.5W 2. Energy: test range: 0~999kWh 3. Voltage: test range: 80~260V 4. Current: test range: 0~100A,Starting measure current: 0.02A 5. Frequency: test range: 45~65Hz 6. Power factor: test range: 0~1PF Backlight Control: The backlight can be turned on or off by short pressing the button, and the backlight status will be automatically saved when the power is off. Power reset: Step 1: Press and hold the button for 5 seconds until the power number flashes, then release the button; Step 2: If you short press the button again, the power data will be cleared and exit the reset flashing state; Step 3: If there is no button action within 5 seconds, it means that the power data is not reset and exits the reset state. Package list: 1 x Power Meter 1 x Split Current Transformer 1 x Manual

Key Features

• ✅ The electric energy meter can simultaneously monitor and display voltage, current, active energy, electric energy, frequency and power factor. The use of split current transformers makes installation more convenient.
• ✅ Large-screen LCD digital display with a full viewing angle of 180 . One-button control: backlight on/off, reset energy, preset power alarm limits.
• ✅ Overload alarm function, when the preset value is exceeded, the backlight and power supply will flash at the same time to give an alarm. You can preset power limits yourself.
• ✅ Automatic data storage function: when the power supply is suddenly cut off, the last test data will be automatically stored. Don't worry about data loss due to sudden power failure.
• ✅ Wide range of application scenarios, suitable for power monitoring and management in household, commercial and industrial fields.
