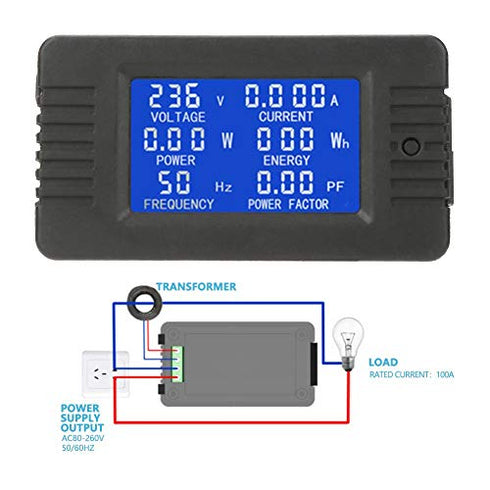

AC Digital Meter Walfront PZEM-022, 80-260V 100A LCD Display Multimeter

AC Digital Meter Walfront PZEM-022 AC 80-260V 100A LCD Display Multimeter AC Current Voltage Amperage Power Power Energy Panel Meter Multi-Function Power Monitor with Closed Type CT

AC Digital Meter Walfront PZEM-022, 80-260V 100A LCD Display Multimeter

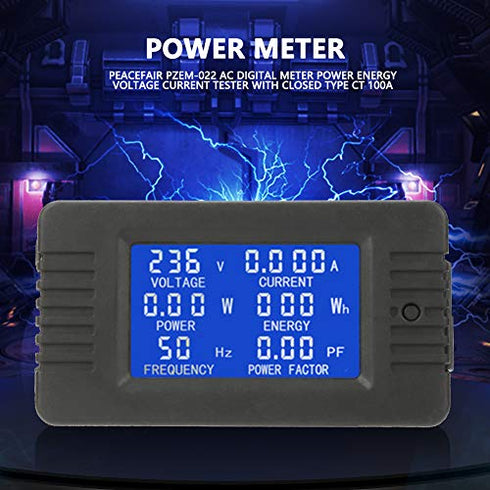

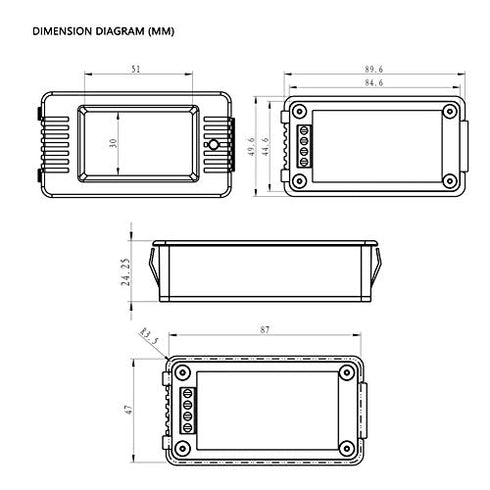

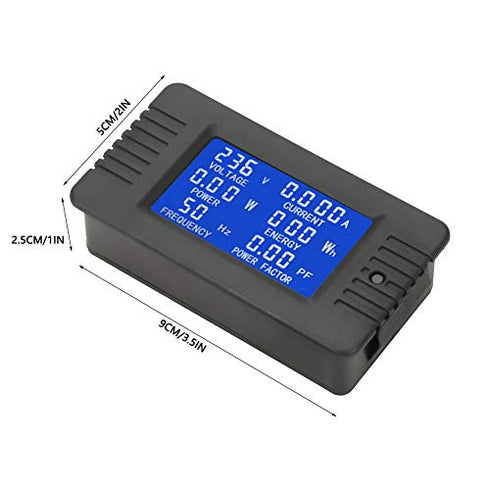

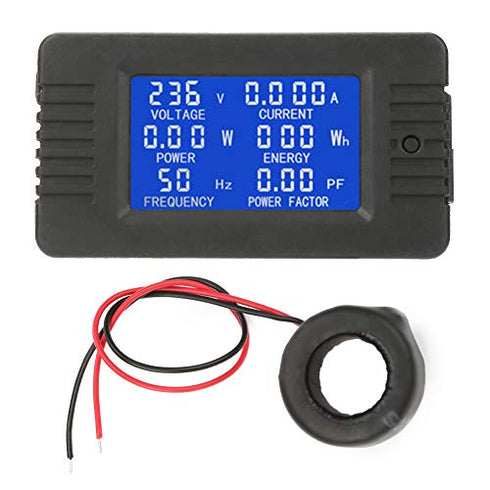

Specification: Brand: PEACEFAIR Model: PZEM-022 Operating voltage: 80 ~ 260VAC Test voltage: 80 ~ 260VAC Current: 100A Rated power: 100A/22000W Operating frequency: 45-65 Hz Measurement accuracy: 1.0 grade Size: 9*5*2.5 cm/3.5*2*1 inch Length of the Cable: 19cm/7.5in Weight: about 110g/3.9oz Package List: 1 multi-function digital AC meter. 1 closed type CT Note: 1. This module is suitable for indoors, do not use it outdoors. 2. The applied load must not exceed the rated power. 3. The wiring order cannot be wrong. Appearance and key function: I.Display interface The display interface is large screen LCD and can display six parameters at the same time. II. Display format 1. Power: Test range: 0~22000W, Initial measurement power: 0.5W Display format <10W: 1.00~9.99W <1000W display format: 100~999W <10000W display format: 1.00~9.90kW< /p> Display format 10000W: 10.0~22.0kW 2. Power: test range: 0~999kWh Display format <1kWh: 0~999Wh Display format <10kWh: 1.00~9.99kWh 3. Voltage: Test range: 80~260V Display format: 80~260V 4. Current: test range: 0~100A, initial measurement current: 0.002A <10A display format: 0.000~9.000A 10A display format: 10.00 ~99.99A 5. Frequency: Test range: 45~65Hz Display format: 45~65Hz 6. Power factor: Test range: 0~1PF Display format: 0.00 ~ 1.00PF Key function: 1. backlight control Short press the key to turn on or off the backlight, the backlight has memory function, it can store the on or off status when turned off. p> 2. Reset power Step 1: Press and hold the key for 5 seconds until the power value flashes, then release the key. Step 2: Short press the key again, then the power value is cleared and exits the flashing reset state. Step 3: If no key operation is performed within 5 seconds, it means the power value is not cleared and will exit the reset state. 3. Set the power alarm threshold Step 1: Press and hold the key until the LCD displays "SET CLr", then release the key to enter the setting state. Step 2: The power window displays the current power alarm value and the last digit starts flashing, then you can short press to add 1, when no operation for 3 seconds, it will change the digit position automatically, the Setting method is the same as above. Step 3: After finishing setting, long press the key for 5 seconds to automatically store and exit, the active power threshold range is 0.0 ~ 2.5 kW.

Key Features

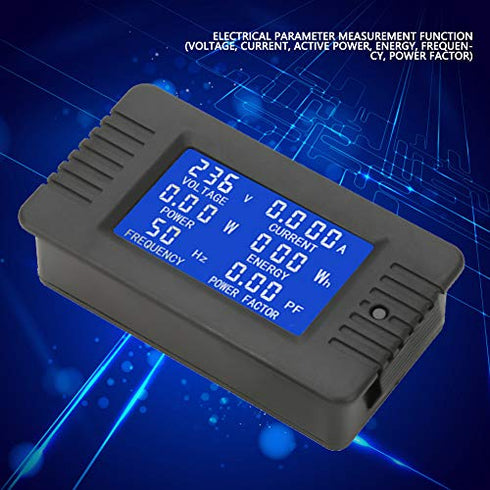

• ✅ ELECTRICAL PARAMETER MEASURE: Electrical parameter measurement function (voltage, current, active power, energy, frequency, power factor). Overload alarm function (over power alarm threshold, backlight and power flashing to alarm).
• ✅ POWER ALARM THRESHOLD PRESET: Power alarm threshold preset function (can set power alarm threshold). The energy can be reset use the key. Store data when power off. Large-screen LCD Backlight function.
• ✅ BACKLIGHT CONTROL FUNCTION: Short press the key to turn on or off the backlight, the backlight has memory function, it can store the on or off state when power off.
• ✅ RESET ENERGY FUNCTION: Step1: Long press the key for 5 seconds until the energy value flash, then release the key. Step2: Short press the key again, then the energy value is cleared and exit the reset flashing state. Step3:If there is no operation on the key within 5 seconds, it means the energy value is not cleared and will exit the reset state.

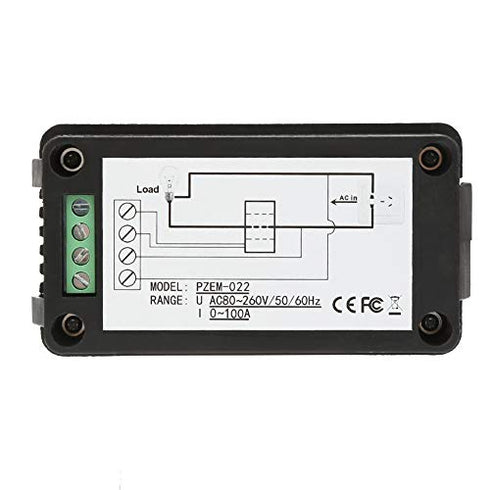

• ✅ PLEASE PAY ATTENTION: 1. This module is suitable for indoor, please do not use outdoor. 2. Applied load should not exceed the rated power. 3. Wiring order can't be wrong.

✅ Product Dimensions: 3.94 x 2.36 x 3.15 inches; 3.88 ounces
