AC Miniature Circuit Breaker, 16 Amp 120V/240V 1 Pole DIN Rail Mount, Thermal Magnetic Trip, Solar AC Disconnect Switch
SKU: PGABL1685269
VENDOR: CHTAIXI
You Save: $1.60 (11%)
Hurry! Only 10 Left in Stock!
Free Shipping Across the United States
All orders within the United States qualify for 100% free shipping.
Fast Processing & Dispatch
All orders are shipped within 1 business day after purchase.
30-Day Free Returns
Not satisfied? You can return your order for free within 30 days after delivery.

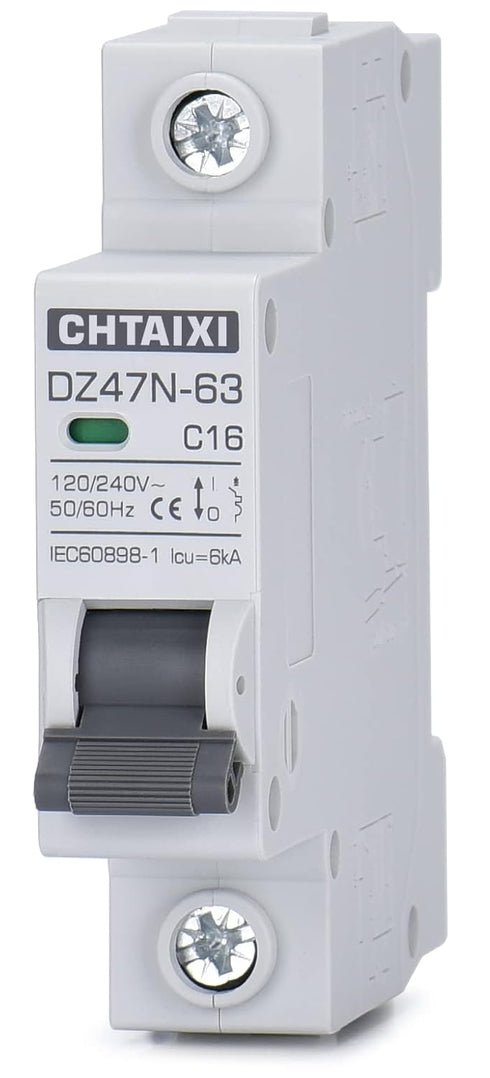

AC Miniature Circuit Breaker, 16 Amp 120V/240V 1 Pole DIN Rail Mount Circuit Breaker, Thermal Magnetic Trip, Solar AC Disconnect Switch MCB C16
AC Miniature Circuit Breaker, 16 Amp 120V/240V 1 Pole DIN Rail Mount, Thermal Magnetic Trip, Solar AC Disconnect Switch
Specifications Product type: AC Miniature Circuit Breaker Rated operational voltage: 120V / 240V AC Rated current [In]: 6A / 10 A / 16 A / 20 A / 25 A / 32 A / 40 A / 50 A / 63 A (optional) Poles: 1P / 2P / 3P (optional) Trip unit technology: Thermal-magnetic Curve code: C Breaking capacity: 6 kA Ics=Icu Uimp: 4 kV Mechanical durability: 10000 cycles Electrical durability: 4000 cycles Operating temperature: -13 F(-25 ) ~ 140 F(60 ) Mounting support: 35 mm DIN rail Tightening torque: 2.5 N.m Standard: IEC60898-1 Package includes 1 x AC miniature circuit breaker (1P NO DIN rail or screws, 2P/3P with 1 x DIN rail and 2 x screws)
Key Features

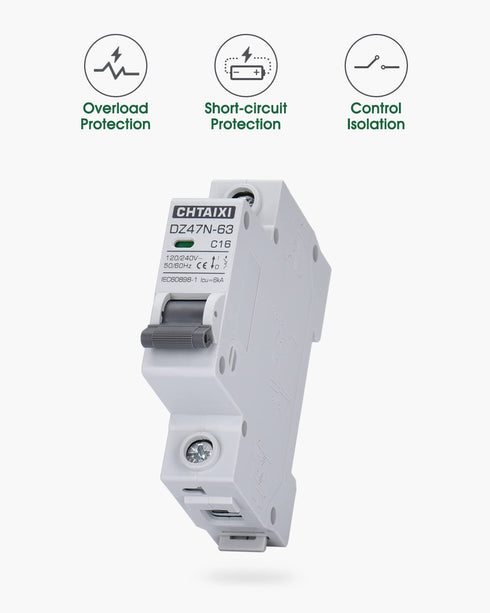

- ✅ FUNCTIONS: Used to protect 110V 120V 220V 230V AC circuit from overload and short circuit damage, and can also be used for control and isolation.
- ✅ CURVE C: Magnetic trip range 5-10 times rated current.

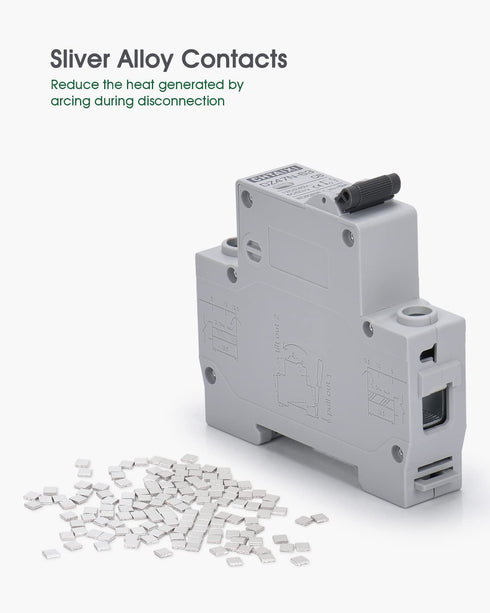

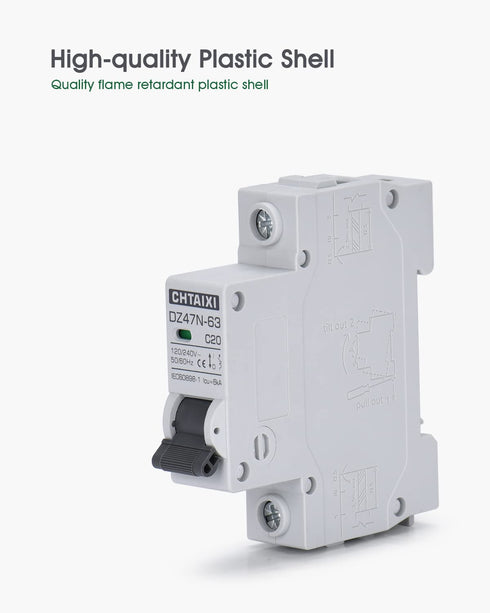

- ✅ QUALITY: Silver alloy contacts, flame retardant material shell, color indicator.
- ✅ APPLICATION: Can be used in solar ac systems, RV, home circuits, or other 50/60Hz AC systems.
- ✅ INSTALLATION: Screw clamp wires, 35mm DIN rail mount.

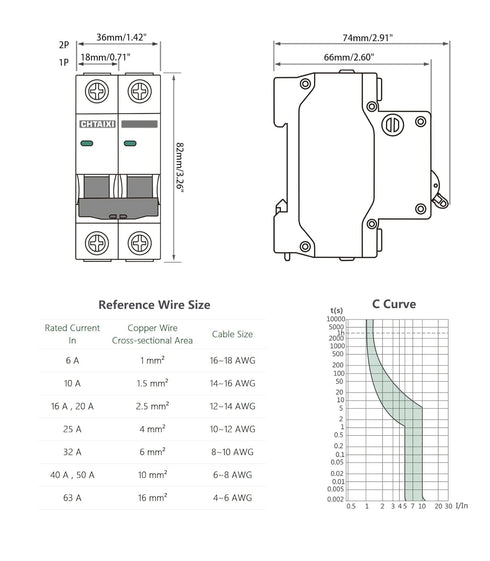

✅ Product Dimensions: 2.95 x 0.7 x 3.15 inches; 2.89 ounces
Shipping & Guarantees
- ✅ FREE standard shipping within the United States (3 6 business days)
- ✅ 100% money-back guarantee for lost or damaged items
- ✅ Secure checkout with encrypted payment processing
- ✅ Shipping via UPS, FedEx, and USPS
- ✅ Ships to lower 48 states only (no PO Boxes / APO / FPO)
Returns
- ✅ 30-day hassle-free returns
- ✅ Items must be unused and in original packaging
- ✅ Full refund if item is not delivered
- ✅ Guaranteed delivery within 6 7 business days
Payment Methods
✅ Credit Cards, PayPal, Shop Pay, Apple Pay, Google Pay, Amazon Pay, Meta Pay
Customer Support
✅ Questions? Contact us at Support@GiftAbay.com
We respond within 24 hours on business days.
SEO Title:
Keywords:
Category: Tools & Home Improvement
Subcategories: Electrical, Breakers, Load Centers & Fuses, Circuit Breakers, Miniature Circuit Breakers
