AC Miniature Circuit Breaker, 6 Amp 480V 3 Pole DIN Rail Mount Circuit Breaker, Thermal Magnetic Trip
SKU: PGABL1680023
VENDOR: CHTAIXI
You Save: $3.28 (12%)
Hurry! Only 10 Left in Stock!
Free Shipping Across the United States
All orders within the United States qualify for 100% free shipping.
Fast Processing & Dispatch
All orders are shipped within 1 business day after purchase.
30-Day Free Returns
Not satisfied? You can return your order for free within 30 days after delivery.
AC Miniature Circuit Breaker, 6 Amp 480V 3 Pole DIN Rail Mount Circuit Breaker, Thermal Magnetic Trip, AC Disconnect Switch MCB C6
AC Miniature Circuit Breaker, 6 Amp 480V 3 Pole DIN Rail Mount Circuit Breaker, Thermal Magnetic Trip

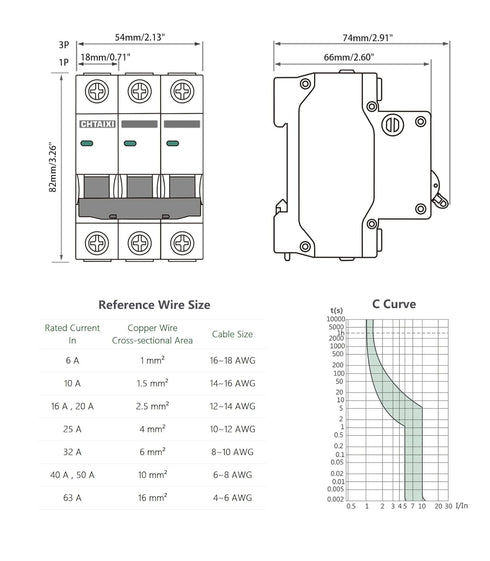

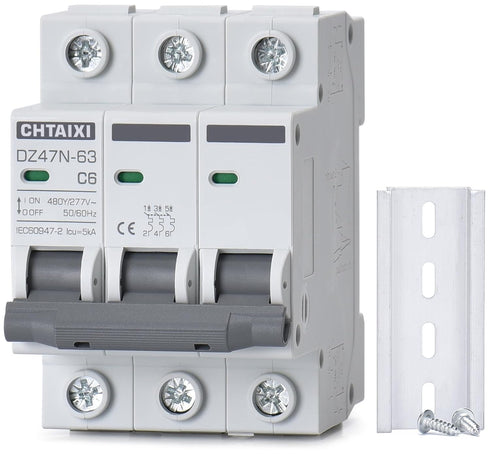

Main product name: DZ47N-63 product type Miniature Circuit Breaker rated operational voltage: 480V AC rated current [In]: 6A / 10A / 16A / 20A / 25A / 32A / 40A / 50A / 63A poles: 3 Pole trip unit technology: Thermal-magnetic curve code: C breaking capacity: 5 kA Ics=Icu Complementary rated impulse withstand voltage [Uimp]: 4 kV mechanical durability: 10000 cycles electrical durability: 4000 cycles mounting support: 35 mm DIN rail tightening torque: 2.5 N.m standard: IEC60947-2 operating temperature: -13 F(-25 ) ~ 140 F(60 ) Warm tips Use wire size according to rated current. package includes: 1 x Miniature circuit breaker 1 x DIN rail 2 x Screws
Key Features

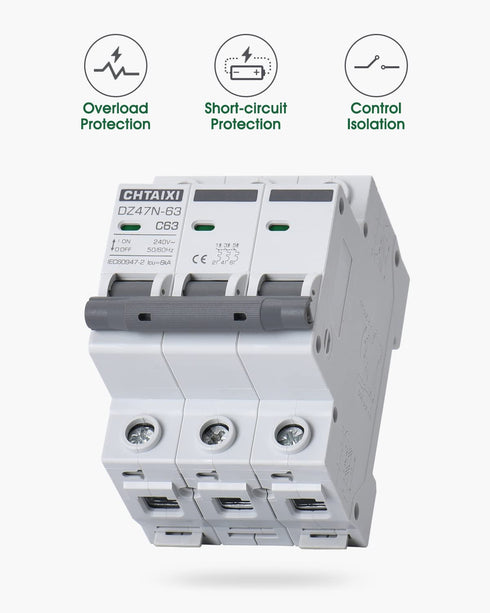

- ✅ FUNCTIONS: Used to protect 480Y/277V AC circuit from overload and short circuit damage, and can also be used for control and isolation.
- ✅ CURVE C: Magnetic trip range 5-10 times rated current.

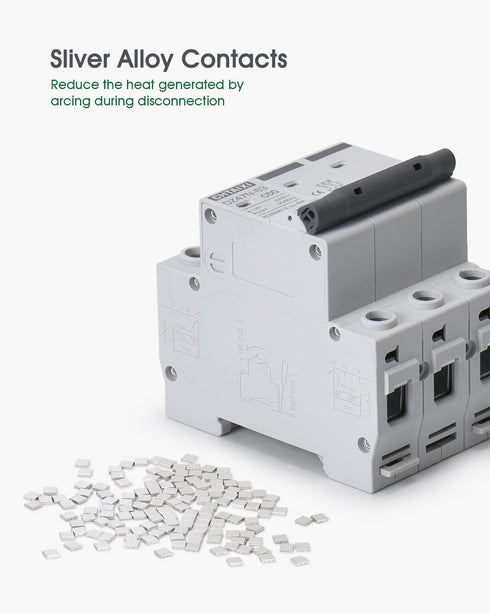

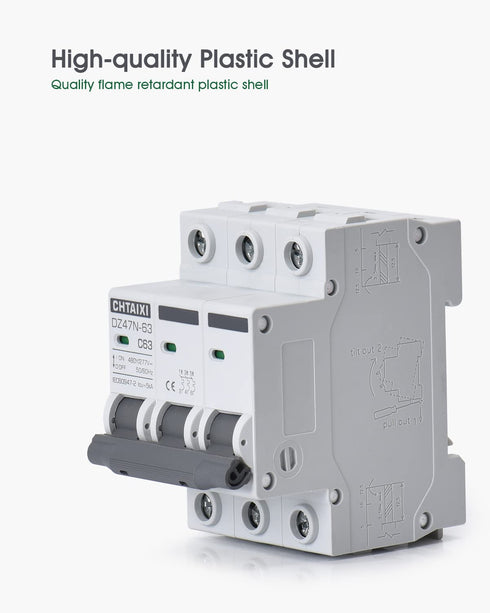

- ✅ QUALITY: Silver alloy contacts, flame retardant material shell, color indicator.
- ✅ APPLICATION: Can be used in home circuits, high power circuit or other 50/60Hz AC systems.
- ✅ INSTALLATION: 35mm DIN rail mount, Screw clamp wires (Soft silicone wire needs to crimp fixed the wire end with copper crimp first).
