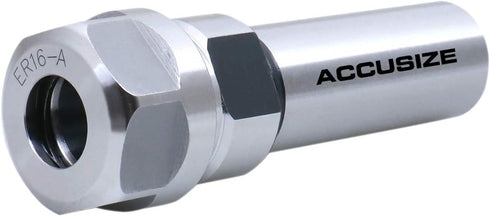

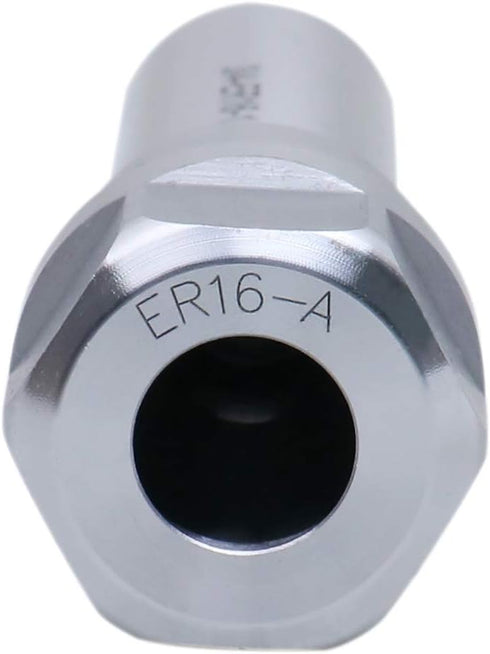

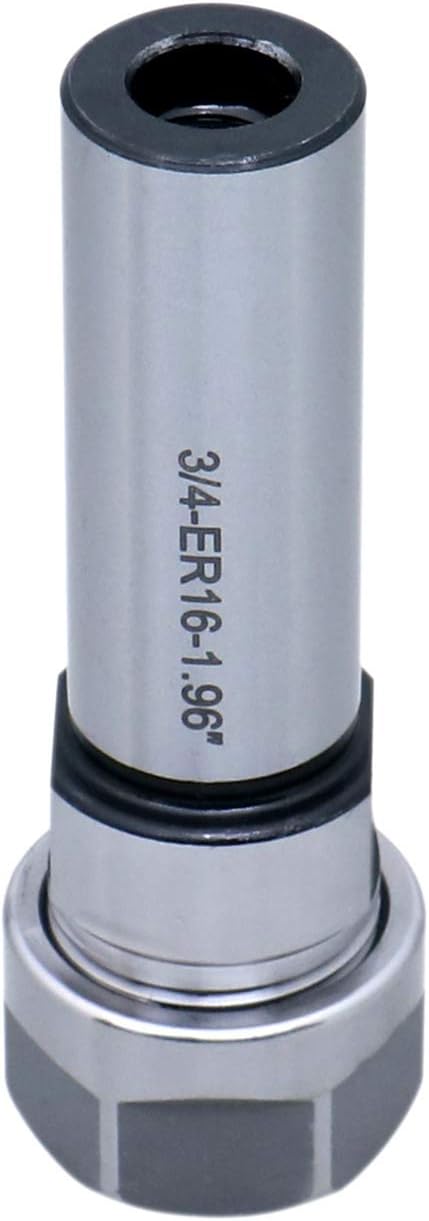

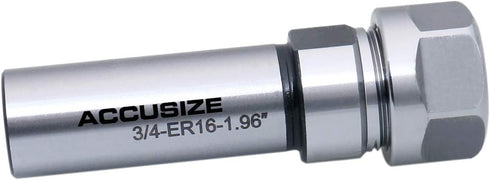

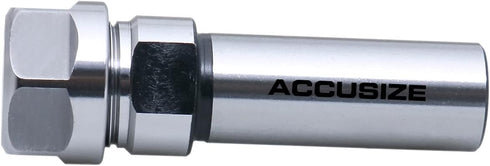

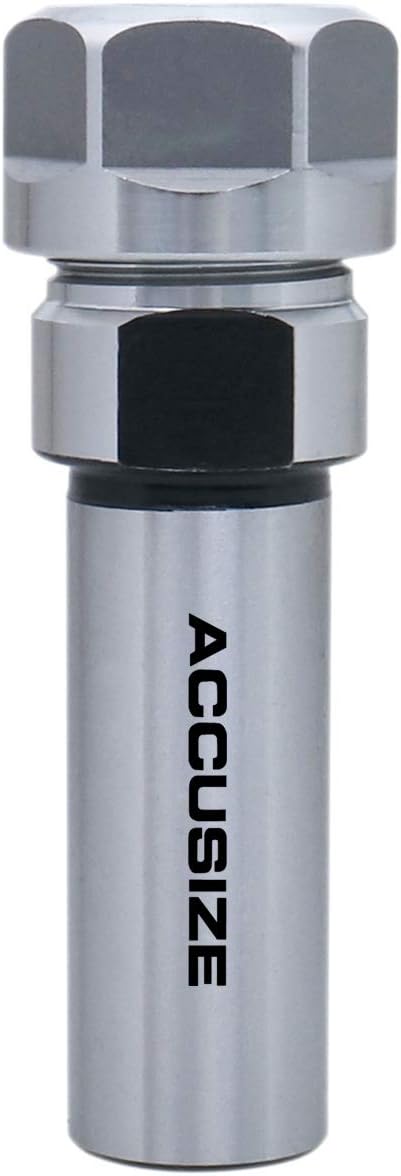

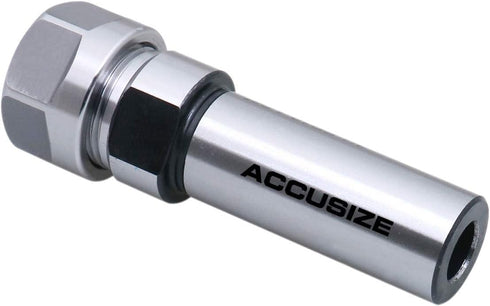

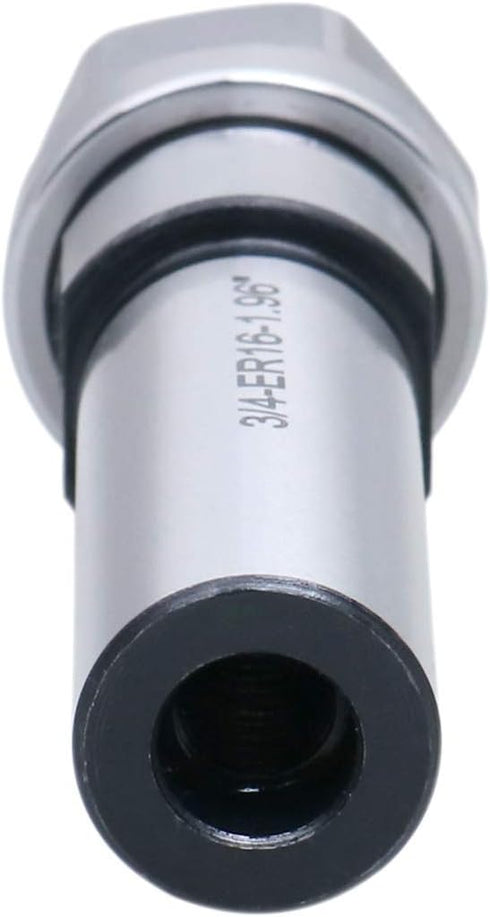

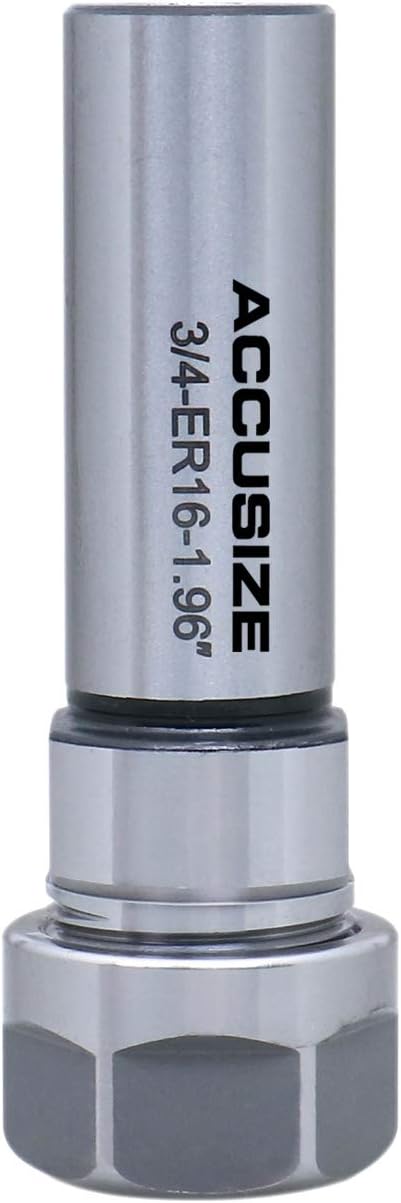

Accusize Industrial Tools ER16 Collet Chuck Extension Rod, 1.96 in. Shank Length, 3/4 in. Straight Shank

Accusize Industrial Tools ER16 Collet Chuck Extension Rod, 1.96 in. Shank Length, 3/4 in. Straight Shank Alloy Steel, 0223-0207

Accusize Industrial Tools ER16 Collet Chuck Extension Rod, 1.96 in. Shank Length, 3/4 in. Straight Shank

The inside of the ER collet nut is intentionally designed like off-centering to help mount the ER collet much easier. It is in accordance with the requirements listed in ISO 15488:2003(E). If it is made symmetrical, the ER collet with the diameter larger than the inside size of the collet nut cannot be installed. Insert the ER collet into the nut at an angle. Lock it onto the eccentric groove of the collet nut and push it in. (Insert the cutter right after the step, before connect it to the holder/chuck/arbor.) Inspect the RPM of the ER collet, ER collet nut, ER collet holder/chuck/arbor, etc. Take out the tool bit, press the end of the ER collet until the collet off the position. Push it out of the nut. (after take out the nut out of the holder.) Accusize, born in Canada in 2008, serves metalworking customers with measuring tools, cutting tools, and machine tool accessories. Milling cutters and accessories for milling machines Visit the Store Reduced shank drill bits, M35 drill bits, 135-deg split point drill bits, etc. Finish all milling operations with Accusize Industrial Tools High-performance workholding tools, e.g.: MAX 8000rpm ER collet chucks and ER collet chuck nut balanced to 18,000 RPM AT G2.5. Drills and taps Micrometers, calipers, indicators, bore gauges, depth gauges, height gauges, etc We carry various calipers including digital, dialing, heavy-duty, water-resistant, etc Drop indicators, test indicators, dialing ones, digital ones, gauge blocks, etc. Precision blocks, parallels, glass scales, etc Tools for precision machining Measuring and inspection solutions for automotive business, e.g.: disc & rotor gages, bore gages, telescoping gages, etc. High-quality workholding tools.

Key Features

• ✅ 1.96'' Shank Length, 3.35'' Oal, 3/4'' Straight Shank ER16 Collet Holder
• ✅ The shank is threaded for a M22 x 1.5 collet nut; Collet Capacity: 0.02"-0.393"; Collet Nut Diameter (D): 1.10";
• ✅ Made of high quality alloy steel; Hardened to HRC 56-60
• ✅ Precision ground; The shank is threaded for a M22 x 1.5 ER16 Collet Nut.
• ✅ 0.0002" TIR or better
• ✅ Precision Ground for Accuracy: Achieves a TIR of 0.0002" or better, ensuring ultra-precise tool alignment and minimal runout.
• ✅ ER16 Collet Series Compatibility: Designed to work with ER16 collets, offering a capacity range from 0.02" to 0.393" for diverse machining needs.
