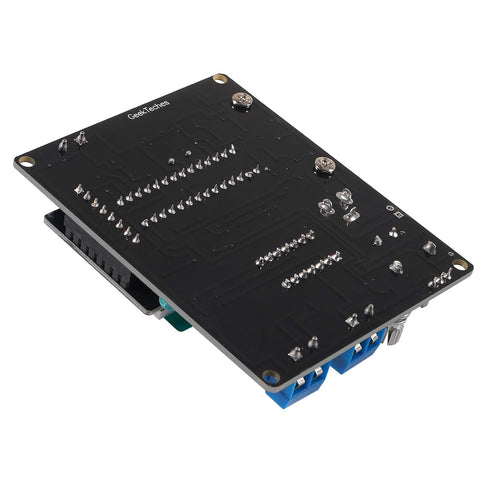

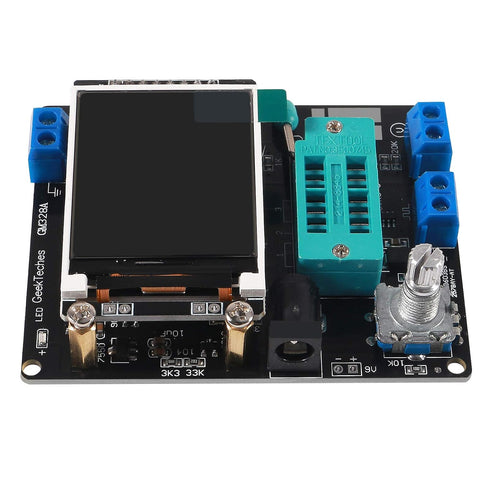

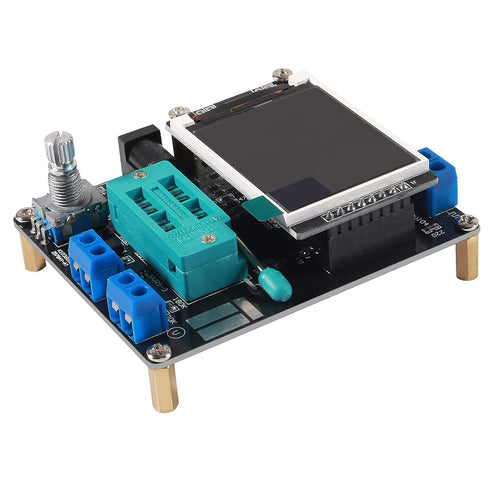

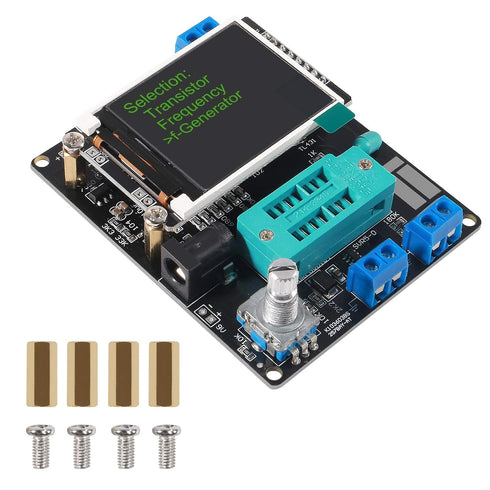

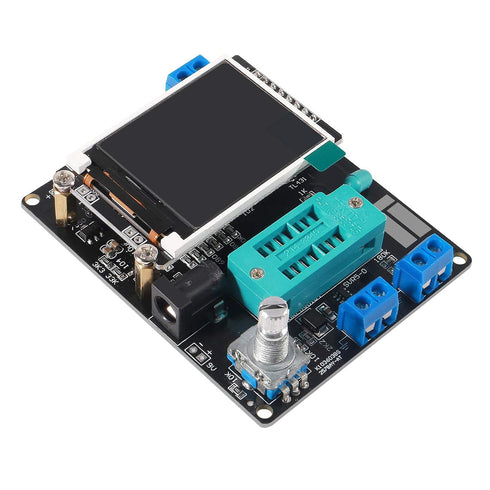

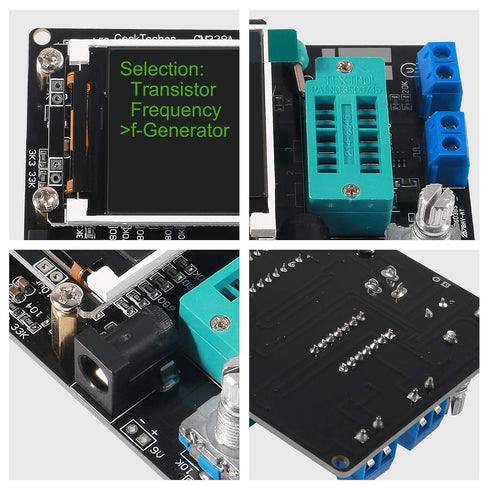

ACEIRMC Transistor Tester, Multifunctional LCD GM328A Diode Capacitance ESR Voltage Frequency Meter

Transistor Tester,ACEIRMC Multifunctional LCD GM328A Transistor Tester Diode Capacitance ESR Voltage Frequency Meter PWM Square Wave Signal Generator SMT

ACEIRMC Transistor Tester, Multifunctional LCD GM328A Diode Capacitance ESR Voltage Frequency Meter

Display: 160*128 LCD Power Supply: 1 * 9V Battery(not included); DC 6.8-12V Current: Approx. 30mA Resistance Measurement: Max. 50MO Resistance Resolution: 0.01O Capacitance Measurement: 25pF~100mF Capacitance Resolution: 1pF DC Voltage Measurement: Up to 50V Screen Size: 3.7 * 3cm / 1.45 * 1.18in PCB Size: 7.8 * 6.2cm / 3.1 * 2.44in Product Weight: 66g / 2.3oz Package Weight: 69g / 2.45oz Notice: Before measuring capacitance, the capacitor must be discharged, otherwise very likely damage the meter. Package List: 1 * Transistor Tester

Key Features

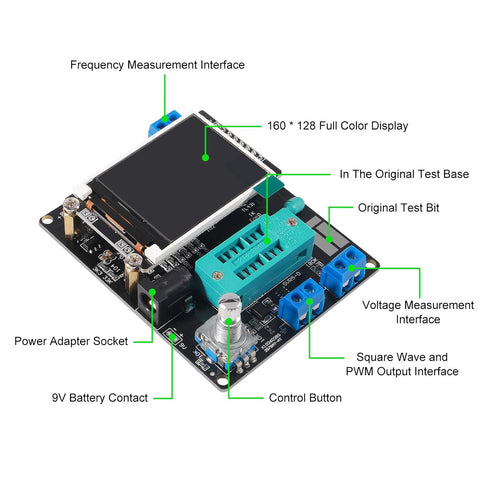

• ✅ Digital LCD display for easy readings, can display measured data and graphics.Rotary switch control, a key measurement for convenient use.
• ✅ Main chip is the DIP, easy for electronic enthusiasts to DIY or update the main chip.Use 9V battery(not included), can also use DC power(DC 6.8-12V).Automatic shutdown, shutdown current is only about 20nA.
• ✅ Automatically detects NPN and PNP transistors, FET, diodes, dual diode, thyristor, SCR, automatic identification of the transistor pinout.Test NPN and PNP transistor common-emitter current amplification factor, the base-emitter threshold voltage, off the collector - emitter leakage current.
• ✅ Support 2 resistors measurement, show its positive and negative, on-state voltage.Resistance measurement maximum resolution 0.01O, can be measured up to 50MO
• ✅ For the following 2100O resistor while measuring its inductance measuring range from 0.01mH - 20H.Can be used as signal generator and frequency meter: frequency range from 1Hz-2MHz and can generate 1%-99% PWM(pulse width modulation) signals.
