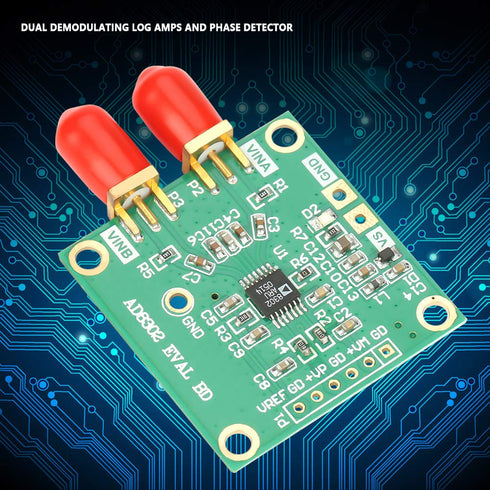

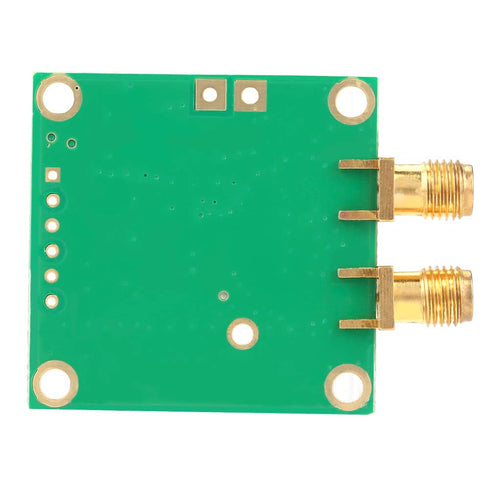

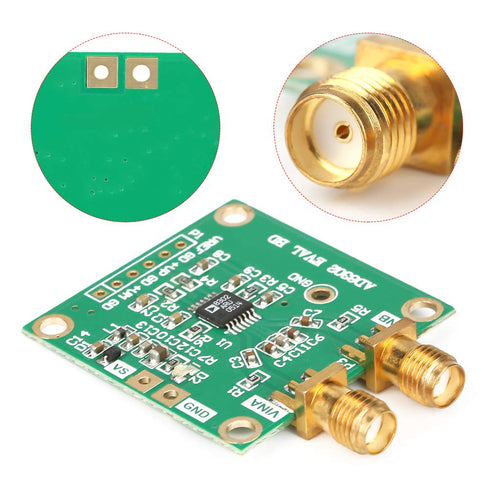

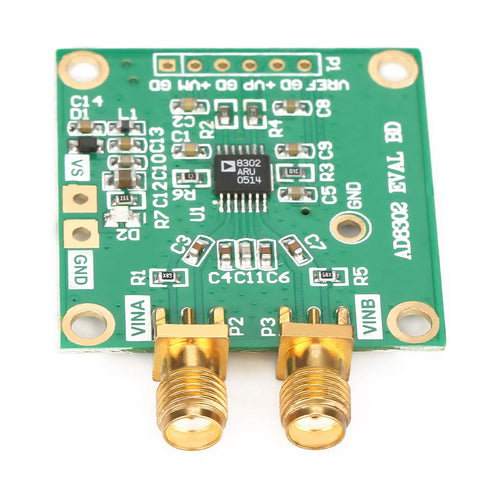

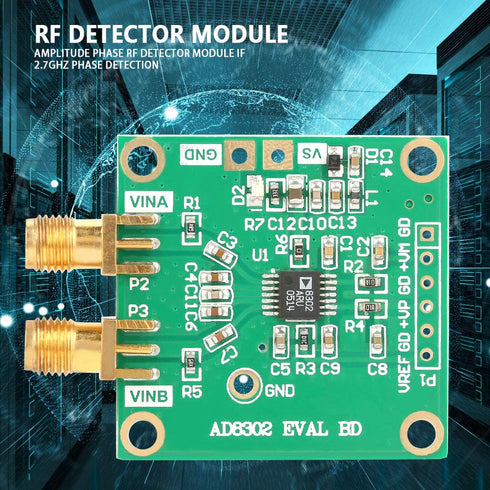

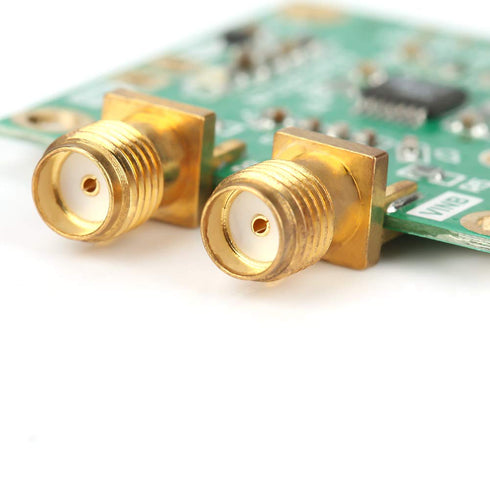

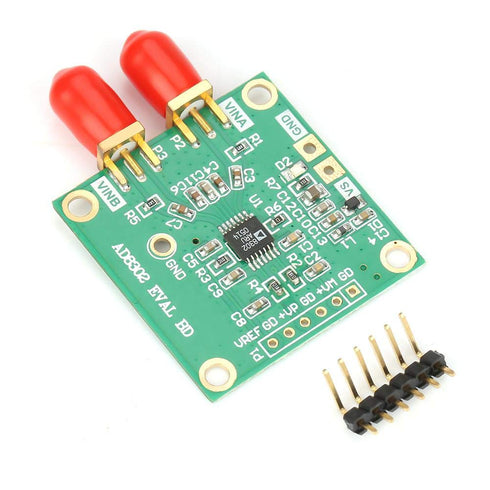

AD8302 RF/IF Phase Detector Module, LF-2.7G Phase Detection Bandwidth
SKU: PGABL1154439
VENDOR: Walfront
You Save: $2.93 (12%)
Hurry! Only 10 Left in Stock!
Free Shipping Across the United States
All orders within the United States qualify for 100% free shipping.
Fast Processing & Dispatch
All orders are shipped within 1 business day after purchase.
30-Day Free Returns
Not satisfied? You can return your order for free within 30 days after delivery.
AD8302 RF/IF Phase Detector Module LF-2.7G Phase Detection Bandwidth Module
AD8302 RF/IF Phase Detector Module, LF-2.7G Phase Detection Bandwidth

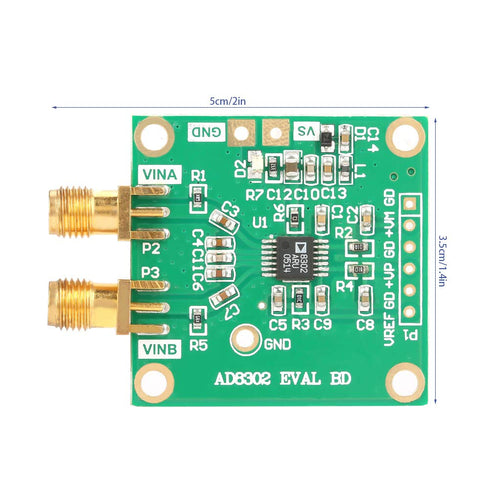

Description: This is a demodulating log amps and phase detector. Input range -60 dBm to 0 dBm in a 50 ? system. Accurate phase measurement scaling (10 mV/degree) measurement/controller/level comparator modes operates from supply voltages of 3.3v~5V stable 1.8 V reference voltage output small envelope bandwidth from DC to 30 MHz. Widely used in RF/IF PA linearization. Specification: Model: AD8302 Supply Voltages: 3.3v~5V Input Range:-60 dBm to 0 dBm(50 ?) Measures Gain/Loss and Phase: . 2.7 GHz Reference Voltage Output: 1.8 V Size: 5×3.5cm/2×1.4in Weight: Approx.8g/0.3oz Package List: 1 × AD8302 Amplitude Phase RF Detector
Key Features
- ✅ [2.7 GHz]:The measures gain/loss and phase up to 2.7 GHz.
- ✅ RF power control, accurate gain measurement scaling (30 mV/dB), typical nonlinearity < 0.5 dB, typical nonlinearity < 1 degree.
- ✅ [Multi-function]:This phase detector module remote system monitoring and diagnostics, return Loss/VSWR measurements and log ratio function for AC .
- ✅ [ demodulating]:This is a demodulating log amps and phase detector.
- ✅ [Input range]:Input range -60 dBm to 0 dBm in a 50 O system.
✅ Product Dimensions: 3.94 x 1.57 x 3.94 inches; 0.28 ounces
