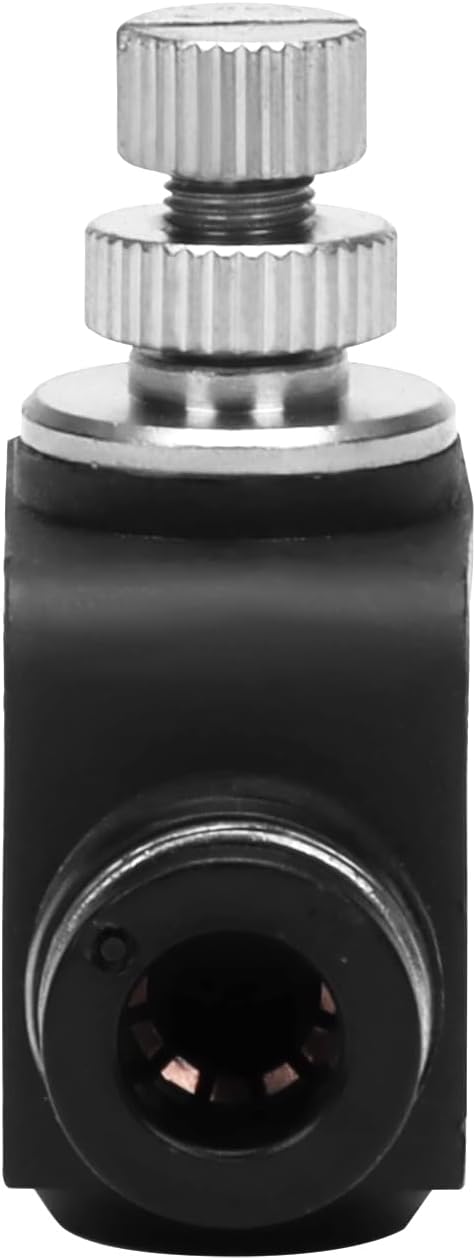

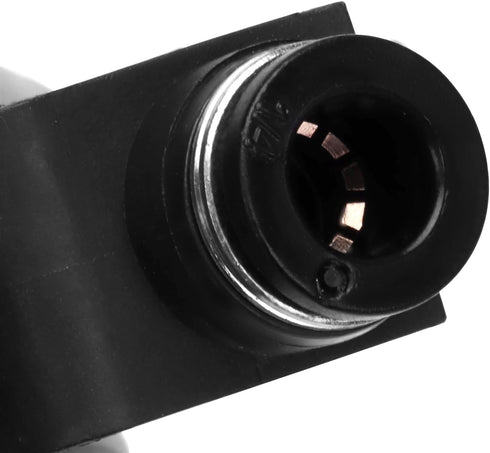

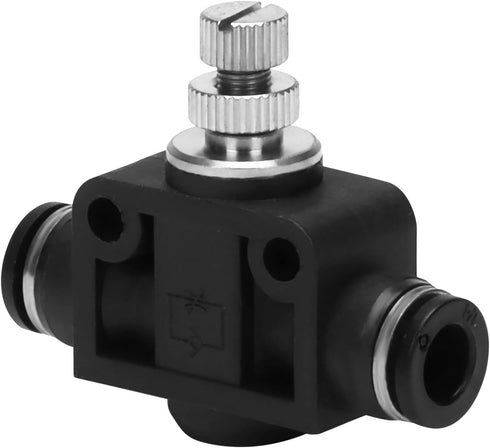

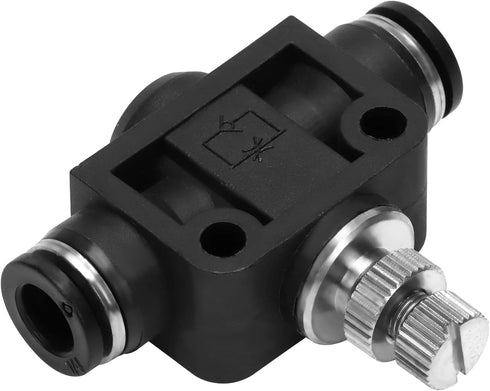

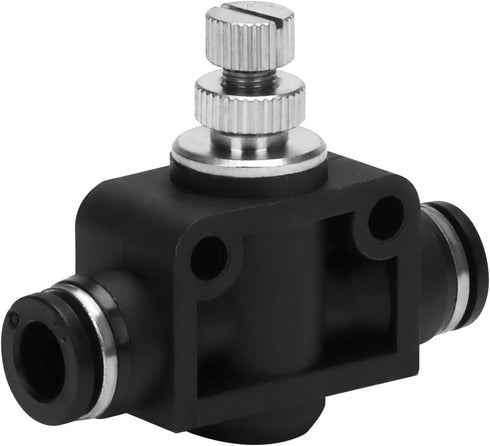

Air Flow Control Valve 1/4" Tube OD x 1/4" Tube OD Straight Union Pneumatic Valve (Pack of 1)

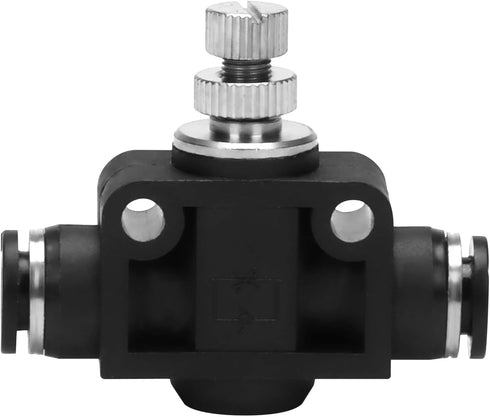

Air Flow Control Valve - 1/4" Tube OD x 1/4" Tube OD Straight Union Pneumatic Push to Connect Speed Regulator Valve (Pack of 1)

Air Flow Control Valve 1/4" Tube OD x 1/4" Tube OD Straight Union Pneumatic Valve (Pack of 1)

Air flow control valve is designed to control the rate of the airflow, convenient one touch fittings provide instant tubing connections, elliptical release rings help to connect the tube easily by manual, no special tools required, narrow space is also suitable with the push. Pneumatic Push is widely used in industries automatic production equipment like machinery, electronics, automobile, packaging and medical. Plastic Push connector is available in various styles and models . Each model to serve its purpose. All models of push lock fittings are designed to suit your pneumatic piping needs perfectly. Speed control valve is on the basis of throttle valve working principle, and added a set of pressure compensation device in the internal structure of the valve, improve the pressure loss after throttling, make the pressure of the fluid after throttle is basically equal to the pressure before throttle, and reduce the heat of the fluid. CAUTIONS: 1.Please do not use it for purposes other than fluids. 2.Please do not exceed the maximum use pressure when using. 3.After the pipe is connected and installed, pull the pipe to make sure that the pipe cannot pull out the joint. 4.Do not use outside the service temperature range to prevent deformation of the sealing material and easy leakage. 5.Do not use it in places where metal powder or sand dust is mixed, such as adhesion of other materials may cause poor work or leakage.

Key Features

• ✅ Air flow control valve size: 1/4 inch to 1/4 inch; material: plastic-stainless steel
• ✅ Push fitting valve working medium: compressed air, vacuum ( not other liquid); working pressure: 0-150 PSI/ 0-9.9kgf/cm2 (0-990kpa)
• ✅ Quick connect fittings valve negative pressure: -29.5 in Hg/ -750mm Hg; working temperature: 32-140 / 0-60 ; application of air tube: polyurethane and nylon tube
• ✅ Speed controllers are easy to install, flexible and space-saving, 360-degree rotate freely, release rings adopt ellipse design, which can be removed conveniently
• ✅ Plastic push features: high pressure resistant and non tripping, all taper pipe threads are paint teflon leakage-proof rubber, offering good seal property; seal O-ring: NBR; lock claw: stainless steel
