Amana Tool - 46315 Solid Carbide Spiral Plunge 1/4 Dia x 1" 4 Shank Up-Cut

Amana Tool - 46315 Solid Carbide Spiral Plunge 1/4 Dia x 1" 4 Shank Up-Cut

Amana Tool - 46315 Solid Carbide Spiral Plunge 1/4 Dia x 1" 4 Shank Up-Cut

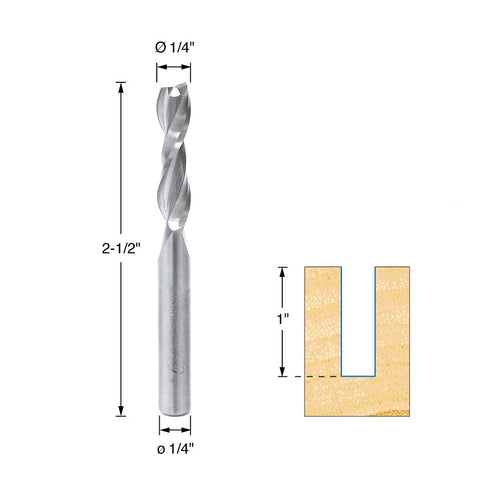

Spiral-flute bits combine a shearing action in cutting with an auguring action in chip clearance. The shearing action yields an especially clean accurate cut while the auguring action clears chips from the cut. The ‘Up-cut’ shears from the bottom up pulling chips from the bottom up thus allowing deeper penetration with less stress on the tool. An excellent choice for Mortising. Special unique carbide grade increased clearance geometry and razor-sharp cutting edges with polished flutes provide a superior finish and longer tool life especially in abrasive materials. Great for production settings and excellent for creating grooves and dado cuts in particleboard, plywood and laminate. Primarily used on CNC machines and other automatic routers. Can be used with handheld and table-mounted portable routers, #46315, direction Up-cut, (D) diameter 1/4, (b) Cutting height 1, (D) shank 1/4, overall length (L) 2-1/2, flutes 2, 46315 Solid Carbide spiral plunge 1/4 dia x 1 inch x 1/4 shank Up-cut Since 1972, Amana Tool has been producing router bits and has become the global leader in its field. In fact, the company was the first manufacturer to produce router bits according to the Holz BG German standard for safety and quality. This standard contains rules that determine the structure and quality of the tool's material in order to create the safest environment for the user. From its beginning, Amana Tool has always used the highest quality materials and its tools are produced using unique technologies, a majority of which were developed and built by the company's engineers following decades of testing and experience. For example, Amana Tool uses carbon alloy steel for its router bits that contains vanadium particles. This improves the structural integrity of the steel and prevents corrosion and defects in the internal structure of the material that can lead to cracks and breaks. High-tech machinery processes the carbon alloy steel to manufacture the router bodies in a single clamping. This yields router bits with superior balance, centricity, precision and symmetry. Spiral-flute bits combine a shearing action in cutting with an augering action in chip clearance. The shearing action yields an especially clean, accurate cut, while the augering action clears chips from the cut. The "up-cut" shears from the bottom up, pulling chips from the bottom up, thus allowing deeper penetration with less stress on the tool. An excellent choice for mortising. Great for production settings and excellent for creating grooves and dado cuts in softwood, hardwoods, plywood and composite materials. Primarily used on CNC machines and other automatic routers. Also can be used with hand-held and table-mounted portable routers.

Key Features

• ✅ Direction up-cut
• ✅ (D) diameter 1/4
• ✅ (B) Cutting height 1
• ✅ (D) shank 1/4
• ✅ Overall length (L) 2-1/2
