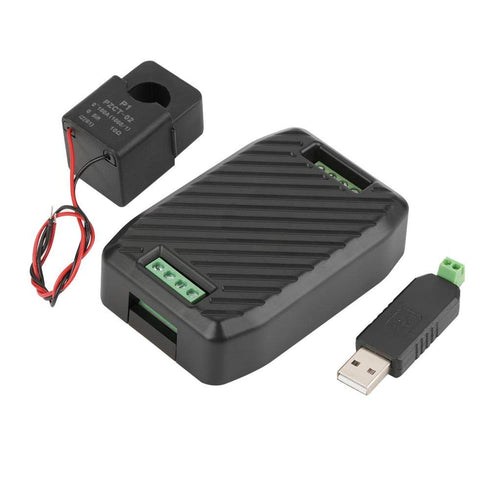

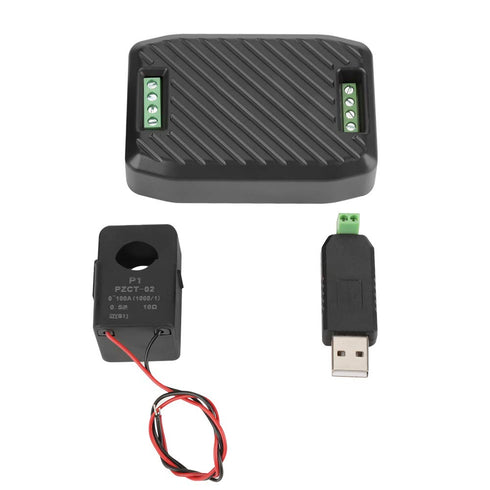

Ammeter Voltmeter, 100A Multi-Function Energy Tester with Open and Close CT and USB to 485 Module

Ammeter Voltmeter, 100A Multi-Function Meter Voltage Current Power Factor Frequency High Test Accuracy Energy Tester(Open and Close CT (100A) + USB to 485 Module)

Ammeter Voltmeter, 100A Multi-Function Energy Tester with Open and Close CT and USB to 485 Module

Specifications: Brand: PEACEFAIR Model: PZEM-016 Type(Optional): Type1: 1*Meter+1* Closed type CT Type2: 1*Meter+ 1*open type CT Type3: 1*Meter+ 1*Closed type CT+ 1*USB to 485 Type4: 1*Meter+ 1*open type CT+ 1*USB to 485 Voltage Measuring range:80~260V Resolution: 0.1V Measurement accuracy: 0.5% Current Measuring range: 0~100A Starting measure current: 0.02A Resolution: 0.001A Measurement accuracy: 0.5% Active power Measuring range: 0~23kW Starting measure power: 0.4W Resolution: 0.1W Display format: When the data is 1000W, it display one decimal, such as: 999.9W When the data is 1000W, it display only integer, such as: 1000W Measurement accuracy: 0.5% Power factor Measuring range: 0.00~1.00 Resolution: 0.01 Measurement accuracy: 1% Frequency Measuring range: 45Hz~65Hz Resolution: 0.1Hz Measurement accuracy: 0.5% Active energy Measuring range: 0~9999.99kWh Resolution: 1Wh Measurement accuracy: 0.5% Display format: When the data is 10kWh, the display unit is Wh(1kWh=1000Wh), such as: 9999Wh When the data is 10kWh, the display unit is kWh, such as: 9999.99kWh Reset energy: use software to reset. Communication interface: RS485 interface Size:90 x 60.5mm / 3.54 x 2.38in Weight: Approx.118~154g Package includes: Type1,Type2,Type3,Type4 (Optional) Type1: 1*Meter+1* Closed type CT Type2: 1*Meter+ 1*open type CT Type3: 1*Meter+ 1*Closed type CT+ 1*USB to 485 Type4: 1*Meter+ 1*open type CT+ 1*USB to 485

Key Features

• ✅ Application: High test accuracy and better compatibility will make it widely used. It has a strong practical measurement function and accurate measurement of physical parameters. The physical layer adopts UART to RS485 communication interface, the baud rate is 9600, the data bit is 8 bits, the stop bit is 1 bit, no parity.
• ✅ Current measurement 100 A: When communicating through software, six measurement parameters can be displayed on the computer. The current measurement range is from 0 to 100A, and the initial measurement current is 0.02A lower. The accuracy is high and can meet the measurement requirements.
• ✅ Multi-function: Multi-function meter can measure voltage, current, power, power, frequency, power factor. The voltage measurement range is 80~260V, the active power measurement range is 0~23kW, the power factor measurement range is 0.00~1.00, the frequency measurement range is 45Hz~65Hz, and the active energy measurement range is 0~9999.99kWh.
• ✅ Alarm indication: over power alarm: active power threshold can be set, when the measured active power exceeds the threshold, an alarm can be issued. The overload alarm function not only protects the instrument from being burnt out, but also serves as a safety against fire.
• ✅ Professional manufacturing: factory unified standards, excellent, professional manufacturing, CNC edge processing and cutting, long service life, all components meet strict production requirements.

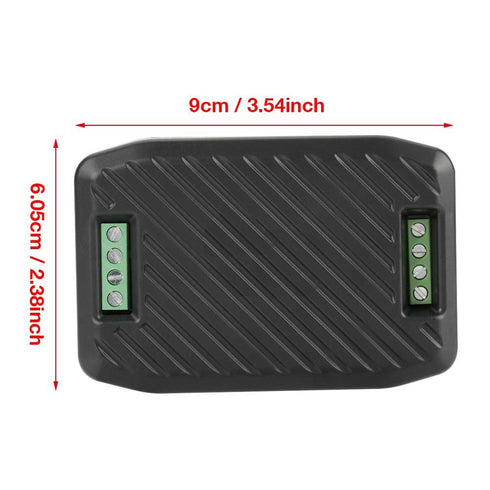

✅ Product Dimensions: 3.54 x 2.38 x 0.91 inches; 3.84 ounces
