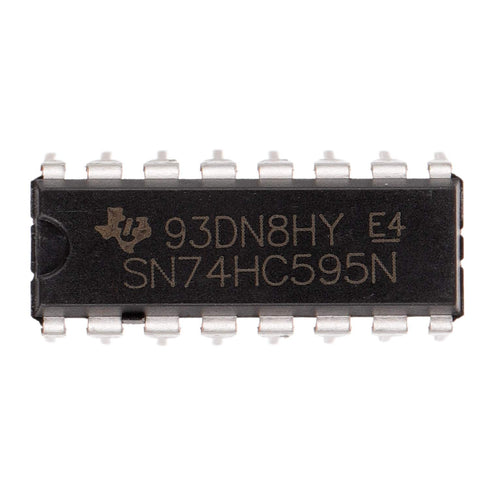

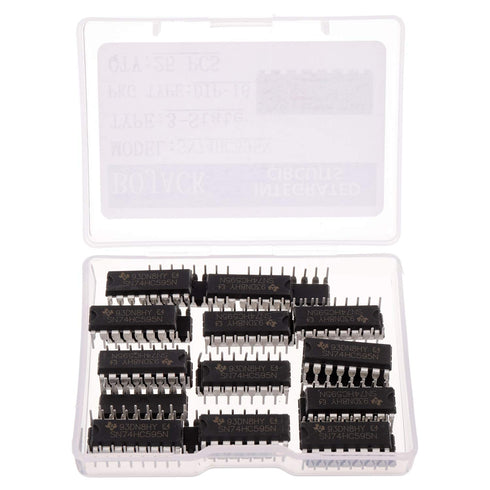

BOJACK SN74HC595N 8-Bit Counter Shift Registers - Integrated Circuits DIP-16 (Pack of 25)

BOJACK SN74HC595N 8-Bit Counter Shift Registers 3-State Output Registers Integrated Circuits DIP-16 (Pack of 25)

BOJACK SN74HC595N 8-Bit Counter Shift Registers - Integrated Circuits DIP-16 (Pack of 25)

BOJACK High Quality 8-Bit 3-State Output Registers SN74HC595N Features: 8-bit serial input, parallel output shift Operating voltage range: 2.0~6.0V High-intensity current tri-state output for up to 15 LSTTL loads Low power consumption maximum Icc: 80µA Typical Tpd: 13 ns Drive current at 5V: ±6 mA Low input current maximum: 1µA Package Type: PDIP-16 The SN74HC595N is an 8-bit serial input, parallel output shift register, the parallel output is a three-state output. On the rising edge of SCK, the serial data is input by the SDL to the internal 8-bit shift register and output by Q7', while the parallel output is the data of the 8-bit shift register stored in the rising edge of LCK. Bit parallel output buffer. When the control signal of the serial data input OE is low, the output value of the parallel output is equal to the value stored by the parallel output buffer.

Key Features

• ✅ BOJACK High Quality 3-State Output Registers
• ✅ MODEL:SN74HC595N
• ✅ Operating voltage range: 2.0~6.0V
• ✅ Low power consumption maximum Icc: 80µA
• ✅ 8-bit serial input, parallel output registers
