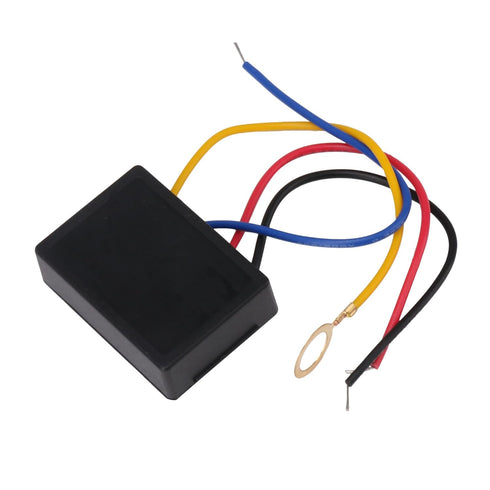

BQLZR DC LED Touch Dimmer Switch Sensor Lamp Accessories, 6-12V with Wiring Diagram for LED Light Sources

BQLZR DC LED Touch Dimmer Switch Sensor Lamp Accesories 6-12V with Wiring Diagram Suitable for LED Light Sources with Medium (Such As Glass, Acrylic, Plastic, Ceramic).

BQLZR DC LED Touch Dimmer Switch Sensor Lamp Accessories, 6-12V with Wiring Diagram for LED Light Sources

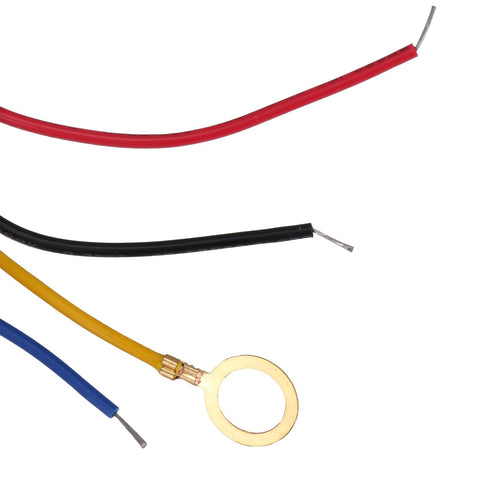

Note: The color of the item may vary slightly due to photography and your own computer High safety performance. It is suitable for the LED which has cover such as Glass, Alec, Plastic, Pottery. No need to find where the switch is in darkness, touch the light body, you can easily switch on or off and adjust the brightness. The red line is connected with the input Live Wire, that is the plug. The black line is the common netural line (respectively connected with the input netural line and the output netural line). The blue line is connected with the output live wire of the light source ,that is the bulb. The yellow line with ground ear is connected with bonding, that is the metal part of the lamp mount. Specifications: Operating voltage: DC 6 to 12V Touch dimming function: When the human body presses and touches for a long time (the touch duration is greater than 550ms), the light can be adjusted steplessly. long press of the touch, the light brightness gradually increases, when the light is released, the light brightness stops at the corresponding brightness at the moment of release, if the long press time exceeds 3 seconds, the light brightness will not change after reaching the maximum brightness; long press the touch again, The brightness of the light gradually decreases, and the brightness of the light stops at the corresponding brightness when the release is released. If the long press time exceeds 3 seconds, the brightness of the light will not change after reaching the minimum brightness. So cycle. Load power: less than or equal 36W Size: 49 x 34 x 15mm or 1.92 x 1.33 x 0.59inch Weight: 20g Package included: 1 x Dimmer Switch

Key Features

• ✅ Touch on and off function: When the touch is clicked (the touch duration is less than 550ms), the on-off control of the light can be realized. Click and touch once, the light is on; click and touch again, the light is off. so cycle
• ✅ Touch dimming function: When long press the touch (touch duration is greater than 550ms), it can realize the stepless brightness adjustment of the light. A long press touch, the brightness of the light gradually increases, and the brightness of the light stops at the brightness corresponding to the moment of release when you release it.
• ✅ If you press and hold for more than 3 seconds, the brightness of the light will not change after reaching the maximum brightness; if you press and touch again, the brightness of the light will gradually decrease. 3 seconds, the light brightness will not change after reaching the minimum brightness. so cycle.

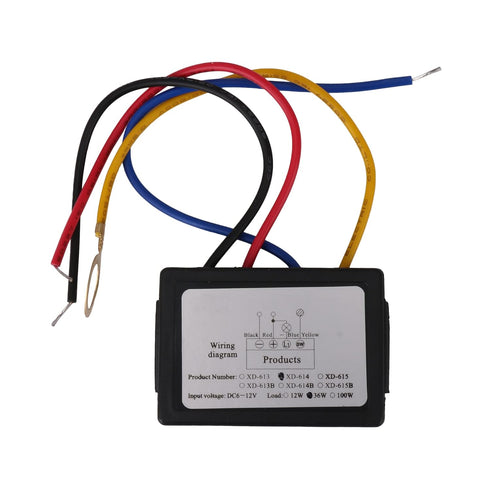

• ✅ Wiring method: The red wire and the black wire are connected to the "+ -" 6V-12V input, and the red wire and the blue wire are connected to the load. Yellow touch point.

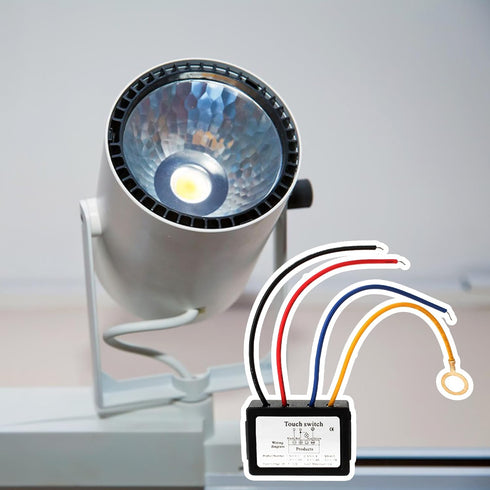

• ✅ It can ensure the safe use of electricity for users, and has a surge absorber, which can effectively prevent the outside world and interference to the outside world. Suitable for LED light sources with medium (such as glass, acrylic, plastic, ceramic, etc.).
• ✅ note?The switch cannot be connected to a large-area metal body, but can only be connected to a small-area metal sheet (no more than the size of a 1-yuan coin) or the back of glass, acrylic, plastic, etc. (within a thickness of 6mm).
• ✅ There are two types of this product, without memory function and with memory function (memory function: when the light is dimmed to a certain brightness, turn off the light and then turn on the light to memorize the brightness of the last light. Note: the memory function is invalid after the power is turned off. )

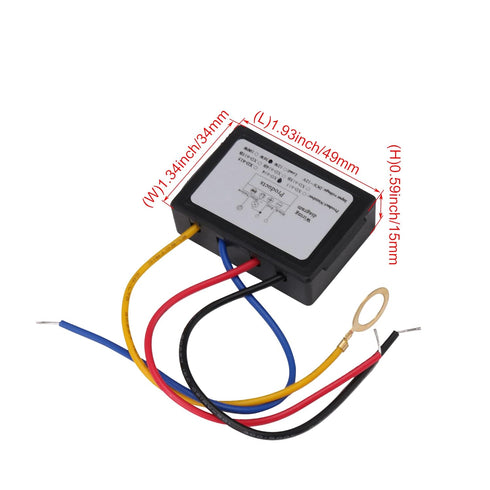

✅ Product Dimensions: 1.93 x 1.34 x 0.59 inches; 0.32 ounces
