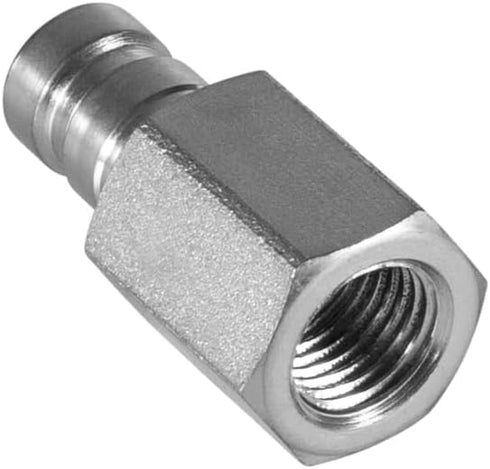

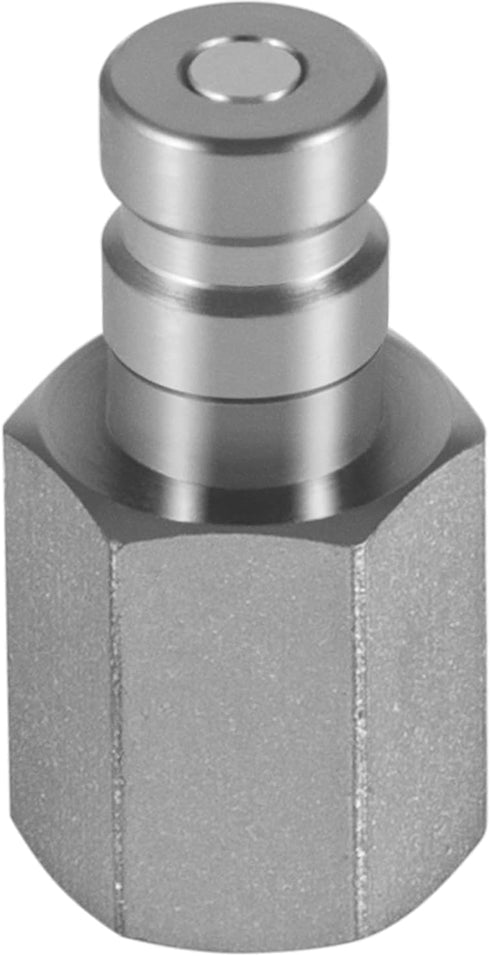

Camoo PD342 Series Steel Test Port and Diagnostic Equipment Quick Nipple with Female Pipe Thread

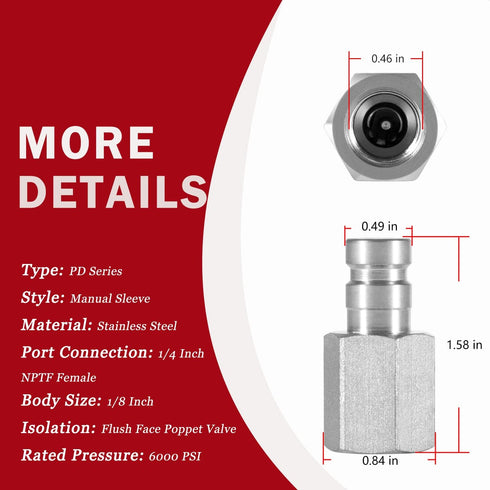

Camoo PD342 Series PD Steel Test Port and Diagnostic Equipment Quick Nipple with Female Pipe Thread, 1/8" Body Size, 1/4"-18 NPTF Thread Size, 1.63" Length

Camoo PD342 Series Steel Test Port and Diagnostic Equipment Quick Nipple with Female Pipe Thread

Item Information PD Series Nipples (diagnostic test port connectors) up to 6,000 psi, connect with PD Series Couplers. These push to connect quick couplings provide easy connection for mechanical gauges or specialized diagnostic equipment including SensoControl meters and accessories. PD Series Nipples allow test instruments, gauges, transducers, and flow sensors to be quickly and easily connected to system test ports. Test port Nipples can be permanently mounted on equipment at critical test point locations. Couplers and nipples are available in 1/8"" size with a rated pressure of 6,000 psi when connected. PD Nipples meet or exceed SAE J1502 / ISO 15171-1 design and performance specifications. Technical Characteristics: Size: 1/8"" Materials: Steel, Stainless Steel, Brass Port Ends: Female NPTF, Female UNF, Male NPTF, Male Metric, Male UNF, Triple-Loc, Seal-Loc, Bulkhead Seal Options: Nitrile, Ethylene Propylene, Fluorcarbon, Neoprene Markets: Industrial Construction Molding Testing Maintenance and Repair, MRO Features/Benefits: Steel nipples are machined from high tensile strength material to be durable with continuous operating pressures up to 6000 psi Flush face valves minimize air inclusion and spillage SAE J1502 / ISO 15171-1 conformance provides global interchangeability with other test point couplings manufactured to the same specifications A variety of end fitting configurations, including bulkhead options, provide versatility for system installation and panel mounting Compatible with Parker's SensoControl diagnostic equipment Suitable for use with hydraulic or pneumatic systems Applications: Mobile equipment engines Cooling systems Industrial hydraulic systems Fluid or air system maintenance and troubleshooting System performance optimization System validation

Key Features

• ✅ ?APPLICATION?Compatible with Parker's SensoControl diagnostic equipment. Suitable for use with hydraulic or pneumatic systems.

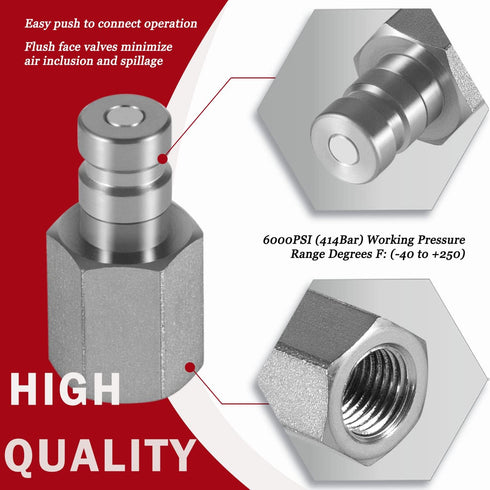

• ✅ ?HIGH PERFORMANCE?Test port Nipples can be permanently mounted on equipment at critical test point locations. Specially designed to easily and properly connect for mechanical gauges or specialized diagnostic equipment, flush-face poppet valves minimize air inclusion and spillage, prevents uncoupled leakage.
• ✅ ?EASY INSTALLATION?Easy push to connect operation, poppet valves open automatically when coupled, within rated working pressure, to keep the flow expedite.
• ✅ ?SUPERIOR MATERIAL?Steel nipples are machined from high tensile strength material to be durable with continuous operating pressures up to 6000 psi. PD Nipples meet or exceed SAE J1502 / ISO 15171-1 design and performance specifications.
• ✅ ?100% SATISFACTION GUARANTEE?If you're not 100% satisfied with our items, simply return them for a full refund in 30 days. Support 12 months Warranty. Professional & Sincere Service allows you to take no risks to purchase in Camoo!

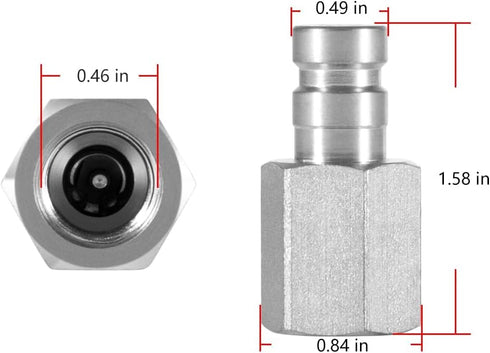

✅ Product Dimensions: 3.94 x 3.94 x 0.75 inches
