CFNXKTWBR 1pc RS-380-4028 6V-12V 25000RPM 28mm High Speed Power Large Mini Electric Motor DIY Toy Car Boat Model

1pc RS-380-4028 6V-12V 25000RPM High Speed Power Large Mini 28mm Electric Motor DIY Toy Car Boat Model

CFNXKTWBR 1pc RS-380-4028 6V-12V 25000RPM 28mm High Speed Power Large Mini Electric Motor DIY Toy Car Boat Model

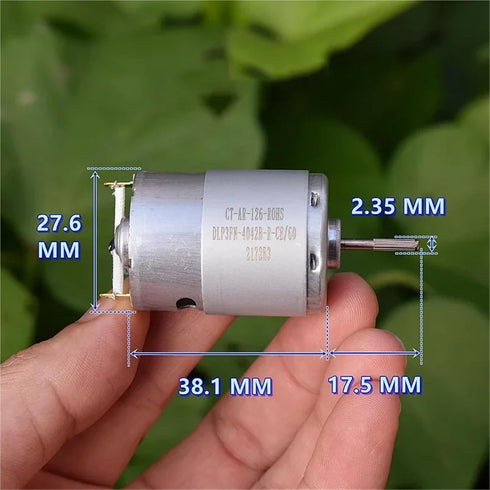

Permanent Magnet Motors Specification: High speed 380 motor, model 380-4028, applicable voltage is DC6V-12V, corresponding speed is 12500-25000 rpm, high-power and high aircraft model, car model, model power toy motor. There is a capacitor at the back of the motor (which has not been soldered yet), so when connecting the motor to the power supply, it is necessary to recognize the positive and negative poles. One side with a red dot is connected to the positive pole, and the other side is connected to the negative pole. The direction of rotation of the motor is CW. If it needs to be reversed, please remove the capacitor first, then reverse the positive and negative poles of the power supply, and the motor will rotate in the opposite direction. 1.Model: RS-380-4028 2.Motor body diameter: 27.6mm 3.Motor body height: 38.1mm 4.Output shaft diameter: 2.35mm (Knurled shaft) 5.Output shaft length: 17.5mm (include step height) 6.Weight: 80g 7.Suitable voltage: 6V-12V 8.Test data: Voltage:6.0V No-load current:0.45A No-load speed:12500RPM Voltage:12.0V No-load current:0.76A No-load speed:25000RPM 9.Note: The higher the voltage, the greater the motor power, the faster the speed, and the greater the current. Of course, the motor is also relatively more prone to overheating. This is a high-power density 380 motor, and heating is a normal phenomenon. Please pay attention to creating a good heat dissipation environment. 10.Tips: This is a high-power 380 motor, usually powered by a high-power lithium battery. If you want to switch to a stable power supply, please note that the current of the power supply must be at least 5 A or more. If the current is too small, the motor's power and cannot function properly, and even cannot be started. ========================= Package List: Motor x 1PC ========== Hign-concerned Chemical : None Usage : Home Appliance Model Number : Mini 380 Motor Construction : Permanent Magnet Type : Micro Motor Protect Feature : Explosion-proof Commutation : Brush Efficiency : IE 1 Model number : RS-380-4028 Motor size : 27.6mm*38.1mm Output shaft diameter : 2.35mm (Knurled shaft) Suitable voltage : 6V-12V No-load speed : 12500RPM-25000RPM

Brand: CFNXKTWBR

tools, 12v, toy, mini, large mini, power, diy toy, 4028 12v, home, model tools, tools home, 25000rpm Tools & Home Improvement Electrical Electric Motors Permanent Magnet Motors

Key Features

• ✅ Permanent Magnet Motors
• ✅ 1pc RS-380-4028 6V-12V 25000RPM High Speed Power Large Mini 28mm Electric Motor DIY Toy Car Boat Model
