COREBAY 3-Speed, Dimmer, FAN-53T 2AAZPFAN-53T FAN-11T KUJCE9103 UC7030T Universal Ceiling Fan Remote Control Kit

Universal Ceiling Fan Remote Control Kit, Replacement for Hunter/Harbor Breeze/Hampton Bay/Honeywell/Litex, with Receiver, 3-Speed, Light Dimmer, Replace FAN-53T 2AAZPFAN-53T FAN-11T KUJCE9103 UC7030T

COREBAY 3-Speed, Dimmer, FAN-53T 2AAZPFAN-53T FAN-11T KUJCE9103 UC7030T Universal Ceiling Fan Remote Control Kit

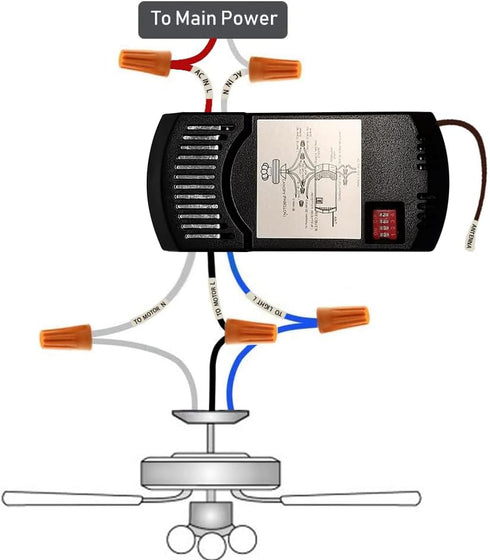

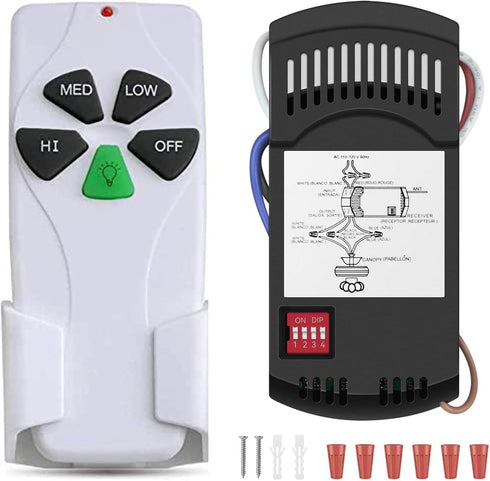

About us Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Red receiver wireAC IN L)..............Red supply wire White receiver wire (AC IN N)...........White supply wire White receiver wire (TO MOTOR N)......White com(FAN/LIGHT N) wire Black receiver wire (TO MOTOR L)......Black fan wire Blue receiver wire (TO LIGHT L).....Blue light wire ATTENTION: Wire color maybe different in very old fans. 1. Make sure that the four dip switch modes of the new remote control are the same as the four dip switch modes of the new receiver. 2. Replace the original receiver with the new receiver and install the battery for the new remote control.The new remote control will work.The entire installation process can be completed in 15 minutes. Tips:Remote control's 4 DIP switches are in the battery compartment(they are kinda hidden behind the slot for the battery itself). 1 x Remote Control 1 x Receiver 1 x Wall Mount 6 x Wiring Cap 1 x User Manual

Brand: COREBAY

replace, harbor breeze, light dimmer, 2aazpfan 53t, fan, receiver, 11t kujce9103, 53t 2aazpfan, control, fans ceiling, fan remote, kujce9103 uc7030t Tools & Home Improvement Lighting & Ceiling Fans Ceiling Fans & Accessories Accessories Remote Controls

Key Features

• Universal Ceiling Fan Remote Replacement This universal ceiling fan remote control kit works all regular 3-Speed AC ceiling fans. It is specifically made for Hunter, Hampton Bay, Harbor Breeze, Honeywell, Westinghouse, Home Decorators Collection, Litex, Monte Carlo,and other brands. This universal fan remote kit is nice for replacement or upgrade your ceiling fans. Compatible with most downrod style fans, not recommended for use with hugger style fans.
• Ceiling Fan Receiver Universal This ceiling fan remote control kit have a durable receiver, the rated power of the receiver is 240W, which far beyond the general carrying power capacity, it allows you to access more light bulbs, greatly increase the life of the receiver. This receiver uses 2 upgraded relays, with the new component the dimming function of the relay is better than the thyristor.
• Remote Control with Light Dimmer 3-Speed (High/Medium/Low) and OFF for ceiling fan.Green button for light.Green button on the remote control can be used to turn the lights on and off and dimmable. In the case of dimmable lights, press and hold the green button to adjust the brightness of the fan light. The light dimmer works well with some dimmable CFL/LED lights and all incandescent lamps. Most LED/CFL lights are non-dimmable, and the remote only control ON/OFF function in this case.

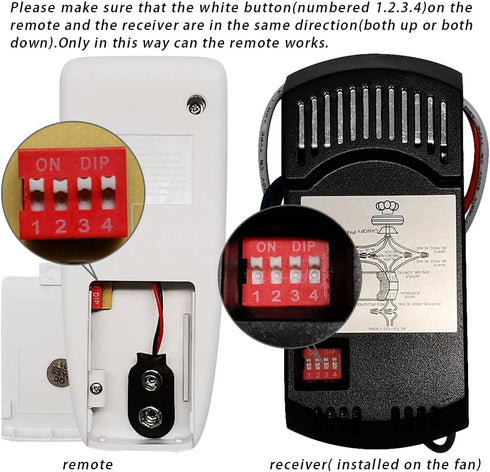

• Easy to Install and UseThe receiver wires are labelled, and the wires all have the correct color codes. Matching dip switch for the transmitter and receiver: Look inside the old remote with the battery cover off. There is a series of " DIP" switches(4) with a pen, slide the switches in the new remote to match the same pattern as the old remote. Replace the battery in the new remote and things should work well.
• Note Please NOTE that this remote does not have the Reverse button. If your ceiling fan have PULL CHAINS SWITCH, before using the remote control, use the PULL CHAINS SWITCH to turn the wind speed to maximum and turn the fan light on. Only in this way can the PULL CHAINS SWITCH and remote control be used together. The remote control requires a 9V battery for work(NOT INCLUDED).

Product Details

• Model Number: 53T+28R
• Color: 53T/28R(Black)
