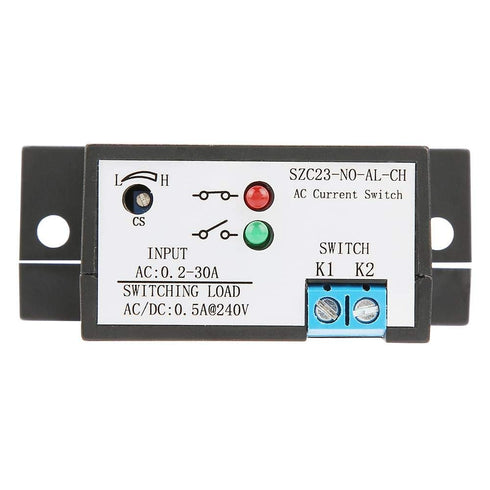

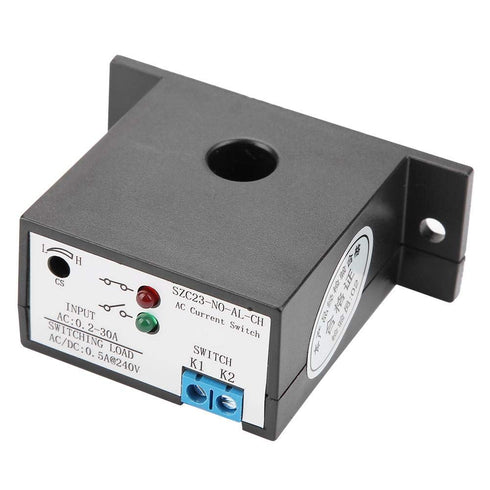

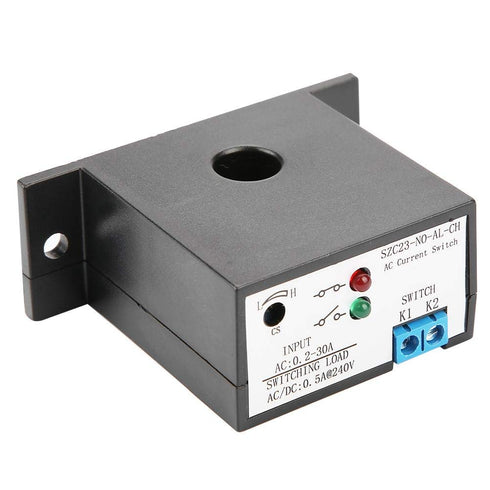

Current Sensing Switch Normally Open, Adjustable AC 0.2-30A SZC23-NO-AL-CH

Current Sensing Switch Normally Open Current Sensing Switch Adjustable AC 0.2-30A SZC23-NO-AL-CH, JSTXSZ

Current Sensing Switch Normally Open, Adjustable AC 0.2-30A SZC23-NO-AL-CH

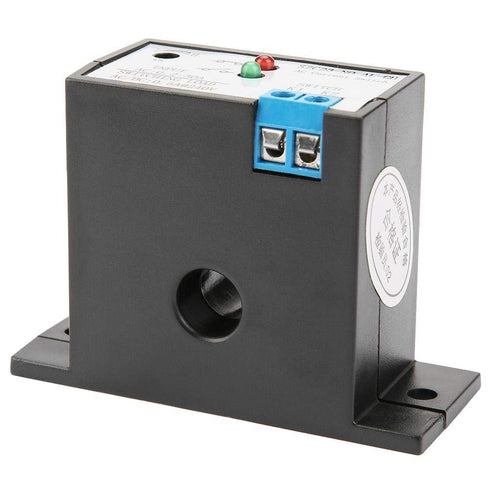

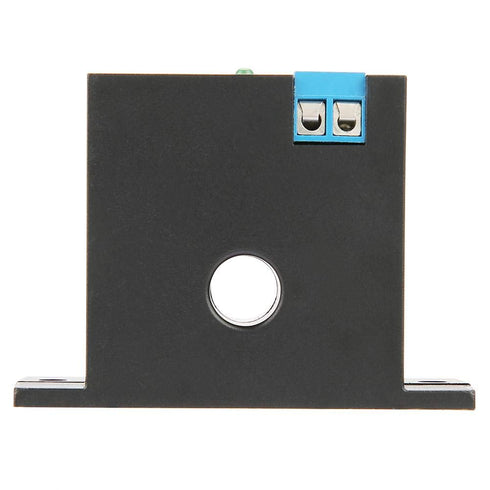

SZC23 series AC current sensing switch is designed and manufactured to solve the AC current monitoring.It uses the principle of mutual inductance to sense the AC straight-through current,isolate the AC current,and output a normally open or normally closed switching to directly control various automation industrial equipment,such as flash,buzzer,relay,single-chip or other power load equipment.Compared with traditional mutual inductors,thermal protectors and other devices,using this device can not only get more accurate and more timely control,but can also greatly simplify the design and reduce costs Features: 1.Straight-through structure design,isolation withstand voltage up to 2000V 2.Hysteresis is less than 1% and can be used under strong magnetic conditions 3.The outer casing is made of self-extinguishing material ABS 4.Suitable for AC current measurement and monitoring,AC motor overload ,electronic switch of automatic control system and so on Specification: Model:SZC23-NO-AL-CH Power supply:Not required Rated load:=0.5A@240V AC/DC Input current:0.2-30A AC Switch on minimum:0.5±0.2A Maximum overload:100% Leakage current:=0.1A Accuracy:1% Hysteresis:=1% Response time:=200ms Repeatability:100% Working temperature:-20~60? Waterproof:IP30 Dimensions:65×25×47mm/2.56×0.98×1.85in Hole diameter:10mm /0.4in Package weight:Approx.56g/2.0oz Package list: 1×Current Sensing Switch

Key Features

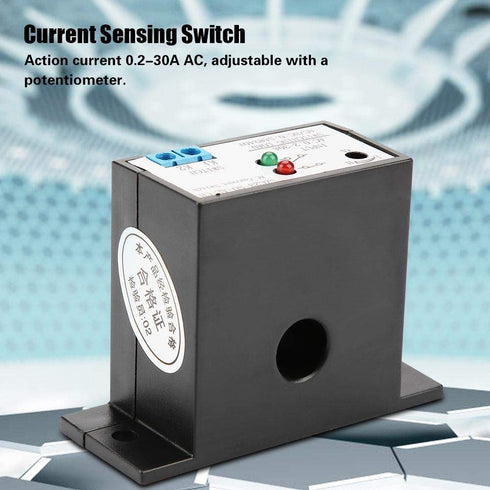

• ✅ The AC current sensing switch easily and accurately monitors the action current of 0.2-30A AC. With the built-in potentiometer, the user can easily set the desired action current.
• ✅ The high power MOS tube non- electronic switch ensures efficient non- switching operation. It can handle countless open and close cycles an unlimited number of times without performance degradation and has a time of milliseconds.

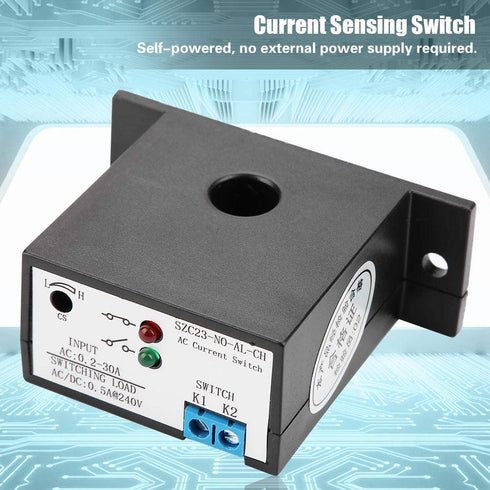

• ✅ Unlike other current sensing switches on the market, this switch is self-powered and requires no additional wiring or power supply to ensure reliable operation.

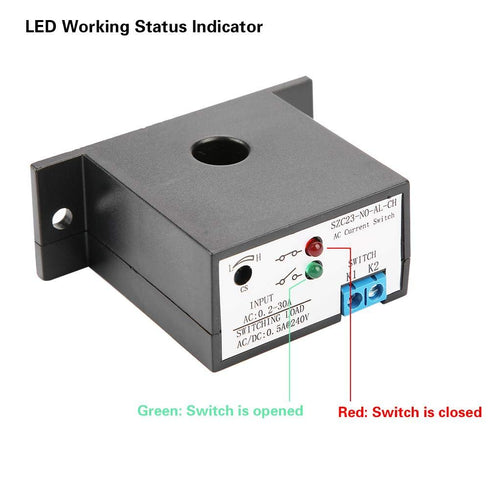

• ✅ LED indicators provide a convenient visual indication of the switch's operating status, allowing users to easily monitor and troubleshoot any faults.
• ✅ It can withstand harsh industrial environments. It is suitable for a wide range of applications including AC current measurement and monitoring, AC motor overload and electronic switch control systems.

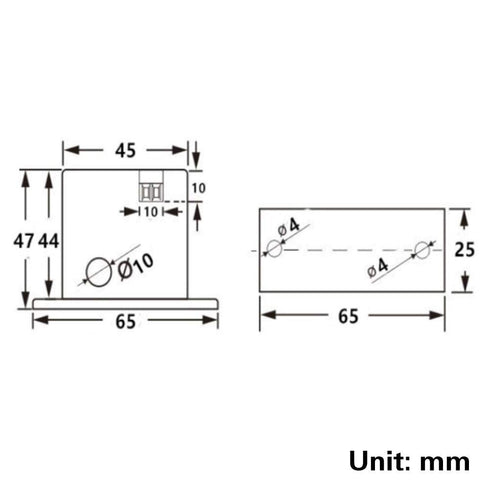

✅ Product Dimensions: 2.56 x 1.97 x 0.98 inches; 2.12 ounces
