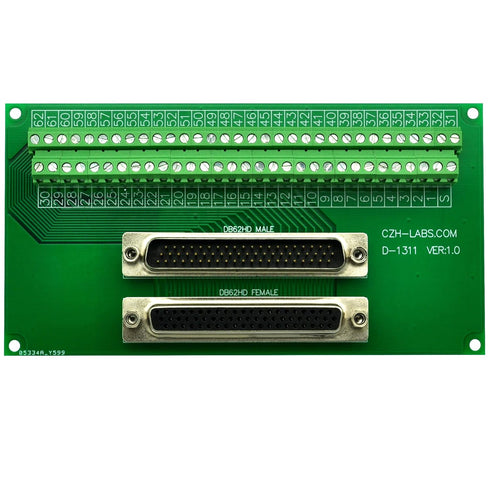

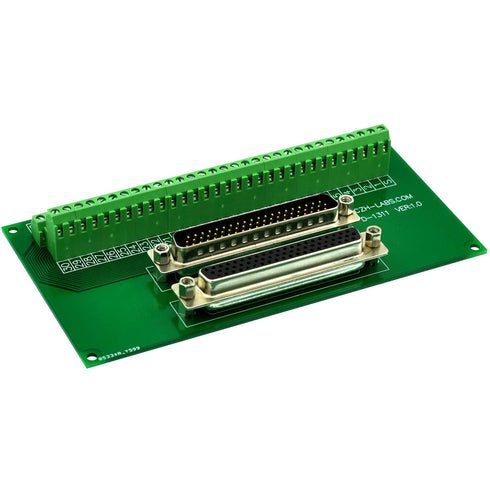

CZH-LABS DB62HD DSUB Male/Female Header Breakout Board, D-SUB Breakout Moudle.
SKU: PGABL2661048
VENDOR: CZH-LABS
You Save: $6.16 (16%)
Hurry! Only 0 Left in Stock!
Free Shipping Across the United States
All orders within the United States qualify for 100% free shipping.
Fast Processing & Dispatch
All orders are shipped within 1 business day after purchase.
30-Day Free Returns
Not satisfied? You can return your order for free within 30 days after delivery.
DSUB DB62HD Male/Female Header Breakout Board, D-SUB Breakout Moudle.
CZH-LABS DB62HD DSUB Male/Female Header Breakout Board, D-SUB Breakout Moudle.
1, Standard DB62HD Male/Female header connectors. Male header, female header and screw terminal 1:1:1 connects for per line. 2, Rated voltage: 60V. Rated current: 1A / per pin. Operating Temperature: -20C to 50C 3, Terminal block: Pitch 3.81mm/0.15" miniaturization screw terminal block. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass. 4, FR-4 fiber glass PCB, dual copper layers.
Brand: CZH-LABS
female, industrial scientific, dsub, db62hd, scientific, breakout, board sub, breakout board, header, db62hd male, sub breakout, connecting Industrial & Scientific Industrial Electrical Wiring & Connecting Terminals Screw
Key Features

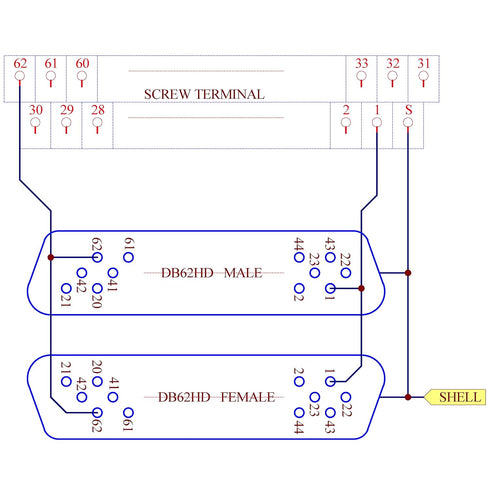

- ✓ Standard DB62HD Male/Female header connectors. Male header, female header and screw terminal 1:1:1 connects for per line.
- ✓ Rated voltage: 60V. Rated current: 1A / per pin. Operating Temperature: -20C to 50C
- ✓ Terminal block: Pitch 3.81mm/0.15" miniaturization screw terminal block. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass.
- ✓ FR-4 fiber glass PCB, dual copper layers.
Product Details
- ✓ Item Weight: 0.1 Kilograms
- ✓ Material Type: Brass
