DC 2 Pole Miniature Circuit Breaker, 500V 50Amp, Thermal Magnetic Trip for Solar DC System

DC 2 Pole Miniature Circuit Breaker, 500V 50Amp, Thermal Magnetic Trip, 6KA Breaking Capacity MCB for Solar DC System, Ship, Solar Power Sysetm.

DC 2 Pole Miniature Circuit Breaker, 500V 50Amp, Thermal Magnetic Trip for Solar DC System

Key Features

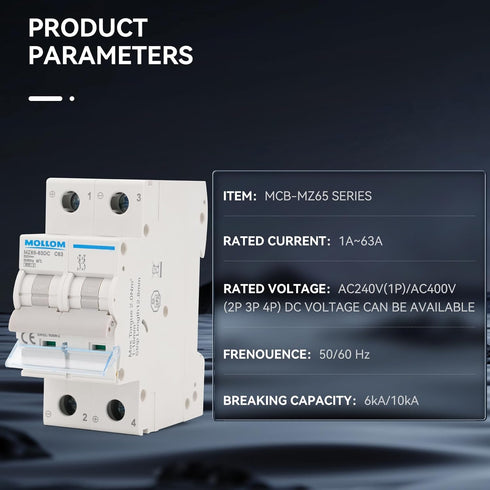

• ✅ Specification Polos: 2P, Voltage: DC 500V, Current: 50A, Breaking Capacity up to 6KA, Breaking Time 1S.
• ✅ Strong Protection Features The circuit breaker effectively protects 500V DC circuits from overload and short circuit damage. When the current exceeds 5 times the rated value, the circuit breaker will trip after 8 seconds; when the current exceeds 10 times the rated value, the circuit breaker will trip immediately, preventing damage to electrical appliances. The trip time is only 0.01 seconds, ensuring circuit safety and reliability.
• ✅ High-Quality Materials Made with high-precision molds, high closure accuracy; full copper contact pieces with conductivity 10 times higher than pure brass. The switch can handle up to 6000 on-off cycles, which is twice that of older models.
• ✅ Detail Improvements: Larger screw heads for easier and safer wire connections; 12 built-in arc extinguishing plates, 3 more than older models, effectively preventing flashover and arc; stronger outer shell, ensuring stability and preventing disassembly during tripping.

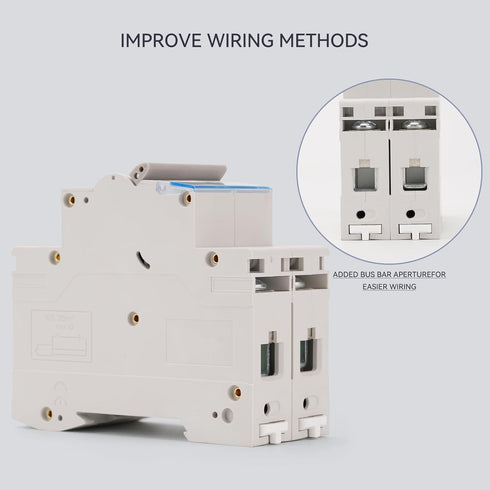

• ✅ Key Selling Points: Supports screw or terminal block connection; with a high breaking capacity of 6KA; unique heat dissipation system for stable operation over long periods; new latch design for easier operation. The scene display design allows for easy identification.

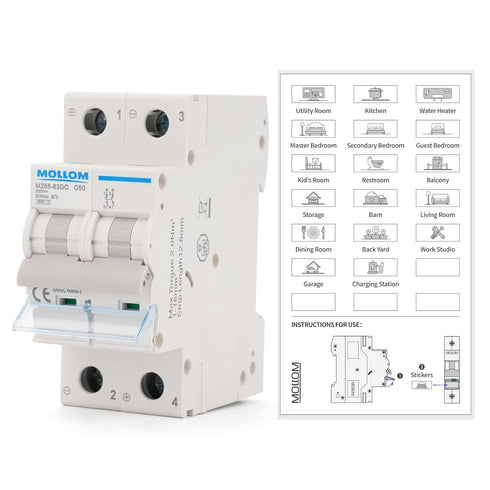

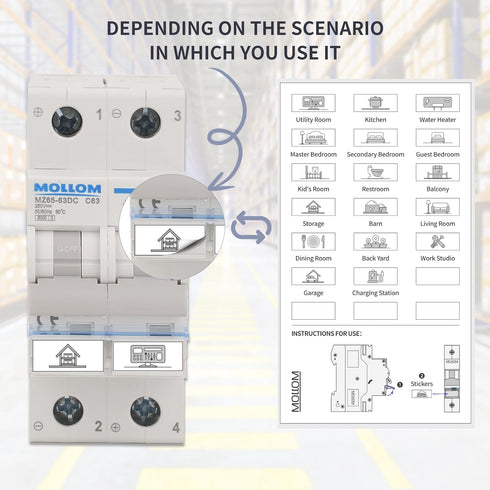

• ✅ Unique Display Column Design An additional display area allows you to attach scene stickers for easy identification of the room or area controlled by each circuit breaker, avoiding problems caused by incorrect switching.

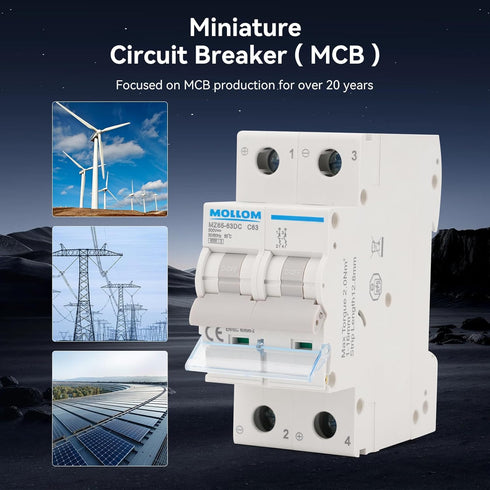

• ✅ Applications Undergone three safety tests and certified to meet all safety standards, we always prioritize customer safety. Used in DC power system, ship electric power system, solar photovoltaic system, or other DC system.

✅ Product Dimensions: 3 x 1.4 x 3.3 inches; 7.36 ounces
