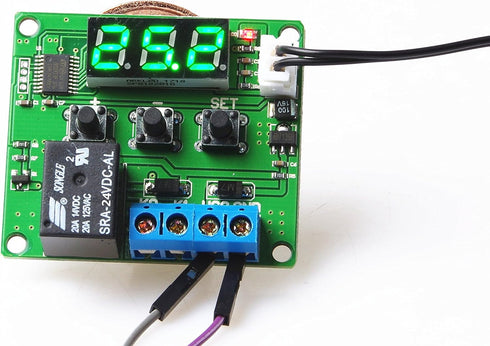

DC 24V Digital Display Temperature Control, Precision Controller for Miniature Thermal Control Plate

DC 24V Green -4? to + 212? Digital Display Temperature Control, Precision Temperature Controller, Temperature Control switches, Miniature Thermal Control Plate (DC 24V, Green)

DC 24V Digital Display Temperature Control, Precision Controller for Miniature Thermal Control Plate

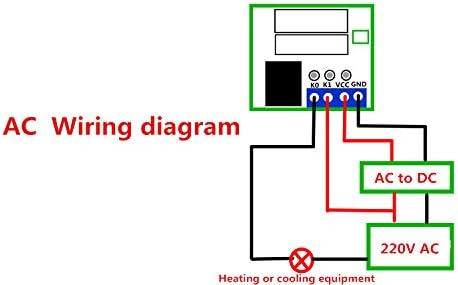

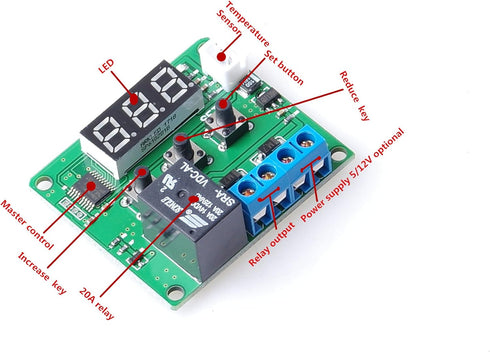

Circuit connection: Connect the power supply and load with reference to the circuit diagram. At this time, the digital tube will display the actual measured temperature value. If the temperature sensor is missing or damaged, the digital tube will display "---". The buyer must check whether the temperature sensor is installed before using it. The temperature control output is a 10A relay, which can meet various high-power loads. Please ensure that the wiring is correct. Indicator and digital tube status description: Indicator light: Off means the relay is off, and always on means the relay is closed Digital tube: "---" is displayed. 1. Check the temperature sensor is missing or damaged. 2. High temperature protection in heating mode 3. Low temperature protection in cooling mode. The relay in the protection mode is automatically opened. Use of keys: There are three keys on the thermostat panel, key + key-SET key SET Button +: fast accumulation of values Button-: Quickly decrease the value Set key SET: switching of three-layer interface, measured temperature interface, temperature setting interface, parameter setting interface Press SET briefly, the digital tube flashes and enters the temperature setting interface. At this time, press the + button or the-button to set the temperature. After setting, press SET again to save the data or wait for 5s to save the data automatically. Press and hold SET to enter the parameter setting interface. P0-P4 are corresponding parameter setting items. In the parameter setting menu, P0-P4 can be switched by pressing the key + or-. When you want to modify a certain parameter, you can switch to a certain item, short press SET to enter, and then press the button to add or subtract. After the setting is completed, press and hold SET to save the data, or wait for 6s to automatically save the data.

Key Features

• ✅ Digital display is Fahrenheit temperature , Precise temperature control, high sensitivity, suitable for any occasion required temperature.
• ✅ Temperature control range: -4 ° F to + 212 ° F; Resolution: temperature range -3.9 ° F to 99.9 ° F is 0.1 ° F, other temperature ranges 1 ° F.minimum return difference: 0.1 ° F. Refresh frequency: about 0.5S.
• ✅ Power Supply: DC 5V 12V 24V;Load: 1ch 10A relay;

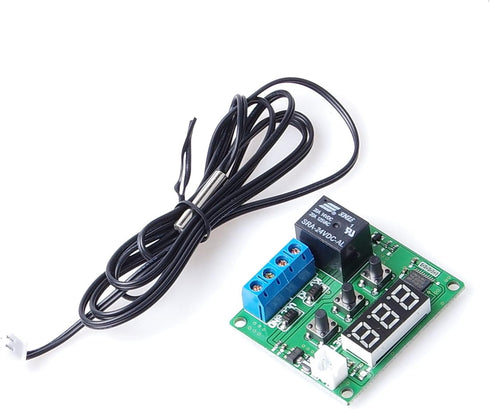

• ✅ Measuring input: 1 meter NTC (10K 0.5%) waterproof metal sensors. Environmental requirements: -10 ~ 60 ? Humidity 20% -75% Power consumption: Quiescent Current: = <35mA pull current: = <65mA Size:50 * 40 * 16 mm / 1.98 * 1.58 * 0.63 in(L * W * H) Weight:22g / 0.77oz.
• ✅ The output of the temperature controller is 10A relay, which can meet all kinds of high power load. Precision temperature controller, to meet the extreme demands. Sophisticated manufacturing technology, reliable quality.
